Package:Yes
Channels:2 (2.0)
Model Number:E10A
Maximum Power Per Channel:45W
Origin:Mainland China
Certification:CE
Feature:
- Portable HIFI Digital Bluetooth and AUX Audio Power Amplifier.
- Support TF Card, U-Disk, AUX, MP3 play and BT Connection.
- With Treble, Bass, and Volume control, Very easy to use.
- Low distortion supplies clearer, stronger and more powerful sound.
- With Remote control, Easy to adjust volume. Channel 2.0 output.
- Support DC/AC power in, Suitable for Home and Car.
- Support FM Radio (But not professional, pls understand).
Specification:
Type: Digital HIFI Power Amplifier
Support: Bluetooth/SD/TF/USB/AUX/RCA Input
Function: Power AMP/Music Player/FM Radio
AUX Input: 3.5mm Audio at front
RCA Input: PC /MP3 /DVD /CD etc at rear
Audio output: L/R 2.0 Channel
Bluetooth Version: 5.0
USB Version: 2.0
Output Parameter:
Max Power: 45W+45W (RMS)
Rated Power: 15W+15W
Rated Impedance: 4-8Ω
Distortion: 0.02%
S/N Rate: 92db
Power Supply: DC 12V (>=3A) / AC 110V/220V
Remote Power: 1x CR2025 Battery(Not Included !)
How to match the AMP and Speaker:
1. The impedance of the amplifier is the same as the speaker, can not be too far apart.
2. The power of the amplifier is 1.5 times than speaker to obtain a enough sense of strength.
● If the output impedance of the amplifier requires 4-8Ω, the impedance of your speaker should also be 4~8Ω, the sound of 4 ohms is louder, and the 8 ohms is smaller;
● If the output power of the amplifier is 35W, the speaker should be around 20W. For the 1.0 channel, the speaker power is 20-30W, for the 2.0 channel, it is 2x(20-30)W.
● If the amplifier is full frequency, the wider the frequency response of the speaker, the better, such as 100~18KHZ.
TIPS:
● The speakers must be based on impedance and power, regardless of dimensions.
● If the sound is intermittent or hoarse during increasing the volume, it means the speaker and amplifier are not matched, Pls use small sound or change a suitable speaker.
● Pls make sure that the required power supply is used and working properly.
NOTE:
1. If you want to use the DC Power, Pls buy the power adapter by yourself.
2. Do not create a folder in the U-disk or TF-card, but directly put the MP3 file in it.
Package Included:

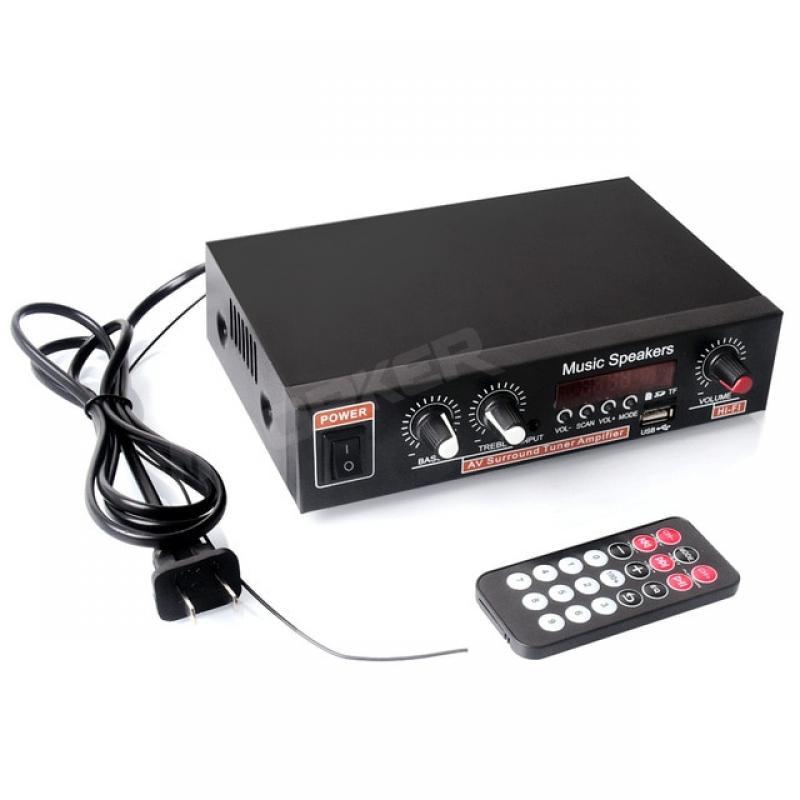

1x Audio Amplifier
1x Remote (Battery NOT included!)
