Package:Yes
Channels:2 (2.0)
Model Number:C50L
Maximum Power Per Channel:50W
Origin:Mainland China
Certification:NONE
Unit Price:
C15H AP3016D 20W*2 Bluetooth 5.0 + AUX = $ 9
C50L AP3050D 50W*2 Bluetooth 5.0+AUX = $ 9.5
C100L AP3050D 100W*2 Bluetooth 5.0+AUX= $ 13
C50H TPA3116D2 50W*2 Bluetooth5.0+AUX= $ 13

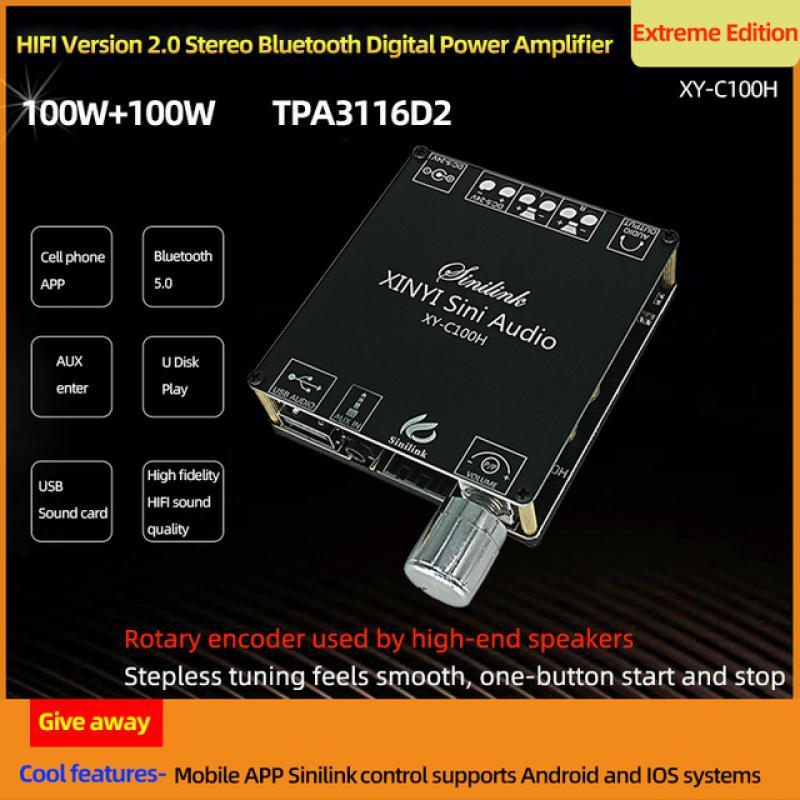

C100H TPA3116D2100W*2 Bluetooth5.0+AUX=$17
C160H TPA7498E 160W*2 Bluetooth5.0+AUX = $25
0.C160H TPA7498E 160W*2
Bluetooth 5.0 TPA7498E 160W*2
1.50L AP3050
Bluetooth 5.0 AP3050 2.0 50W*2
Parameters
1.Bluetooth version: 5.0 (without sunscreen, 15 meters)
2.Output channel: 2.0 channel
3.Chip model: AP3050D
1. Working mode: class D
2.Audio input: support bluetooth 5.0,AUX, U disk Play
3. Rated output power: 50W+50W
4. Frequency response: 20Hz to 20KHz
5. Working voltage: DC8V to DC26V
6. Recommended power voltage: DC19V
7. Fit speaker parameters: 4-8 ohms
8. size: 56*50*18mm
9.Net weight: about 61g
NOTE：
1.For DIY---The outer casing is a material package, It needs to be assembled by itself, and the material package is given a screwdriver.
2.---Attention!The heat sink tape 3M glue needs to be pasted to the chip by itself. Please refer to the picture in the description. The hotter the more sticky the thermal conductivity is.The shell version needs to be assembled by yourself. Screwdriver is given with the shell version.
3.For use---The power switch on the board is standby switch. After the switch is off, the machine is in standby state with low power consumption. If the power is completely turned off or the DC plug on the machine can be unplugged for a long time.O
Bluetooth mode setting
Or Mobile APP controls Settings
1.In addition to the traditional hardware and Bluetooth control mode, there is another mobile APP control mode
2.APP download address:
Apple IOS: search in the Apple store: sinilink
Android: https://m.pp.cn/detail.html?ch_src=pp_dev&appid=7921907&ch=default or download from the official website: http://www.sinilink.com/release.apk
Or download the APP on your mobile phone: PP Assistant, search for ‘sinilink’ to download in PP Assistant or scan the code to download the APP
(Note: Android major mainstream markets have been put on the Xiaomi market, and the Huawei market has recently been put on the shelves)
For foreign customers, please download from Google Market, search for ‘sinilink’ to download
Computer client software download address:
http://www.sinilink.com/download/tools/Sinilink-Setup.exe
