Maximum Power Per Channel:45W Origin:Mainland China Certification:NONE Type A:Amplifier Module Type C:Bluetooth Digital Power Amplifier 12v 24v Feature B:Wireless Connection Audio Power Amplifier Feature A:Tpa3118 Tpa3118 Type F:Wireless Connection Board Amplificador Type D:12v 24v Board Amplificador Type E:Bluetooth Digital Power Amplifier Tpa3118 Type:Bluetooth-compatible 5.0 Amplifier Board 12v 24v Feature C:12v 24v Bluetooth-compatible 5.0 Amplifier Board Type 1:Bluetooth-compatible 5.0 Amplifier Board Type 2:Audio Power Amplifier Type 3:Bluetooth Digital Power Amplifier Type 4:Tpa3118 Type 5:Board Amplificador Feature1 1:Board Amplificador Feature1 2:Tpa3118 Feature1 3:Bluetooth Digital Power Amplifier Feature2:Bluetooth-compatible 5.0 Amplifier Board Feature3:Audio Power Amplifier Feature4:12v 24v Feature5:3.5mm Stereo Input Feature6:2x45w Feature7:Tpa3118 Feature:Amplifier Module

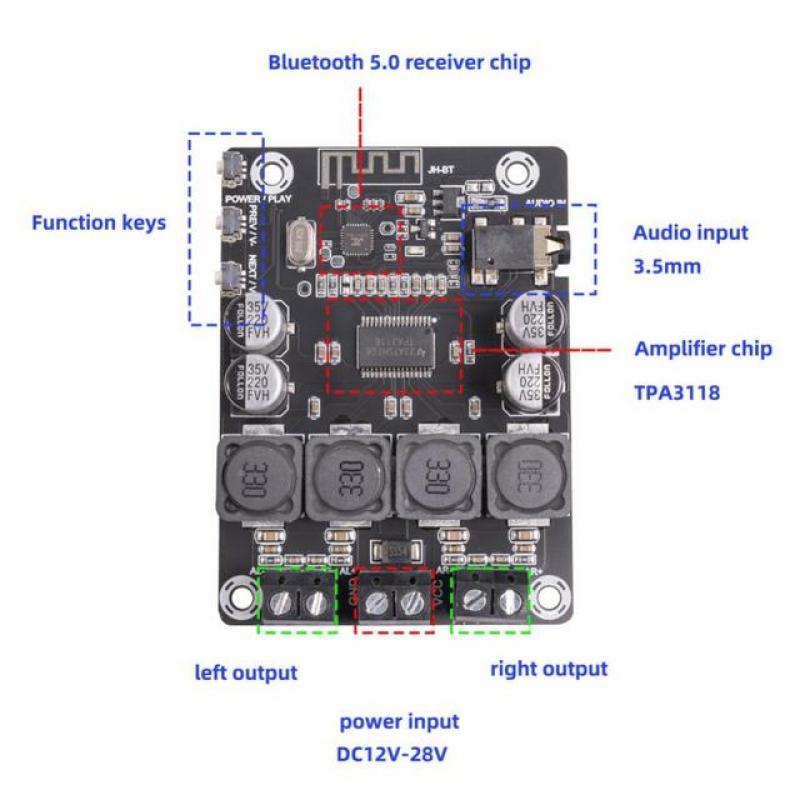

12v 24v Digital Power Amplifier 2x45w Tpa3118 Audio Power Amplifier High-definition Stereo Audio 3.5mm Stereo Input Description: version: V5.0 Power amplifier chip parameters: Power interface: KF301 terminal block Input voltage: DC 12V-28V Input current: above 3A Power amplifier chip: TPA3118 Output power: 4 Ω 2x45W/8 Ω 2x30W SNR: 102Db THD+N: 0.1% Input interface: 3.5mm stereo input/ 5.0 wireless connection (The function buttons are only available when using connection. The buttons are not available when using 3.5mm audio cable connection. connection is not available when using 3.5mm audio cable. If you want to use connection, disconnect the 3.5mm audio cable of the amplifier Output interface: KF301 5.0mm terminal block parameters: version: V5.0 Signal to noise ratio: 90DB THD+N:-70DB Crosstalk: - 86db DNR：91db Transmission protocol: A2DP/AVCTP/AVDTP/HFP Transmission distance: about 10m (the shorter the distance, the better the stability) Key control: single press on/up/down, long press off volume/up/down. Specifications: PCB board thickened copper foil, effective heat dissipation, no need to add heat sink to the power amplifier. 12V-28 wide voltage input Provide a high power output of up to 45W, which can push 5W-100 speakers, speakers, etc Support audio cable connection and 5.0 connection The receiver has its own control buttons, which can be used to control the volume, play, pause, up and down, switch on and off, etc. when connecting via . Package Included: 1*Amplifier Board
