RAID Supported:No
Processor compatibility:AMD Athlon A-Series
Usage Scenario:Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Scientific Computing,Video Rendering,MaxCompute
Special Function:Cooling Armor,Support For Overclocking
Back I/O Ports:1x RJ45,VGA(D-Sub),HDMI 1.1,4x USB 3.2/3.1 Gen 1
Support USB Type:USB 2.0,USB 3.1 Gen2
Onboard LAN:1x RJ45
Audio Channels:5.1
Supports M.2 SSD:2280
Number of M.2:1
Number of SATA Ports:4
Storage Interface Type:SATA 3,M.2 (NVMe)
Number of PCI:1
Number of PCIe x 4:1
Crossfire:SLI,Crossfire
PCI - E standards:PCI - E 3.0
Number Of Memory Slots:2
Support Memory Type:DDR4
Quality Certification:ce
Memory channel:Double
Form Factor:CeB
Package:Yes
Maximum Ram Capacity:32 GB
Chipset Manufacturer:AMD
With CPU:No
Chipset:AMD A320
Application:Desktop
Socket Type:AM4
Origin:Mainland China

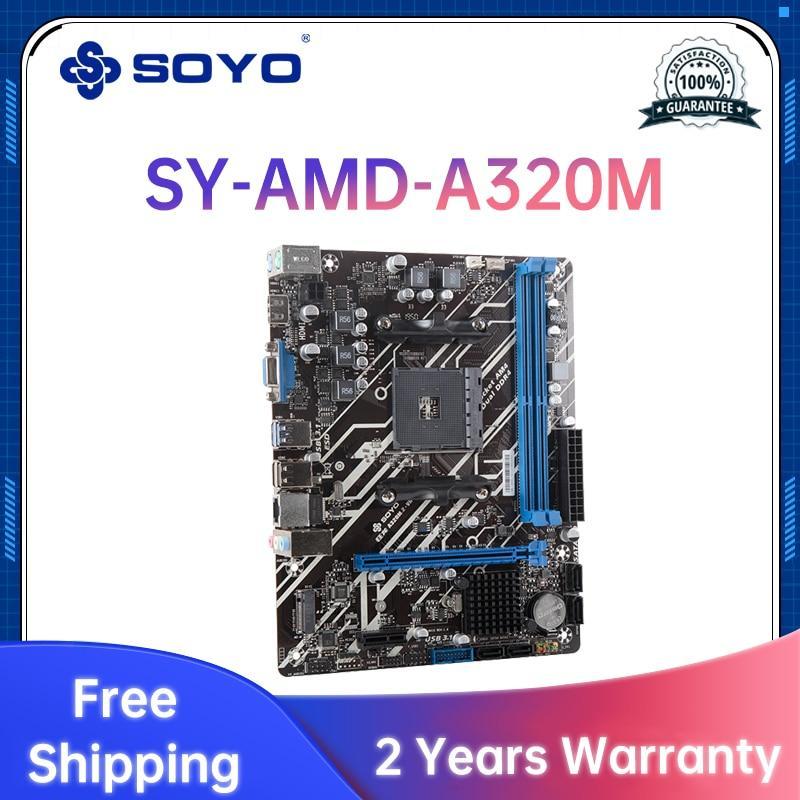

*Board type: M-ATX
*Chipset: AMD A320 chip
*CPU support: Supports AMD AM4 socket A series APU (Bristol Ridge) and AMD Ryzen processor (Summit Ridge) (Raven Ridge)
*Memory support: support dual-channel DDR4 2800/2666MHz memory, etc. (memory can be overclocked at higher frequencies)
*Network card chip: Gigabit network card
*Integrated graphics: CPU built-in display chip (APU only, Ryzen has no display chip)
*Disk interface: 4x SATAIII interface; 1x M.2 interface (SATAIII/PCI-E standard)
* Graphics slot: 1 PCI-E graphics slot
*Other slots: 1 PCI-E X1 slot, 1 M.2 slot
*PS/2 interface: 1, keyboard and mouse universal
*USB interface: 2x USB3.0 interface; 4x USB2.0 interface
*Audio interface: 5.1 channel audio
*Video interface: VGA, HDMI-compatible
*Extension pins: 4 USB2.0, 2 USB3.0
*Power interface: 24 pin + 4 pin
*Power supply mode: 5-phase power supply
*Features: 1 graphics card slot, 2 DDR4 memory slots, 5-phase power supply
*Motherboard accessories: manual, driver CD, SATA data cable, baffle
The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
Support AM4 interface Ryzen CPU/APU
* Supports 8th Gen APU Raven Ridge
1x 16x full speed graphics card slot
Dual DDR4 memory slots support dual channel
Five-phase power supply
m.2 slot
