Usage Scenario:Household,Office,DESIGN
Special Function:NONE
Onboard Connectors & Header:24-pin Main Power Connector,AAFP Connector,SATA Power Connector(s),USB 2.0 Connector,CPU OPT Fan Connector(s),System Panel(s) (Chassis intrusion header is inbuilt)
Back I/O Ports:1x RJ45,6 x USB 2.0,4 x USB 2.0
Support USB Type:USB 2.0
Onboard LAN:1x RJ45
Audio Channels:5.1
Number of SATA Ports:4
Storage Interface Type:SATA,SATA 2
Number of PCI:0
Number of PCIe x 1:1
Number of PCIe x 8:1
Number of PCIe x 16:1
PCI - E standards:PCI - E 2.0
Number Of Memory Slots:2
Support Memory Type:DDR3
Quality Certification:NONE
Bundle:Motherboards
Memory channel:Double
Package:Yes
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
With CPU:No
Chipset:H61
Application:Desktop
Socket Type:LGA 1155
Origin:Mainland China
Item Condition:New
Model Number:Motherboard H61
Model Number2:H61M Motherboard
Product category:Computer & Office
Product Category:Computer Components
product properties:Motherboards
Model1 Number:LGA 1155 Motherboard
Hard Drive Interface:SATA2.0
Model number:H61 Motherboard

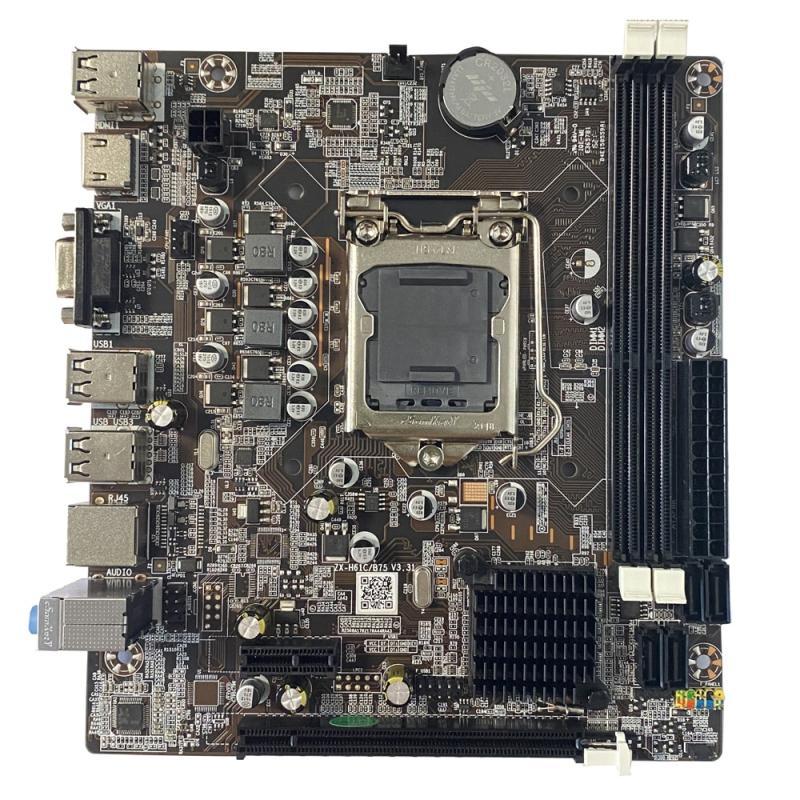

H61 ATX Motherboard LGA 1155 CPU Socket 2 DDR3 Slots PCIe 8X GPU Slot VGA HDMI-Compatible for Desktop Computer
Specification:
Motherboard model: H61
Motherboard type: ATX
Motherboard size: 190mm*170mm
Graphics card slot: PCI-E 8X*1
Network card: 100M network card
CPU socket type: LGA 1155 (Socket H2)
Number of memory slots: DDR3*2
Max memory capacity: 16GB
SATA interface: SATA*4
Power interface: 4-pin*1, 24-pin*1
USB interface: USB 2.0*10 (4 front)
Expansion interface: VGA*1, HDMI-compatible *1, PCI-E 1X*1, COM pin*1
Feature:
1. All solid-state motherboards.
2. Dual-channel DDR3.
3. VGA+HDMI-compatible high-definition ports
Package includes:
1 X Gaming Motherboard
1 X USB Cable
1 X Baffle
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
