RAID Supported:No
Processor compatibility:Intel Xeon E Series
Usage Scenario:Enthusiast & Overclocking,Gaming,Office,Mining,Others
Special Function:NONE
Onboard Connectors & Header:24-pin Main Power Connector,8-pin +12V Power Connector
Back I/O Ports:1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2
Support USB Type:USB 2.0,USB 3.0
Onboard LAN:1x RJ45,WIFI (AC)
Audio Channels:5.1
Number of M.2:2
Number of SATA Ports:4
Storage Interface Type:SATA 2,SATA 3,M.2 (NVMe)
Number of PCI:3
Number of PCIe x 1:1
Number of PCIe x 8:1
Number of PCIe x 16:1
PCI - E standards:PCI - E 3.0
Number Of Memory Slots:4
Support Memory Type:DDR4
Quality Certification:NONE
Memory channel:Double
Package:Yes
Launch Date:2013
Maximum Ram Capacity:128 GB
Form Factor:Micro-ATX
Chipset Manufacturer:Intel
With CPU:No
Chipset:Intel X99
Application:Desktop,Laptop,Server,Mining
Socket Type:LGA 2011-3
Origin:Mainland China
Certification:CE
Memory slot:4* DDR4
Version:M-ATX
Motherboard size:242mm*200mm
SATA interface:SATA 2.0*2, SATA3.0*2, M.2 NVME interface*1
Graphics slot:1*PCIE 16X, PCIE 8X*1
Network card:Gigabit adaptive network card
Sound card:ALC662 5.1 channel
Other interfaces:PCIE 4X*1, COM pin*1, M.2 WIFI interface*1
Power interface:1*8 pin+1*24 pin power interface
CPU type:Support LGA2013-3 V3/V4 processor
USB interface:USB3.0*6, USB2.0*4 (front USB3.0*2, USB2.0*2)
Features:
1. The power supply is stable and accurate, evenly distributed, and the thermal load of various power supply chipsets improves the performance of the CPU. Multi-phase power supply, more stable and durable.
2. M.2 NVME+M.2 WIFI hard disk interface, specially designed for gamers.
3. This motherboard supports LGA2011-3 V3/V4 series processors.
4. 4*DDR4 memory slot can be expanded to 128GB capacity.
5. Self-adapting gigabit network card, can connect to high-performance network.
6. The front USB 3.0 port, 1 PCIE 3.0 16X interface, Gigabit network card, the game is more enjoyable.
Description:
The LGA2011-3 motherboard has a reasonable layout, complete interfaces and strong scalability.
Specifications:
Memory slot: 4* DDR4
Version: M-ATX
Total memory capacity: 128GB
Motherboard size: 242mm*200mm
SATA interface: SATA 2.0*2, SATA3.0*2, M.2 NVME interface*1
Graphics slot: 1*PCIE 16X, PCIE 8X*1
Network card: Gigabit adaptive network card
Sound card: ALC662 5.1 channel
Other interfaces: PCIE 4X*1, COM pin*1, M.2 WIFI interface*1
Power interface: 1*8 pin+1*24 pin power interface
CPU type: Support LGA2013-3 V3/V4 processor
USB interface:, USB2.0*4 (front USB3.0*2, USB2.0*2)

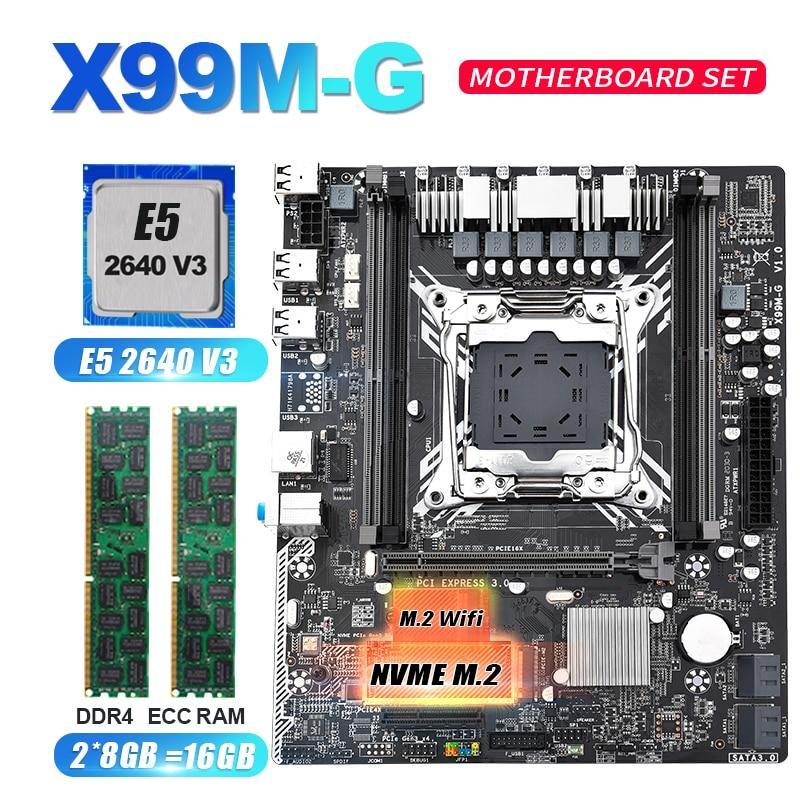

Package Included:
1 * Motherboard
1*2640 V3 CPU(USED)
2*8GB DDR4 2133 ECC REG RAM (USED)
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
