RAID Supported:No
Processor compatibility:AMD Others
Usage Scenario:Gaming,Audio & Video,Office,Video Production
Special Function:NONE
Back I/O Ports:VGA(D-Sub),HDMI 1.0
Support USB Type:USB 2.0,USB 3.1 Gen1
Onboard LAN:1x RJ45
Number of M.2:2
Number of SATA Ports:4
Storage Interface Type:SATA 3
Number of PCI:0
Number of PCIe x 1:4
Number of PCIe x 4:0
Number of PCIe x 16:2
PCI - E standards:PCI - E 3.0
Number Of Memory Slots:4
Support Memory Type:DDR4
Memory channel:Double
Form Factor:CeB
Package:Yes
Maximum Ram Capacity:64 GB
Chipset Manufacturer:AMD
With CPU:No

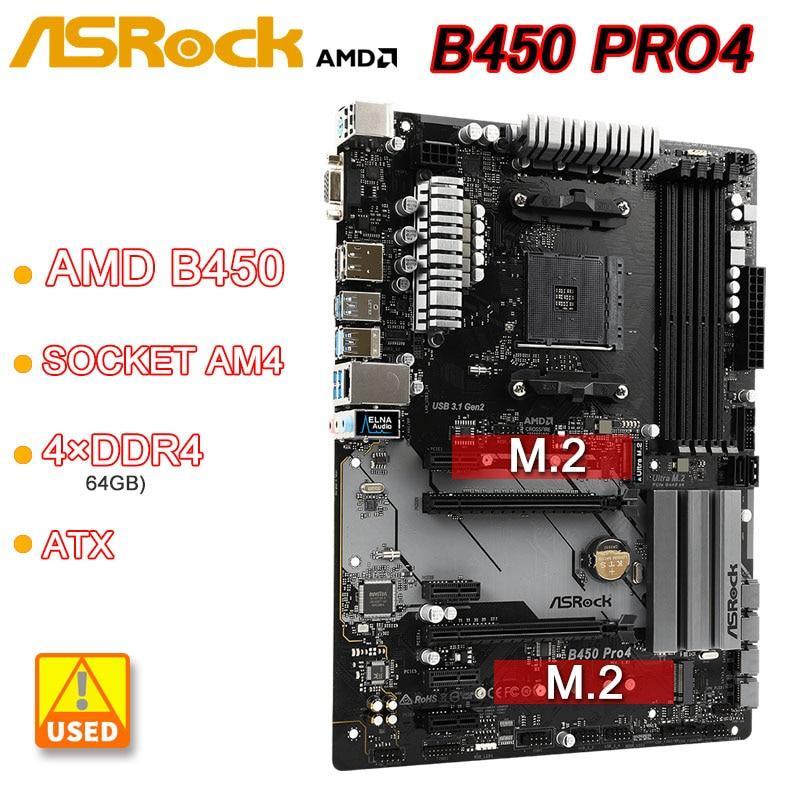

Chipset:AMD B450
Application:Desktop
Socket Type:AM4
Origin:Mainland China
motherboard chip
Integrated Chip Sound Card/Network Card
Main chipset AMD B450
Chipset Description Using AMD B450 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC892 8-channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor Specifications
CPU Type 2nd/1st Generation AMD Ryzen/Ryzen with Radeon Vega Graphics
CPU socket Socket AM4
CPU Description Support 105W water cooling (Pinnacle Ridge)
Support 95W water cooling (Summit Ridge)
Support 65W water cooling (Raven Ridge)
memory specification
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 3200+ (OC)/2933/2667/2400/2133Mhz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 4×PCI-E X1 slot
Storage interface 2×M.2 interface, 4×SATA III interface
I/O interface
USB interface 1×USB3.1 Gen2 Type-A interface, 1×USB3.1 Gen2 Type-C interface, 6×USB3.1 Gen1 interface (2 built-in+4 backplane), 6×USB2.0 interface (4 built-in+ 2 backplanes)
Video interface 1×VGA interface, 1×HDMI interface, 1×Display Port interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×PS/2 universal interface for keyboard and mouse
plate type
Motherboard form factor ATX form factor
Dimensions 30.5×22.4cm
