Is Smart Device:YES
Model Number:Wood Engraving Machine
Condition:New
CNC or Not:CNC
Origin:Mainland China
Certification:CE,RoHS
Output Optical Power:20W
Wavelength:450nm
Spot Size:0.08x0.08mm
Package Size:64.5x24x13cm
Connection method:USB/WIFI
Material:Aluminum Alloy+Acrylic
Engraving Area:80CM*80CM
X-axis Motor:1
Y-axis Motor:2
Support Offline:Yes
20W Laser Engraver Master:CNC Eye Protection Fixed-Focus
cortadora laser:Desktop DIY Laser Engraving Cutting Machine
Cut Engraver:for Metal Wood Vinyl Leather
wood carving tools:cnc milling machine
laser engraving machine:Metal Engraver
cnc router:grabadora de laser
woodworking machine:cnc machine
Wood Routers:engraver tool
ZBAITU Story
ZBAITU is a professional manufacturer that is concerned with the design, development and production of DIY Laser Engraving Cutting Machine.Our equitments have better performance than other known brands in the market, welcome to contact us for details!
grabador láse / cnc machine for wood / maquina laser grabado y corte / lazer cutting machine / laser 80w cutting / laser engraving machine/ laser engraver

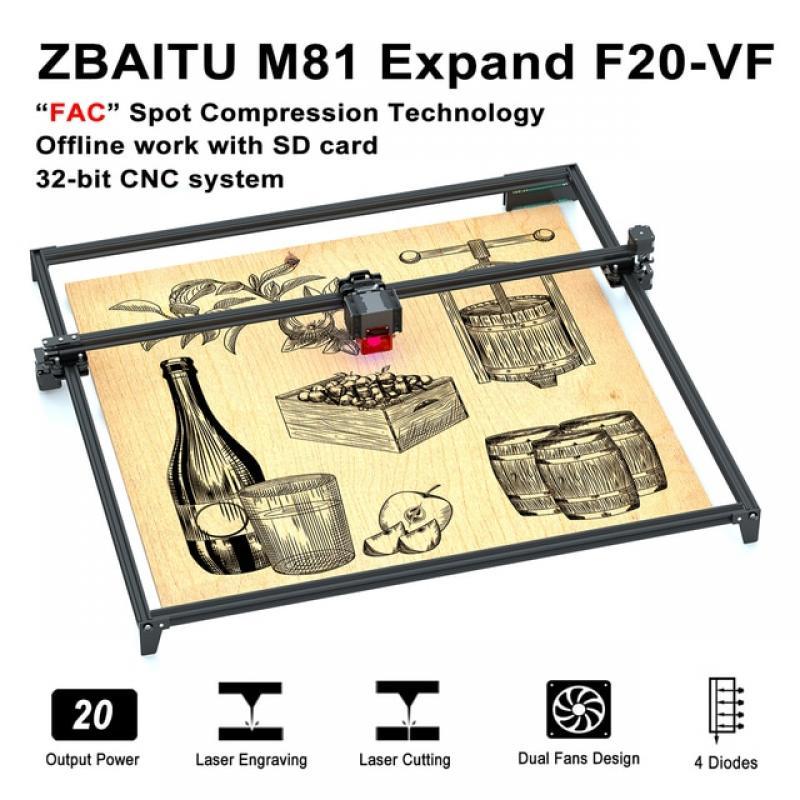

We specially upgraded the working area of M81 at the request of customers. Now the engraving area can reach 80x80CM. That is almost the largest engraving size in the market for such laser machine.
This large area engraver came with the most popular high power modules with air assist systems: the 20W laser out, F20-VF, with air assisted interface.
If you have our M81 laser machine, just need to extend the working size, then you just need choose the expand kits.
Strongest Laser Power 20W; Smaller Size 8*8*7CM; High Airflow; Thicker Cutting Capacity; Faster Cutting Speed
▶ Strong Compatibility:
The F20-VF laser module can be installed on any engraving machine model of ZBAITU laser engraver M37, M81, A40, and it can be used without any additional settings. Comes with a 3 adapter cable in the box, the laser module is compatible with Ortur, NEJE, Two-Trees, Xtool, Atomstack engraver as well.
▶ Two Fans Cooling System:
The double-sided fan can effectively reduce the temperature when the laser is working, protect the driver of the laser, prolong the service life of the laser.
▶ Updated Air Assist :
In order to make the air intake meet the needs of cutting and engraving, we increased the air intake from the original 3.5MM to 7MM. Now the cutting lines are thinner and the cutting speed is faster.
▶4 IN 1 Diode High Energy and Faster Speed:
20W laser power engraver. The laser output power soars up with the latest generation of four 5W laser coupling technology, which is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.
▶ Upgraded Laser:
No need to adjust the focus before engraving. The focusing spot area is only 1/3 of other ordinary lasers. Combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
▶ Various Material to Cut and Engrave:
Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife. Cuttable materials are including cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
Module Model: F20-VF
Specification:
Module Model: F20-VF
Optical Output Power: 20W
Product Material: Aluminum 6061 Anode
Housing Size: 8*8*7CM
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Light Spot Size: 0.08*0.0.08mm
Wavelength: 445±5nm
Engraving Accuracy: 0.01mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: 40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 500g
