Package:Yes
Channels:4
Model Number:JYS-225A
Maximum Power Per Channel:25W
Origin:Mainland China
Certification:CE
Name:Home Music Player Mini Amplifier
Amp Type:Bluetooth Wall Amplifier
Amp Screen:2.8-inch Display
Amp Resolution:320*240
Amp Power Supply Mode:AC 110-250V
Amp Output Power:2*25W or 4*15W
Amp Audio Inputs:one set
Amp Audio Output:one set
Amp Touch:Key touch
Amp Timing output:one set
Amp Installation:86 standard wire box, front wall
Amp Wire Box Opening Size:86*86*57mm
Amp Color:white, gold, black
Speaker Unit:3'' Full range speaker driver
Speaker Rated Power:12W
Speaker Constant Resistance Input:8Ohm
Speaker Sensitivity:85dB
Speaker Ceiling Cutout Size:d 95-100mm
Speaker Decorative Cover size:d 115x85mm
Speaker Installation:fast in-ceiling type
Speaker Shell:Aluminum cylinder shell
Speaker Weight:300g

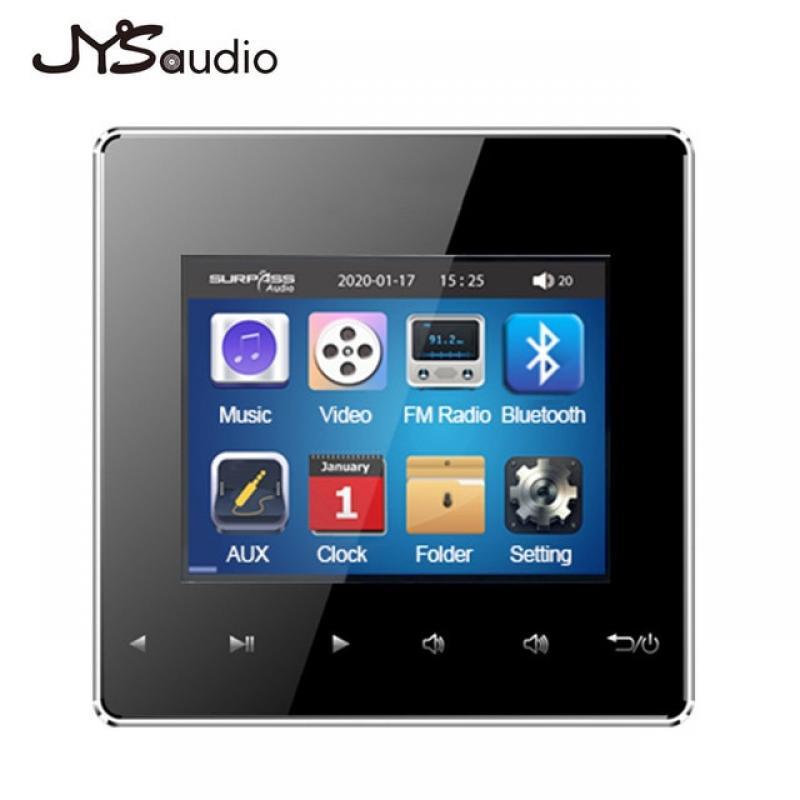

Bluetooth Wall Amplifier Parameters:
● 2.8-inch Display, 320*240 Resolution
● Key Touch
● Power Supply Mode: AC 110-250V
● Output Power: 2*25W or 4*15W (Digital power amplifier)
●Audio Inputs one set; Output one set
● RS485: Output one set(Optional)
● Video Player
● Timing output: one set
● Bluetooth: Support
● Installation: 86 standard wire box, front wall
● Product size: 86*86*10mm
● Wire Box Opening Size: 86*86*57mm
Bluetooth Wall Amplifier Function:
●Radio Function
● Support TF card, USB Play
● 2 or 4 channel Speaker Output
● Support departure doorbell
● Multi-stage timing switch, music play, linkage control of smart home
● Supporting power-off memory, power-on and trigger music play
● Support external 485 control local machine(Optional)
Mini Passive 12W Ceiling Speaker Specification:
● Power: 12W
● Impedance: 8Ω
● Sensitivity: 85dB
● 3'' Full range speaker driver
● Aluminum cylinder shell
● Installation Cutout Size: Φ95-100mm
● Product Size: Φ115x85mm
● Net Weight: 250g
● Gross Weight: 300g
