Direction:None
Model Number:999
Origin:Mainland China
Certification:CE
Smart home platform:Other
Suit for:Both left and right open door
Unlock method:key keyfob
Optional Unlock method:Remote controler wifi remote unlock
power supply:DC12V

Note
1. Battery for remote controler or operator are all removed due to safty concern.
2. 12V power supply or wifi or remote controller are optional in some kits
Kits available to choose from
Kit1: TypeA lock
Kit2: TypeA lock +A black remote controler
Kit3: TypeA lock+ eWelink Wifi module
Kit4: TypeA lock + C white remote controller +eWelink Wifi module
Kit5: TypeA lock+12V Adapter
Kit6: TypeA lock+A black remote controler+12V Adapter
Kit7: TypeA lock+ eWelink Wifi module+12V Adapter
Kit8: TypeA lock + C white remote controller +eWelink Wifi module+12V Adapter

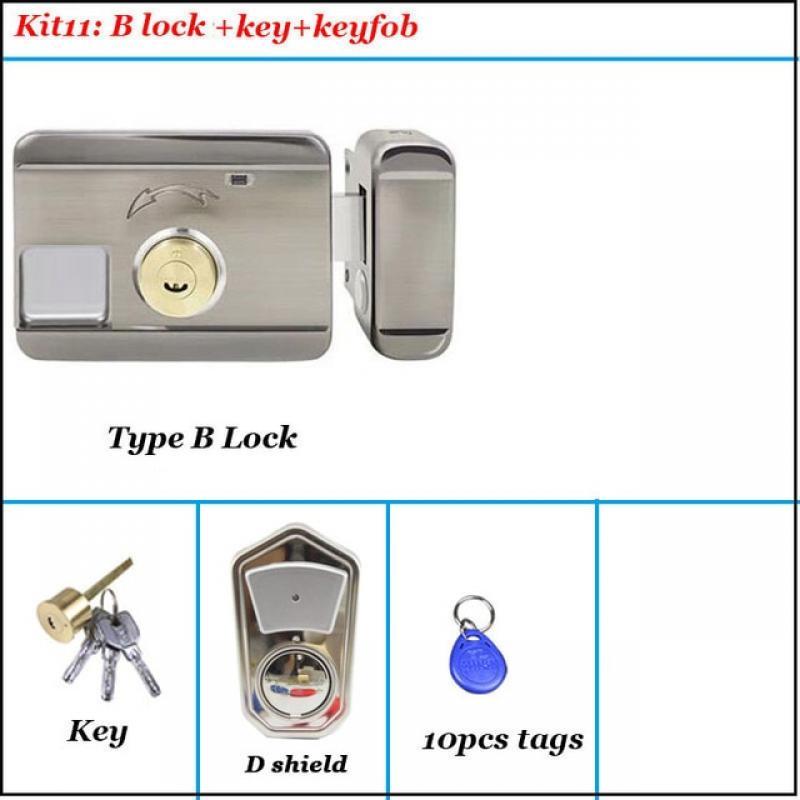

Kit11: TypeB lock
Kit12: TypeB lock + A black remote controler
Kit13: TypeB lock + eWelink Wifi module
Kit14: TypeB lock + C white remote controller +eWelink Wifi module
Kit15: TypeB lock +12V Adapter
Kit16: TypeB lock + A black remote controler+12V Adapter
Kit17: TypeB lock+ eWelink Wifi module+12V Adapter
Kit18: TypeB lock + C white remote controller +eWelink Wifi module+12V Adapter
There are 3pcs keys and 10pcs key chain in each kit.
Pay attention to difference between Type A and B locks.
Item parameters
Features:
-Suit both Left push/pull and Right push/pull door.Not for sliding door
-NO (open when powered) Fail Secure Operating Mode.Won't open after power off. For lock open after power, please contact us.
-Easy to install
-Support Autolock, doesn't support lock via wifi or remote control. It's locked automatically when door closed.
-Support Various unlock method: key(TypeB lock), RFID tag, remote control(optional), phone APP ewlink(optional)
-Suit to connect all sorts of access control systems and video door systems
-The outdoor reader part is waterproof and indoor part is not waterproof
Specifications:
Voltage: DV 9 ~ 12V
Action Current: less than 350mA
Operating Mode: NO (open when powered)
Work temperature: -40 Celsius~70 Celsius
Work humidity: less than 95%
Response time for RFID tag unlock: less than 0.5S, read distance less than 20mm
Response time for remote control: less than 0.3S
Remote controller (Optional)
2 types of remote controller to choose from.
1pcs CR2032 needed for A black remote, 1pcs 23A 12V needed for B AND C remote.
A Black remote is incompatible with wifi kit.
If need B black remote, contact seller or leave remark in the order.
Phone eWelink function (Optional in some kits)
Support unlock remotely. Doesn't support lock remotely
