Model Number:K8 Series
Size:27x31mm
Item Type:Exit Button
Origin:Mainland China
Product Name:Infrared Exit Button
Material K5D:Metal
Material K6D:Plastic
trigger:Infrared
Output Contact:NO/NC/COM
LED Indicator:Blue and Green
Waterproof IP68:K8W-TD
Time Delay:0.3-30 seconds adjustable
Sensitive Distance:3-15 cm adjustable

Question and Answer
Q: What is the difference for K8,K8W-TD?
A: K8 is normal one
K8W-TD is waterproof Design, has time delay adjustable and sensor distance adjustable button.
Q: What is the Contact output?
A: NO,NC,COM
Q: Can it control 12V led light?
A: A: if your led light is 12V DC and the working current is less than 1A. it can control. 1, Connect Exit Button COM wire and Exit Button 12V+ wire together. 2, Connect Exit Button GND wire with 12V Led Light GND wire. 3, Connect Exit Button NO wire with 12V led light 12V+ wire (Connect Exit Button NC wire with 12V led light 12V+ wire. the led light will be on always) .DC 12V Power will connect with exit button 12V+ and GND.
Diagrams
This is normal connection for Door Access Control system. More question, free to let us know.

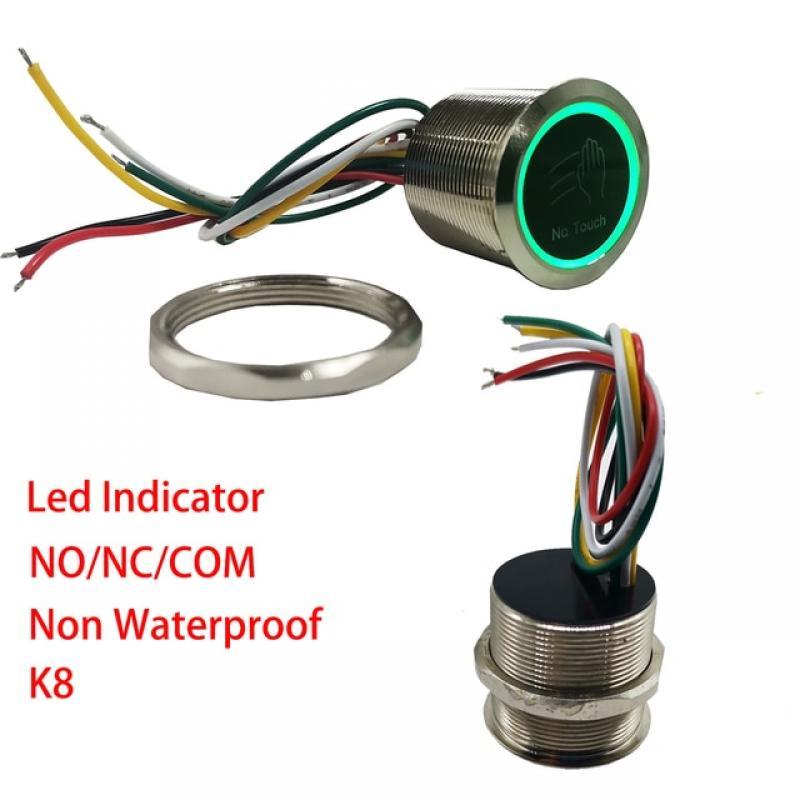

K8 (Normal)
Sensor Head Material: Metal
Waterproof: None
Input voltage: DC 12V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K5 Size(approx.): 31 x 27 mm
K8W-TD (Waterproof & Time Delay)
Time Delay Adjust: 0.3-30 seconds
Sensitive Distance Adjust :3-15 cm
Sensor Head Material: Metal
Waterproof: IP68
Input voltage: DC 12V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K5 Size(approx.): 31 x 27 mm
