Size:82*42*22mm
Fiber Type:Single Mode
Connector Type:LC/APC
Model Number:LNK-M3G-1V-20
Origin:Mainland China
Video Signal:3G-SDI
Transfer Distance:20km
Fiber port:SFP / LC
Resolution:1080p / 60Hz
Data rate:3Gbps
Operation Temperature:-20~+70 degree
Tally:Rs-232
Power:12v dc
Keyword:3G SDI Fiber Optic Transceiver
.
.

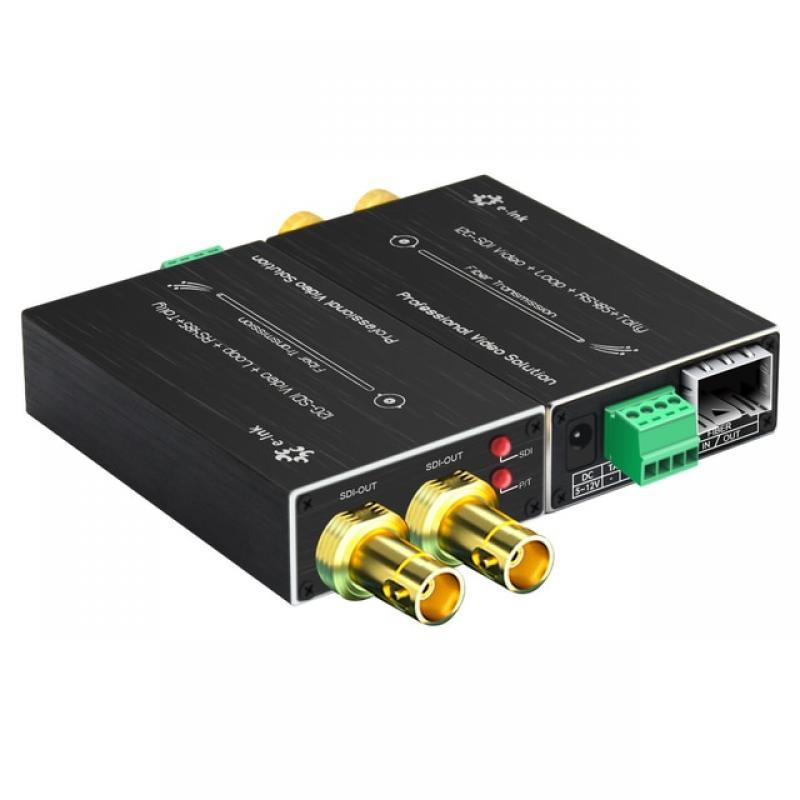

Mini 3G-SDI Over Fiber Converter Broadcast Level uncompressed sdi extender with RS485 Tally Loop Output Single-mode Single Fiber lc 20km
Overview
The Mini-type 3G-SDI Fiber Converter supports
1-channel HD/3G SDI Video (
8-channel
audio embedded) & Tally/Rs485 signal
transmitted via fiber optical cable, and monitor the signal locally over a SDI loop output. The 3G SDI Video over Fiber Converters
includes one transmitter and one receiver
for
1080P@60Hz SDI signal.
Faetures：
Aluminum Material with compact size
Using
Aluminum material
with exquisite apperance, good corrosion resistance.
Dimension:
2.8*1.7*0.9inch
.
Easy to install on cameras, camera car or camera dolly.
Gold-Plated BNC connector Loop output
The Mini HD SDI to Fiber Converter use
Gold-Plated BNC
connector to reduce signal degradation.
The Fiber Optic transceiver support
loop output
, you can see the image easily in local side.
RS485&Tally with 5-24V DC Power input
Support both
Backwards RS485(Max 57600) and Tally
Input Voltage:
5-24V DC
.
Support
hot plug and hot
swap.
Industry level temperature range:
-40℃~+75℃
.
Long Stable uncompression Transmission
Automatic reclocking
270Mbit/s - 1.48Gbit/s - 3Gbit/s
.
65617ft(20km)
Long distance transmission.
Supported Resolution:
625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/60; 1080i 23/24/30/60
What about this itme:
3G-SDI Video:
The 3G SDI Fiber converter support
3G/HD/SD SDI with 8-channel audio embedded
, resolution up to
1080P&60HZ, Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
SupportRs485&Tally
: The 3G SDI extender support both
Backwards RS485(Max 57600) and Tally
. You can control other device or use Tally Function in broadcast
Small Size:
The SDI Extender only
2.8*1.7*0.9 inch in size
, it’s very compact and can install on cameras
Loop output:
The SDI Fiber Optic transceiver suppor
t loop output
, you can see the image easily in local side
Support CWDM/DWDM SFP:
The SDI Fiber transceiver support
CWDM/DWDM technique
. You can use CWDM/DWDM SFP module when you only have limited fiber cable resourc
Packing List of 3G-SDI Video Transceiver：
1*3G-SDI Fiber Transmitter
1*3G-SDI Fiber Receiver
2 *Power Adapter
2 *SFP Module
（we send single-mode single fiber 20km sfp modules. If there is no special requirement）
1 *User’s Manual
Application-3G SDI Fiber extender：
Animal films recording, Live events broadcast over fiber, High performance(error-free) surveillance networks in Army or security, large video wall system, Intelligent Traffic Monitoring System, Stadium (For LIVE HD video, audio transmission) etc.
