Type:LCD & Touch Screen Digitizer
Material:TFT
Screen:> 3"
Model Number:14 inch 4K LCD
LCD Kit:Yes
Touch Screen Type:Capacitive Screen
Origin:Mainland China
Certification:NONE
Panel Size:14 Inch
Resolution:3840*1100 , 283PPI
Display Area:344.218(W)*98.604(H) mm
Brightness:300 Nits
Contrast Ratio:1200:1
Support systems:Windows , Raspberry pi
Display Colors:16.7M 72% NTSC
14 Inch 4K 3840X1100 Tangible DIY IPS LCD Gaming Console Panel 60Hz Type-c Controller Board Case Monitor for Raspberry Pi
14 Inch 4K UHD IPS screen specification
Active area:344.2176(H)×98.604(V)
Number of pixels:3840 (H) ×1100 (V)
Pixel pitch:0.08964 (H) ×0.08964 (V)
Color Depth:16.7M 72% NTSC
Viewing Angle : 85/85/85/85

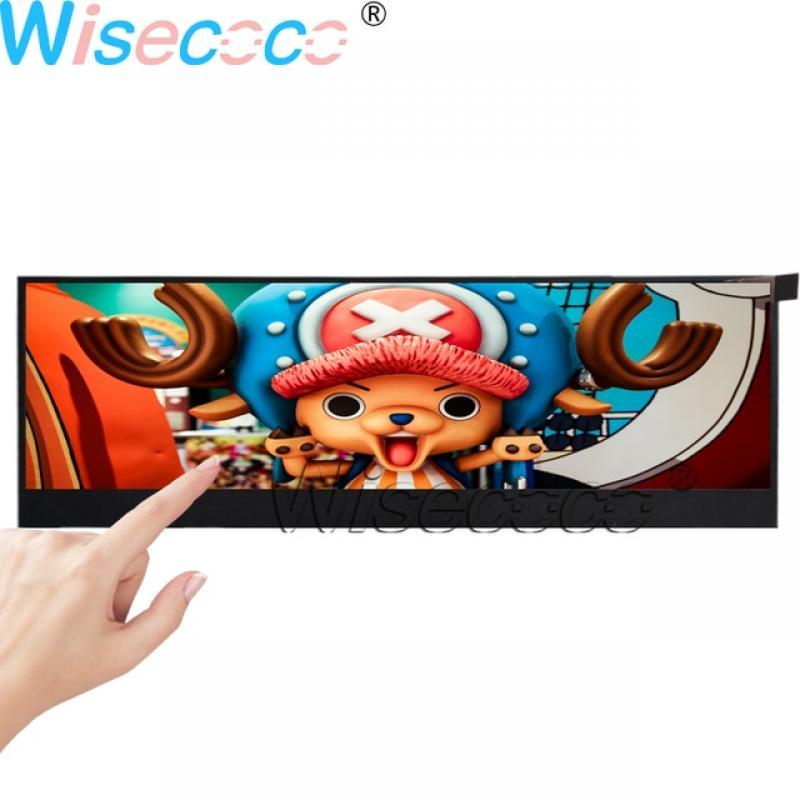

Front screen view
Screen back view
Driver board interface information
-Type-C port supports DisplayPort Alt Mode.
-OSD language support English/Chinese/German/Korean/French/Spanish/Japanese, etc.
- Support USB Hub function.
- Support PD two-way power supply protocol.
-If you need to add additional gravity sensing module and wireless WiFiBluetooth module, please contact us.
LCD and board option
Packing list:14 Inch 4K screen + Driver board + cables (as shown below)
Touch LCD and board option
Packing list : 14 Inch 4K screen + Capacitive touch screen + Driver board + cables (as shown below)
With Case 1 option
Packing list :
14 inch UHD Built-in speaker Monitor (Black, as shown below)
With Case 2 option
Packing list :
14 inch UHD Built-in speaker Monitor ( White, as shown below)
With Touch Case option
Packing list :
14 inch UHD Built-in speaker and touch Monitor (as shown below)
Monitor interface information
L*W*H (Manual measurement may have errors.)
length: 35.3cm
width: 12.5cm
thickness:1.2cm
Power Supply : 5V 2A
