Special Features:Bluetooth Software Update:Yes Language:Arabic,Czech,Denish,Dutch,English,Finnish,French,German,Greek,Hungarian,ITALIAN,Japanese,Korea,Norwegian,Polish,Portuguese,Russian,Slovenia,Spanish,Swedish,Thai,Turkish Origin:Mainland China Item Type:Code Readers & Scan Tools Certification:CE OEM NO.:BT ELM327 V2.1

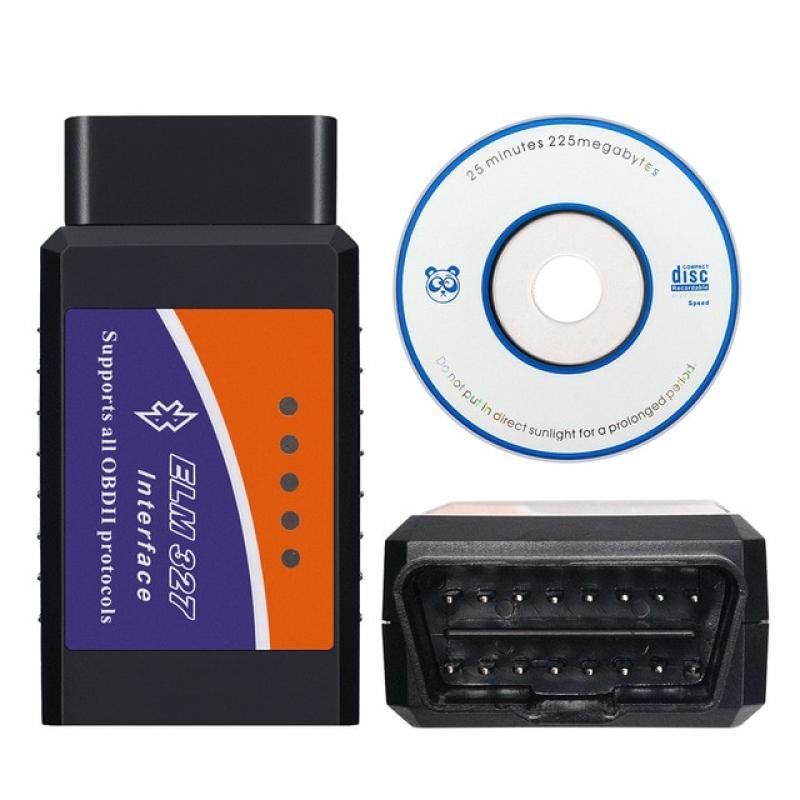

OBD2 Scanner ELM327 V2.1 Automotive Detector Bluetooth Android Car Diagnostic Tool Code Reader Accessories
Protocols supported by OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software platform:
1. Compatible software
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc;
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc; Symbian version: OBDScope.
2. Compatible platform
Software support platform: Windows XP, Windows 7/8, Android, IOS. Symbian and other systems.
ELM327 Bluetooth Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
