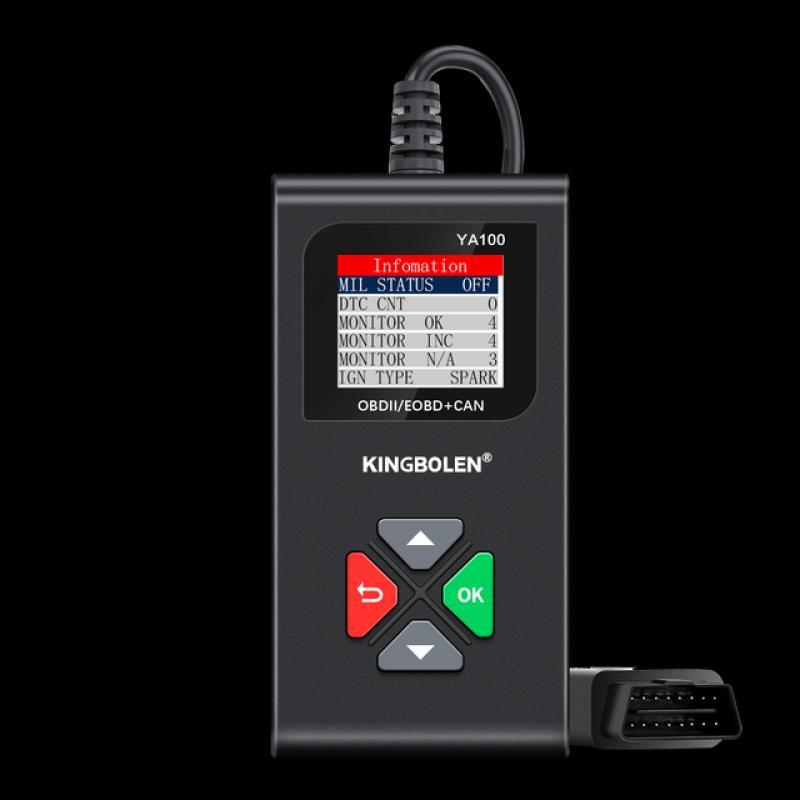

KINGBOLEN YA100 Car OBD2 Scanner YA-100 Code Reader for Check Engine Light O2 Sensor EVAP Test On-Board Monitor Test PK LAUNCH CR3001
KINGBOLEN YA100 Highlights:
1, KINGBOLEN YA100 Support Multi-Language
English, French, Italian, Japanese, Spanish, German, Russian, Simplified Chinese, Traditional Chinese
2, Support Full OBD2 Function: KINGBOLEN YA100 is a great OBD2 diagnostic tool for check engine light and turn off MIL. It supports full OBD2 function:Read/Erase Codes,View Live Data/Freeze Frame, Retrieve I/M readiness Monitor Status,EVAP Test,On-Board Monitoring,O2 Sensor Test and Vehicle Info. Meets 9 OBD2 protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM (DOES NOT support trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles)
3, Data Logging:If your vehicle model meets the OBD2 standard protocol but can’t access the OBD2 diagnosis function, you can turn on Data Logging function and then enter the OBD2 diagnosis function, and then connect the code scanner to PC with the data cable and send the document recording the data(Log) to KINGBOLEN mailbox. We will help you handle this issue. (If you turn on this function, the operation of this car scanner will become slow)
4, Built-in DTC Lookup:
Looks up definitions of DTCs stored in scan tool and shows the possible causes of the DTC(Not every DTC with possible causes reason.
5, Voltage Test:
It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition. If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.
6, Screenshot:With the screenshot function, press the up and down keys for 3s-5s to take ascreenshot.
7, Thoughtful Design: Equipped with 128 x 64pixel display with 1.8 inches TFT color display. ENTER key/Back Key/UP SCROLL Key/Down SCROLL Key design to help you can more convenient to operate. Hand-held size makes you can take it everywhere. Just plug and play, no need to charge.
8, Monitoring Types: This OBD reader can serve as a misfire, fuel system, EGR, EVAP, oxygen, A/C and catalyst monitor.
9, Compatible with OBD II Vehicles: Works on most OBD2/EOBD compliant vehicles, like 1996 and newer US cars, 2000 and newer EU cars, and 2008 and newer Asian cars.
10, Lifetime Free Update : KINGBOLEN YA100 OBD2 comes with Lifetime Free Update which can be upgraded simply by connecting to a PC with a USB cable
Full OBD2 Function of KINGBOLEN YA100
1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset:
Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability
Turn Off ''Check Engine'' Light:
How to Use KINGBOLEN YA100?
1,Turn the ignition on but not starting the engine.
2,Plug the OBD2 connector into the data link connector.
3,Select Diagnostic Menu to perform quick test
4, Read Vehicle Information.
KINGBOLEN YA100 Code Reader meets the following protocols:
① SAE J1850 PWM (41.6 Kbaud)
② SAE J1850 VPW (10.4 Kbaud)
③ ISO 9141-2 (5 baud init, 10.4 Kbaud)
④ ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
⑤ ISO14230-4 KWP (fast init, 10.4 Kbaud)
⑥ ISO15765-4 CAN (11bit ID, 500 Kbaud)
⑦ ISO15765-4 CAN (29bit ID, 500 Kbaud)
⑧ ISO15765-4 CAN (11bit ID, 250 Kbaud)
⑨ ISO15765-4 CAN (29bit ID, 250 Kbaud)
KINGBOLEN YA100 Parameter:
Screen Size:1.8 inches TFT Color Display
Resolution:128 x 64 pixel
Unit:Metric/Imperial
Working Voltage Range: 8~18V
Dimension: 125mm x 65mm x 22mm
Operating Temperature: 0℃ to 60℃ (32℉ to 140 ℉)
Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)
KINGOLEN YA100 Packing List
1PCS KINGOLEN YA100 Car Scanner
1PCS Quick Start Guide User Mnual
1PCS Carton Box
