Package:Yes
Channels:2 (2.0)
Model Number:PW215B
Maximum Power Per Channel:15W
Origin:Mainland China
Certification:CE
Name:2.58 inch background music host
Power Supply Mode:AC 110-250VC
Output Power:2*15W
Radio Function:Built-in digital automatic FM radio, 30 stations
FM Range:87.5-108MHz
Bluetooth:Support
Audio Format:Support MP3, WAV, WMA, etc.
Installation:86 standard wire box, front wall
Product size:86*86*10mm
Feature:does not make buzzes or noises when idle
Support:Fast shipping, fast delivery
Feature1:Without distortion
Feature2:With a predominance of midrange
Feature3:Easy to use and install

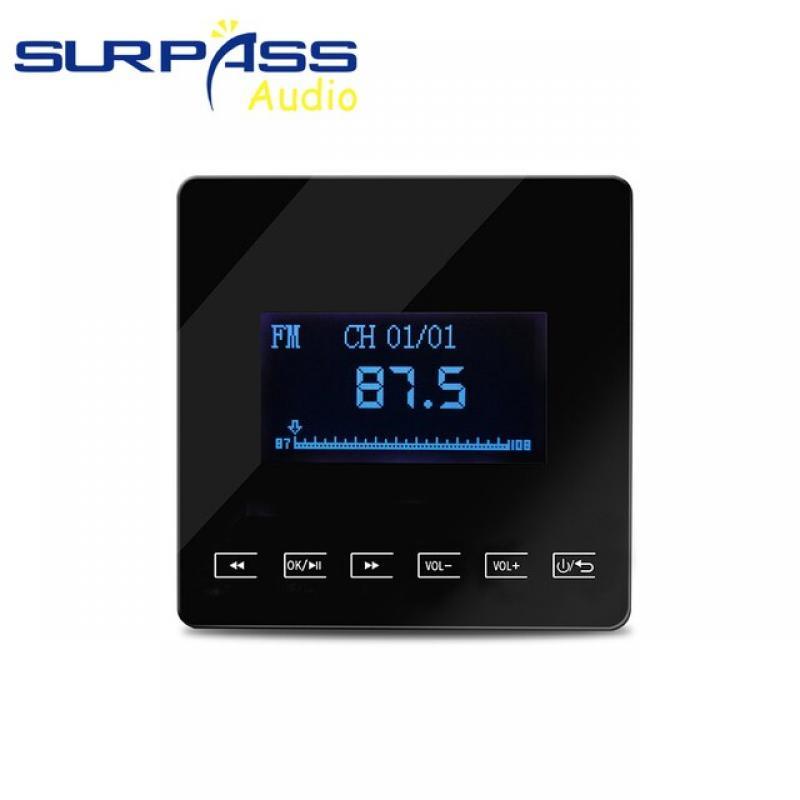

Bluetooth Wall Amplifier Mini bluetooth amplifier Home Audio System Touchkey Background Music Player connect to TV SURPASS
PLEASE NOTE:
● In some country, the FM Radio Function may not works well, because the signal may be affected due to different frequencies in different countries and regions.
● Languages only support
English and Chinese
, please check before your purchase.
● For this device, speaker cable and power cable is not included.
① Use exceed 150-core pure copper speaker cable to connect speakers. Click to get:
200 core
https://www.aliexpress.com/item/4000938426917.html
100 core
https://www.aliexpress.com/item/1005001859469936.html
② Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
● Connection Guide:
https://youtu.be/LjFHGe0S-U4
SPECIFICATIONS:
touch screen bluetooth amplifier home audio mini wall amplifier support bluetooth USB TF
Smart Wall Amplifier with Music Controller Specifications:
● 2.58-inch Display
● Key Touch
● Power Supply Mode: AC 110-250V
● Output Power: 2*15W
● Audio Inputs one set; Output one set
● Audio Signal-to-Noise Ratio: ≥98dB
● Radio Function: Built-in digital automatic FM radio, 30 stations
● FM Range: 87.5-108MHz
● Bluetooth: Support
● Installation: 86 standard wire box, front wall
● Product size: 86*86*10mm
Host parameters:
The company continued to improve product performance, design specifications, subject to change, in kind prevail, without notice precautions
1, the host is suitable for AC110-250V power supply, please install and debug under the guidance of professionals.
2, please read this manual carefully, according to the instructions to install the guide operation.
3, speaker cable, power cable, audio input cable, please carefully check the terminal.
4, confirm all the cables are correct before starting.
5, do not modify, remove the maintenance, upgrade this host.
6, a long time do not use the host, please turn off the power switch.
FUNCTION Description:
● Audio Format: Support MP3, WAV, WMA, etc.
● Support LRC lyrics display
● Support TF card, USB Play
● Support external voice source input, amplify output
● Support departure doorbell
● Multi-stage timing switch, music play,linkage triggered play formula music
● Supporting power-off memory, power-on and memory the state of play before shutdown
● Infrared remote control operation
● Volume control: 27 Level Electronic Volume Regulation Function
● Audio Format: Support MP3, WAV, WMA, etc.
Installation and disassembly of the host Description
1, provided by the end of 86 bottom box, bottom box depth of 57MM.
2, the wire used in this product: stranded copper wire, coaxial cable, audio cable, audio cable.
3, when installing this machine, please consult the supplier.
4, do not repair the machine without authorization, if you need to repair, please consult the supplier, by professionals to repair.
1: play TF card or U disk music
2: Bluetooth playback
3: external audio source input playback
4: short press the previous song, long press the volume up
5: Play / Pause
6: short press a song, long press the volume down
PACKAGE INCLUDED:
1 x wall amplifier device
1 x remote control
1 x mounted box
1 x bracket and screw
Smart Wall Amplifier with Music Controller Features:
● Bluetooth wireless connectivity
● 2 x 15 watts output
● Internal USB/TF media player and FM tuner
● Supplied with I.R. remote control
● LCD English display the music title and music number
● Volume control through panel keys or the supplied remote control
● 27 levels of attenuation through remote control or key functions on front panel
● Memory setting, with contact for door bell and remote trigger broadcast
