Card Type Device:4G Card
Application:Laptop
Package:Yes
Kind:Internal
Type:Wireless
Certification:NONE
Model Number:L850-GL
Origin:Mainland China

Model:L850-GL (HP LT4210)
SPS:#917823-001/L15398-001
Condition:Used (tested before shipment in good quality)
Dimension(mm):42.00 x 30.00 x 2.30;
Interface: M.2;
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B11/B12/B13/B17/B18/B19/B20/B21/B26/B28/B29/B30/B66;
LTE TDD: B38/B39/B40/B41;
WCDMA: B1/B2/B4/B5/B8;
Power Supply: 3.135V~4.4V(Typical3.3V);
Operating Temp.: -20℃~+65℃;
OS Driver: Windows10 / Linux
Data Transmission:
LTE FDD(Mbps):450(DL)/50(UL) (Cat9);
LTE TDD(Mbps):347(DL)30(UL)(Cat9);
UMTS(kbps):384(DL)/384(UL);
DC-HSPA+ (Mbps):42(DL)/5.76(UL).
Support:
HP ProBook 440 G5 Notebook PC
HP ProBook 430 G5 Notebook PC
HP ProBook 450 G5 Notebook PC
HP EliteBook 830 G5 G6 Notebook PC
HP EliteBook 840 G5 Notebook PC
HP EliteBook 840 G7 Notebook PC
HP Elitebook 845 G7 Notebook PC
HP EliteBook 846 G5 Notebook PC
HP EliteBook 850 G5 Notebook PC
HP EliteBook 745 G5 Notebook PC
HP EliteBook 755 G5 Notebook PC
HP ProBook 640 G4 Notebook PC
HP ProBook 650 G4 Notebook PC
HP ZBook 14u G5
HP ZBook 15u G5
HP Zbook 15 G6
Feature:

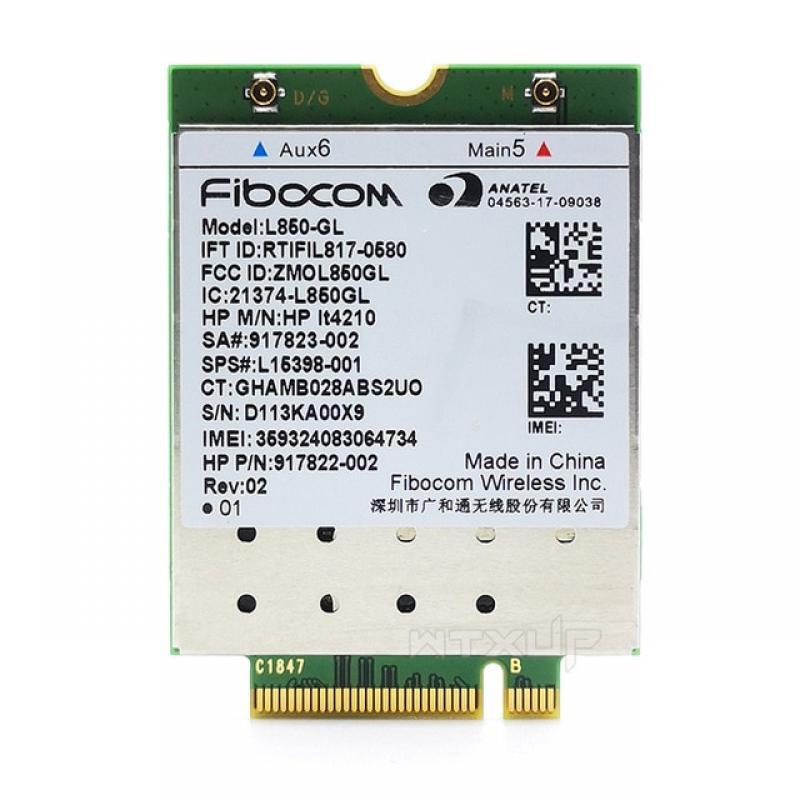

The L850-GL is an industry-leading LTE Cat9 high-speed full-memory module. It is based on the Intel7360 platform and is based on the M.2 interface. The size of the L850-GL is 30*42*2.3mm. It supports LTE FDD, LTE TDD, WCDMA and many other formats. The application of the notebook computer is preferred, and it can be widely applied in fields such as gateways, industrial monitoring, and telemedicine. It supports data rates of up to 450 Mbps Downlink/50 Mbps Uplink and operates from a supply voltage from 3.1 to 4.4 V.
supports 2*2MIMO, supports 3CA combination and 2CA combination. Supports eSIM at the same time, can meet users' fast commercial demand.
Package:
1*L850-GL 4G Module with screw
If you need the compatible antenna , please click here : )
compatible antenna
