Application:Desktop
Wireless Protocol:None
Transmission Rate:Other,None
Package:No
Kind:Internal
Interface Type:Mini PCI-Express
Type:Wireless
Certification:NONE,None
Model Number:BCM70015
Origin:Mainland China
Features:
The BCM70015(marked as BCM970015 in the old version) Crystal HD is a video/audio hardware decoder in the PCIe Mini Card half-height form factor. It is designed to reduce CPU utilization and allows for full HD real-time decoding support for mobile platform solutions. The BCM70015 single-chip Crystal HD advanced media processor is a low cost, low power (less than 1 W energy consumption), highly integrated solution for high definition (HD) video playback applications.
It is targeted for multimedia applications such as HD playback and broadcast and other TV sources.
It is excellent for use in small form factor systems that require high-end graphics support but can't compromise power consumption or platform footprint.
Specifications:
Form Factor: PCI Express Mini Card (half-height with extension adapter)
Chipset: AVC, DivX, MPEG-2/4, VC-1 Video/Audio Decoder: BCM70015
Supported Resolution: QCIF up to 1920 x 1088
HD Video Decoding Formats:
H.264/AVC HP @ L4.2 1080p60, 40 Mb/sec.
VC-1 Advanced Profile @ L3.0, 45 Mb/sec.
SMPTE VC-1 AP @ L3, 45 Mb/sec.
WMV9 (VC-1 SP @ ML and MP @ HL)
MPEG-4 Part-2 SP and ASP 1080p30
MPEG-2 MP @ HL, LL, and ML, 80 Mb/sec.
DivX 3.11, 4.1, 5.X, 6.X, XviD
Security:
AACS, AACS+
Support for various DRM implementations
Firmware verification
Secure (encrypted) external EEPROM memory storage for content and keys
DRAM protection
PCIe bus protection
Components: Single-chip Advanced Video Decoder
Please note: For compatible software and the most up-to-date drivers and support (including Linux drivers) please see the Broadcom website.

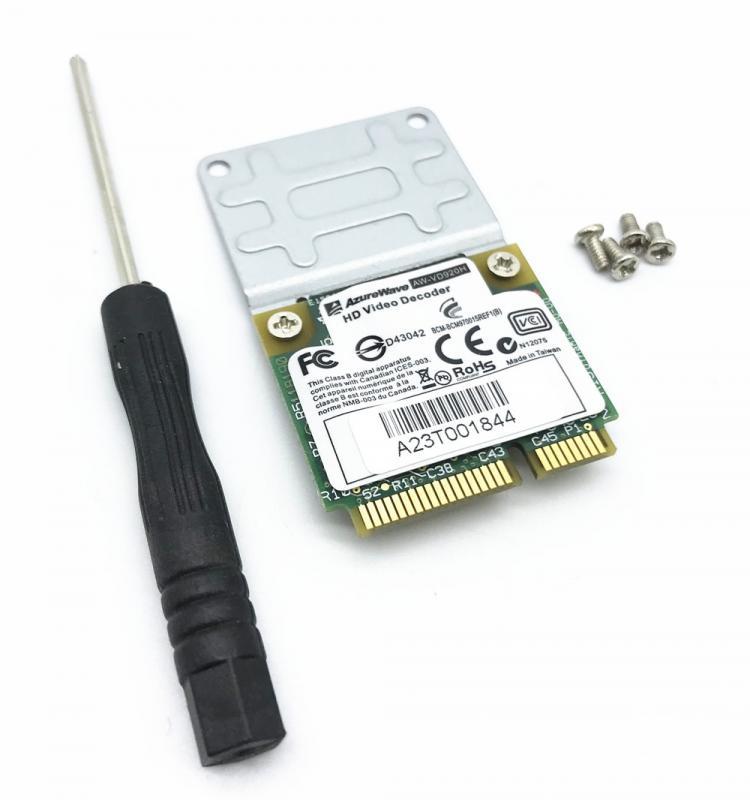

Package Includes:
1 x Broadcom BCM970015 Hardware Decoder Adapter
4 x Screws
1 x screw driver
