Wi-Fi Supported Frequency:2.4G & 5G
Lan Transmission Rate:Ethernet
Transmission Speed:1200 Mbps
Applicable Network Type:Gigabit Ethernet
Wireless Protocol:802.11n,802.11ax(802.11ax),802.11a/g,802.11ac
Certification:CE,FCC,RoHS
Package:Yes
Model Number:CM499
Application:Desktop
Interface Type:USB3.0
Adapter Socket:USB
Kind:External
Transmission Rate:AX1800M
Type:Wireless
Origin:Mainland China
Working Mode::Receive & Launch WiFi
Product Name:Wifi adapter / USB Wifi / USB WiFi Adapter / USB Ethernet Adapter / USB Ethernet / Network Card / Wireless network card / WiFi Dongle / WiFi Extender / WiFi Repeater / Wireless Adapter / WiFi Antenna
WiFi Version:Wi-Fi 6 / Wi-Fi 5
Operating Frequency Band:5GHz & 2.4GHz
Transmit power:20dBm
Chip:REALTEK
Working Channel(AX1800):Support 1-13/36-48/149-163
Working Channel(AC650&AC1300):Support 1-13/36-48/52-64/149-165
Devices:For Laptop/PC/Desktop/Notebook
>>>Two working modes:
1. Receive WiFI (Station Mode)：
Connect UGREEN Wi-Fi Adapter to your desktop / laptop, then your computer can be connected to the Wi-Fi network of your home, office, school, etc.
2. Launch WiFi (Soft AP):
Sometimes a phone or tablet wants to connect to a WiFi network but there is none around, our wireless card can be connected to a computer that is already connected to a wired network, with software, as a temporary Wi-Fi hotspot for you to use.

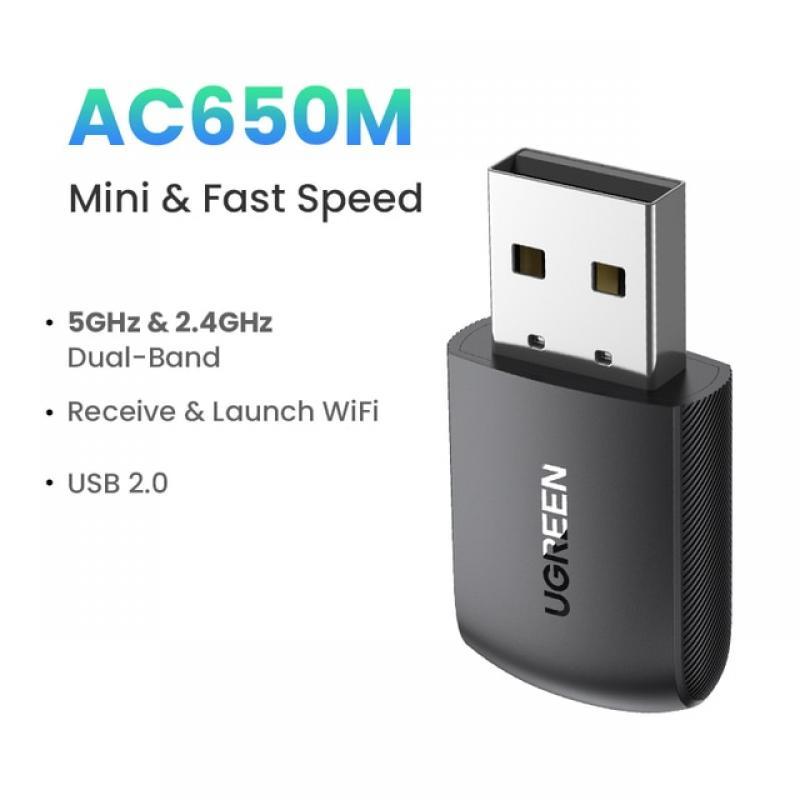

>>>Specifications(AC650):
Frequency Range:
5GHz+2.4GHz
Transmission Rate:
5GHz: 433Mbps; 2.4GHz: 200Mbps.
Standards:
IEEE802.11b/g/n/a/ac
Encryption:
WPA-PSK/WPA2-PSK/64bit WEP/128bit WEP
Support System:
Windows XP/7/8/8.1/10/11、Linux 2.6.18~5.3.
Driver:
Built-in driver for Windows 11/10/7, other systems can easily install the driver.
>>>Specifications(AC1300):
Frequency Range:
5GHz+2.4GHz.
Transmission Rate:
5GHz: 867Mbps; 2.4GHz: 400Mbps.
Standards:
IEEE802.11b/g/n/a/ac
Encryption:
WPA-PSK/WPA2-PSK/64bit WEP/128bit WEP.
Support System(AC1300 Super Speed):
Windows XP/7/8/8.1/10/11、Linux 2.6.18~5.3, Mac OS 10.11 and above(Intel Chip, doesn't support M1&M2).
Support System(AC1300 Dual Antenna):
Windows XP/7/8/8.1/10/11、Linux 2.6.24~5.11, Mac OS 10.11-10.15(Intel Chip, doesn't support M1&M2).
Driver:
Windows 11/10 doesn't need install the driver(Plug & Play), other systems can easily install the driver.
>>>Specifications(AX1800):
Frequency Range:
5GHz+2.4GHz.
Transmission Rate:
5GHz: 1201Mbps; 2.4GHz: 576Mbps.
Standards:
IEEE802.11b/g/n/a/ac, IEEE802.11ax.
Encryption:
Support WPA3/WPA2/WPA, WPA-PSK/WPA2-PSK, 64/128WEP data encryption mode.
Support System:
Windows 7/10/11.
Driver:
Built-in driver for Windows 11/10/7.
5
Models Optional
AC650/AX1800 WiFi Adapter
✔
5GHz & 2.4GHz
Dual-band
✔High-Gain Antenna ✔
Powerful
REALTEK
Chip
Receive Wi-Fi
Mode
Connect UGREEN Wi-Fi Adapter to your desktop / laptop, then your computer can be connected to the Wi-Fi network of your home, office, school, etc.
Easy to Solve the Problems:
(1) If you want to connect your desktop/laptop to the Wi-Fi network, you can connect the UGREEN Wi-Fi adapter to your desktop/laptop, then your PC can connect to the WiFi network.
(2) When your desktop PC is connected to the network cable, the desktop or floor may be cluttered, then you can connect a UGREEN Wi-Fi adapter to your desktop PC, and your PC can connect to the WiFi network.
(3) Computer's original old network card, have a slow download speed and poor signal, you can replace it with our Wi-Fi Adapter, to improve user experience.
(4) The original network card of the computer is damaged and cannot be used normally. You can purchase our Wi-Fi Adapter to reduce the time and cost of replacing the original network card.
Launch Wi-Fi
Mode
Sometimes a phone or tablet wants to connect to a WiFi network but there is none around, our wireless card can be connected to a computer that is already connected to a wired network, with software, as a temporary Wi-Fi hotspot for you to use.
PS: The principle of transmitting WiFi is to simulate AP, the actual speed is slightly different from the router.
5GHz & 2.4GHz
Dual-band
UGREEN USB Wifi Adapter for Desktop/Laptop supports 5GHz and 2.4GHz bands, and can switch automatically in different situations. So that the network can always be fast and stable.
Lightspeed, Mini & Fast
AX1800 Wi-Fi6
: Up to 1201Mbps in 5GHz band, and up to 574Mbps in 2.4GHz band.
AC650 Wi-Fi5
: Up to 433Mbps in 5GHz band, and up to 200Mbps in 2.4GHz band.
Whether you are online gaming, surf the Internet, online HD video streaming, upload, or download, it can perfectly meet your needs.
AX1800 Model
Support
Wi-Fi 6
Technology
Fast internet speed & low latency:
1) WiFi6 uses 1024-QAM high-capacity modulation mode for faster data transmission;
2) WiFi6 uses multi-device concurrency to reduce queuing and latency.
P.S. Need to be used with WiFi6 router device.
AX1800/AC1300
Support
USB3.0
USB3.0 interface to meet the demand for gigabit transmission, double the efficiency, fast & stable transmission, while backward compatible with USB2.0 interface devices.
Long Transmission Distance,
Stable Signal
Built-in
High-gain Antenna
Increase signal strength, full signal coverage
AC650/AC1300
Support WPA-PSK/WPA2-PSK, 64/128 WEP Data Encryption Mode
AX1800 Model
Support
WPA3 Encryption
Support WPA3/WPA2/WPA, WPA-PSK/WPA2-PSK, 64/128WEP data encryption mode.
The latest WPA3 security protocol supplies stronger privacy protection capabilities for safeguarding personal network information. When you enter personal information or password, WPA3 can prevent it from leaking as much as possible.
Powerful
REALTEK
Chip
All UGREEN Wi-Fi adapter uses powerful REALTEK chip, which brings fast and stable ethernet, it have e
xcellent compatibility and compact size and it also has great performance with low power consumption.
AX1800 Model
Support
OFDMA
Technology
Support multiple devices using the internet fast and smoothly.
Equipped with OFDMA technology, UGREEN USB WiFi Adapter offers faster speed and stronger stability. Compared with Wi-Fi 5, Wi-Fi 6 Adapter can supply higher data capacity and higher data transfer speed.
AX1800
Support
Beamforming
Technology
Directional enhanced signal, more stable networking. With Beamforming technology, UGREEN USB WiFi 6 Adapter supplies a wider coverage and more stable internet speed.
Easy Installation
AC650/AX1800
has built-in driver for
Windows 11/10/7,
doesn't need to install the driver with CD-ROM or download the driver from the Internet, plug in the computer to install UGREEN software can be used.
Thoughtful Design
1. Link/ Act Indicator Light:
All UGREEN Wi-Fi adapter equipped with a blue indicator light that does not light up when no driver is installed. Slow flashing when not connected with driver installed, fast flashing when connected to WiFi.
2. Protective Cover Design: Extend service life, protect usb plug when you not use it.
3.Texture Non-slip Design: Easy to use.
Reliable Choice
UGREEN WiFi Adapter has passed CE/FCC/UKCA/SRRC/IC/TELEC test items and obtained certificates, you can rest assured to choose.
Product Specifications - AC650 Mini&Fast
Product Specifications - AX1800
Package Display
Packed in UGREEN retail box, the product will not be damaged during transportation.
>>Important Note:
1.
The product transmission speed will be affected by the strength of the wireless signal.
In addition, the USB interface will also restrict the transmission speed.
>>Troubleshooting Guide:
1. What can I do if no WiFi signal can be detected?
(1) Check if the WiFi function of the nearby router work properly when connected to the cell phone directly.
(2) Reduce distance between the USB WiFi adapter and the router for a try, and avoid the obstacles such as thick walls, metals or large-area mirrors.
(3) Check whether the wireless router and wireless AP have settings to hide the wireless network name.
2. What can I do if the WiFi signal can be detected, but cannot be connected successfully?
(1) Check the signal strength of the router. Try to connect the WiFi in a place that has a stronger signal.
(2) Ensure you have entered the correct password.
(3) Check if the DHCP function of the router has been enabled. If not, the WiFi adapter won’t be able to obtain the IP address and connect the internet.
(4) Check if you have set the binding of your Mac address and the router. If yes, you need to set the binding of Mac address and the WiFi adapter.
(5) Ensure encryption type of your router is one of the WPA-PSK, WPA2-PSK, and 64/128-bit WEP.
3. How can we troubleshoot if the internet speed is slower than we expected?
(1) Try to use the WiFi adapter in a place that has a stronger signal.
(2) Manually adjust different channels for the router, and find out the optimal channel so that the interference is minimal.
(3) Set the router to 2.4Ghz from 5Ghz for a try.
4. What can i do if there is no 5G signal?
(1) Ensure your router supports 5G.
(2) Check if you have turned on the setting "Combine 2.4 GHz and 5 GHz WiFi Network" in Wifi setting.
If yes, only one wifi signal will be shown.
If not, both 5G and 2.4G will be displayed, you could manually choose it.
