Item Type:Extruder
Origin:Mainland China
OMG V2S Extruder
All metal CNC ,
1:3 Gear Ratio
6 Precision Miniature Bearings
2 times the squeeze power
Universal left and right hand support
Double spring pressure adjustment
Metal gears Heat Treated Gears
Hardness HRC60
Warranty time greater than: 10000 hours
Setting Adjustment
1/ Need Adjust Motor drive voltage to 0.6v
2/ E-STEP
3Recommended Retraction Setting
DIRECT DRIVE :
Speed 5-10mm/s Distance: 0.5 mm
LONG-DISTANCE FEEDING FILAMENT :
Speed 10-20 mm/s Distance 1-2mm
more inf. User Manual
www.my3dtech.de

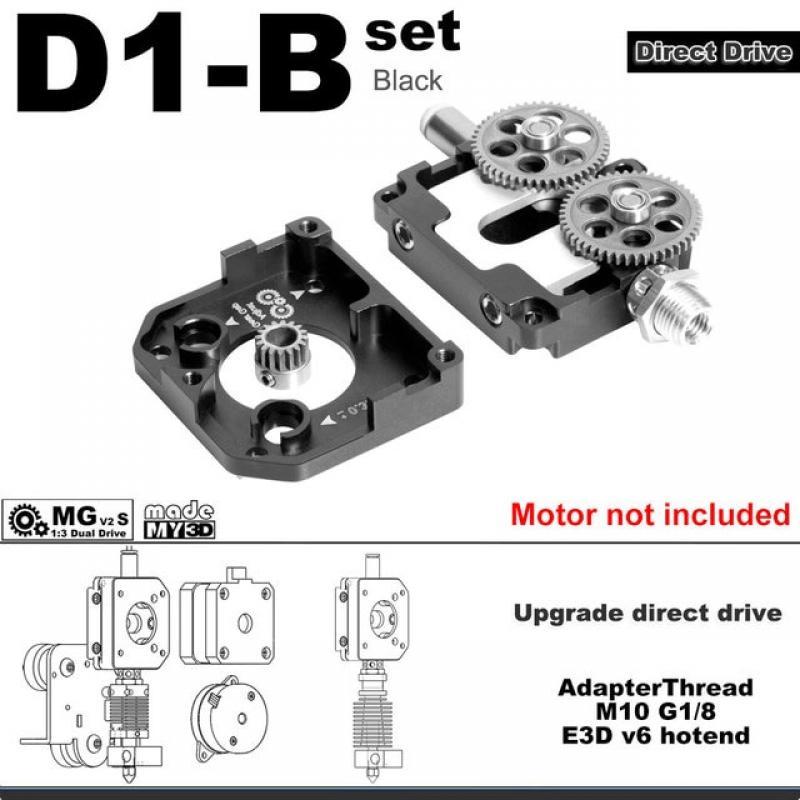

D1-B-SET
D1-B-SET does not include motor
Use the original 42 stepping motor E-step 363
It is recommended to adjust the voltage to half of the original value
DM1-B-set
DM1-B-set include stepper motors
Japan ASPINA step angle 0.9 E-Step: 726
Direct extrusion
DM1 D1 SET --Suitable for hot end
Hot end thread is M6*1 M10*1 1/8 such as commonly used E3D etc.
2 point direct drive
2 extruders work at the same time 2 times the power to feed the filament
On the basis of ensuring the movement of the filament, reduce the damage and breakage of the filament by the gear
Heat Treated Gears
Filament engagement gear material Die steel
Heat Treatment HRC60
Compatible Filament: Carbon Fiber TPU ABS ...
Warranty time more than: 10000 hours
Youtube
Thanks for providing the video installation video:
Sister Aurora Lung and brother Helios from Danville, California
https://www.youtube.com/watch?v=wx0FEp3uB2I
Dr. Igor Gaspar (mechanical engineer) as a teacher and researcher at MATE University, Budapest
https://www.youtube.com/watch?v=dvHlawF66Nw
Canal Tornillo
https://www.youtube.com/watch?v=GqHIPY4EYzY
Step angle: 0.9°
Customized Japan SHINANO ASPINA
Made in China
Model: SST36C1080-16
https://jp.aspina-group.com/ja/products/motors/cat01/001/
Weight: 95g
Gear clearance adjustment
1/ 4 pcs screws to rotate the fixed extruder and motor
2/ Adjust the gap between the motor gear and the extruder gear
3/ Standard: Free rotation without backlash
4/ Tighten the 4 extruder and motor screws
Adjust the spring pressure
Hold down the big gear, keep it still, pull the filament,
