MTBF:1 million hours
4KB Random Write:96200 IOPS
4KB Random Read:76400 IOPS
Max Sequential Write:2000Mbps
Max Sequential Read:2500Mbps
Transport Protocol:NVME
Bus Type:PCIe 3.0x4
Cache:NONE
RGB:YES
Cooling Fin:Yes
Package:Yes
Nand Flash Type:QLC
Controller:MAP1202/Realtek5765/RIS5765DL
Size:PCI-E
Interface Type:PCI Express
Application:Desktop,Laptop
Origin:Mainland China
Type:Internal
Style:SSD
Certification:CE
NVME(2280):80mmx22mmX3.5mm
Warranty:3 Years
Products Status:In storage
Feature:ssd nvme pcie,solid disk m2
Support1:wear leveling/Garbage collection/Over-provisioning/
Support2:NCQ/TRIM/ECC/HMB mode
word temperature::0~ 70celsius
Read life:unlimited
Support Capacity:512GB/1TB
Input voltage:DC 3.3V
Specifications:
※ Interface: M.2 pcie NVMe
※ SSD Capacity: 512GB/1TB
※ System support: Windows10、 Windows8. 1、windows 7、Windows xp、Windows 2003、Windows 2008、DOS、Linux、Unix.
※ High-quality QLC flash, combined with industry- leading high-quality controller.
※ With heatsink sticker, solve the temerapture problem
※ 3-year limited warranty.
※Quickness、stabilization、energy-saving、Mute、Light weight
※ Suitable for desktops,notebooks, mini computers, all-in-ones, and other commercial PC
※ The shock-proof, durable, and extremely reliable SSD represents the absolute best quality in the field.※ Application: Desktop、Laptop、Ultrabook、Computer integrated machine
Read Before Purchase:
512GB : Read (max) up to 2550MB/s / Write (max.) up to1471MB/s
1TBGB : Read (max) up to 2500MB/s / Write (max.) up to 2084MB/s
Special note 1 :available capacity ≠ identification capacity
The factory capacity of storage products is usually calculated according to 1MB=1000KB, 1GB=1000MB, and computer operating systems use binary algorithms, that is, 1MB=1024KB, 1GB=1024MB, so the usable capacity of storage products is about 90% of the identified capacity,normal phenomenon
(8G≈7.3G, 16G≈14.5G, 32G≈28.6G, 64≈58G, 128G≈118G, 256G≈230.4G, 512G≈476G, 1TB≈930G, 2TB≈1870G)
Special note 2: For Win 10 OS install, NVMe SSD can directly use, if for Win 7, need download Drive(Please download in Google or contact us)
Special note 3: Before order our SSD, please make sure motherboard must support and work in PCIe Gen 3.0 x 4 mode; if the motherboard does not support PCIe 3.0 and above, or the motherboard works in PCIe Gen 3.0 x 2 mode, the optimal speed cannot be achieved.
Notebooks with too old production years may not reach the specified speed. Notebooks with a relatively new production year and supporting PCIE3.0X4 are required to better reach the specified speed.You can use the CrystalDiskInfo software to test whether your motherboard meets PCIE3.0X4.
Special note 3: Before you use it please right click "My computer-Management-Device manager-disc drive" and can find our SSD. Please do the format and partition.
Suit For： Samsung X30，Dell G3，Lenovo y520，aspire 3 Acer，Dell 5175，Samsung book x50，Huanan X79，Lenovo I5ISK
Package inlcude:
1 X M.2 NVMe（The product contains heat sink）
1 X Screw
1 XPackage Box

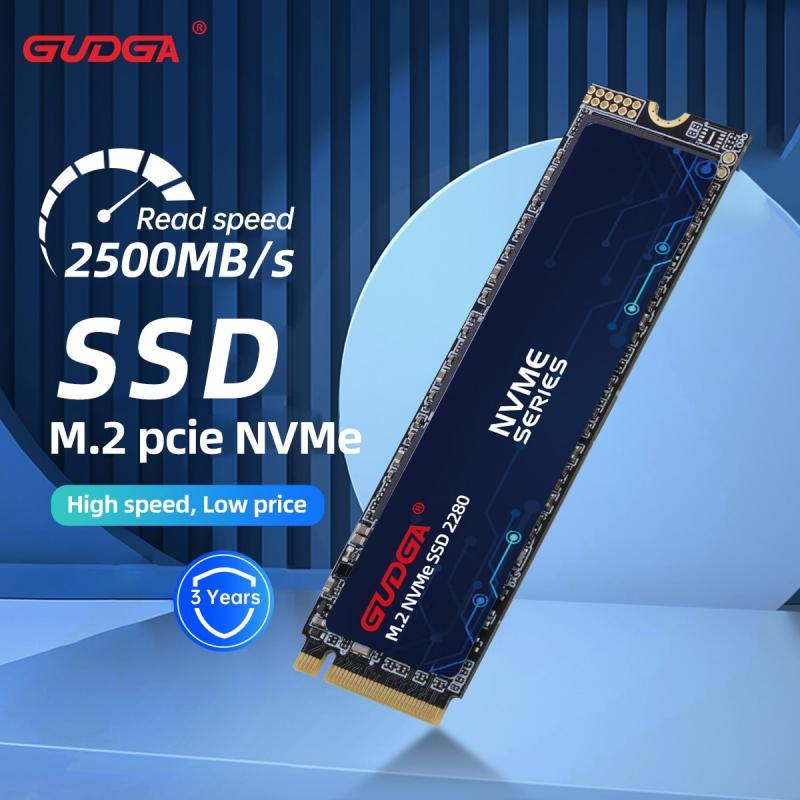

1.GudgaNVMe M.2 PCIe 2280 QLC SSD,High Speed & Rock-Solid Reliability.
GUDGA NVMe SSD delivers impressive speed and fierce data protection with sequential reads up to
2550
MB/s. Whether you’re at your desk, in the studio, or in game, m.2 nvme ssd includes advanced features like dynamic write acceleration, full hardware-based encryption capability, and adaptive thermal protection to help keep your data safe while enhancing system reliability.
2.
Soar to new heights,low power consumption.
GUDGANVMe SSD designed with M.2 2280 form factor (80 × 22 x 2.1 mm), M.2 NVMe SSD features the super compact size and case-less design that make it applicable for tiny-and-thin devices such as ultrabooks, tablet computers and mini PCs.ssd internal hard drive maximize gaming notebook and high-end computer's performance, and increase responsiveness
3.
Heat Spreader Label for Heat Dissipation.
This NVMeSolid State Drive enable superior heat dissipation. What's even more exciting is that it can automatically monitors and maintains optimal operating temperatures to minimize performance drops. M.2 SSD works with low power consumption and quicker loading time.The single-sided design makes SSD one of ideal for thin notebooks and systems with limited space.
4.
Amazing data transfer.
Equipped with high-quality synchronous NAND flash chips, GUDGAM.2 2280 NVMe SSD enables impressive transfer rates to offer you an instant upgrade solution whenever it comes to the daily computing applications or demanding multitasking. Meet your need for speed with PCIe, using the NVMe protocol and M.2 interface for more efficient data transfer.
The test speed is for reference only. The specific speed is subject to the actual test
