Itercom:Yes
Power:Dry battery
Display:Color
Feature:Video,Photograph
Connection Type:Wireless
Item Type:Peephole
Alarm:Yes
Origin:Mainland China
Certification:CE,RoHS,FCC
Smart home platform:Tuya,Other
Screen size:4.3 inch
waterproof:yes
Model number:HD peephole visual doorbell
resolution:1080P
Camera:Million HD pixels
installation:Wall Mounting
Battery:Rechargeable 3000mA lithium battery
Consumption:Ultra low consumption
Chip:Hisilicone
Storage:TF card/Smartphone/Cloud
OS System:Lite OS
Additional Speaker:support
WiFi:WIFI 802.11 b/g
Wake up:Push Button/PIR/APP
Angle of camera:120 degree wide angle
Night vision:IR Cut/6 IR lamps
Intercom:Support
Material:Alloy
size:126mm*69mm*28mm
weight:0.32KG
APP support:IOS and Android
PIR sensor alarm:Support/sensitivity adjustable
Tuya 1080P WiFi Video DoorBell Eye Peephole Camera 5000mAh Audio 4.3 PIR Infrared Alexa Google Digital Viewer 3MP Smart Doorbell
Good News: Order now, get 1pc gift of doorbell black data cable!!!
1,
Tuya APP itmes also support Smart Life APP
2.What are the differences between "Tuya","YCC365 plus items" and ""iCam365" items? How to choose?
A1:"YCC365 plus items" and "iCam365" have same functions,
but "
YCC365 plus" items are
2MP (
1920*1080P
)
resolutions,
"iCam365" items are
3MP (
2304×1296 Pixels
)
resolutions.
A2:Tuya supports more network companies' networks;
Tuya support 30-days cycle storage of cloud image message,
YCC365 plus / iCam365
only support 3 days;
YCC365 plus / iCam365 can record offline, Tuya support on above 9.0.6 version;
YCC365 plus / iCam365
can customize the recording time: 20s-40s-60s
, Tuya cannot adjust the recording time,only at 15 seconds;
YCC365 plus / iCam365 card videoes can be playback on app and on computer, Tuya only can playback on app.
*Please consider above differences to choose the item you want, thanks!
3, The doorbell must work with 2.4G WIFI of router, can't work with 5G WIFI, if your router has both 2.4G and 5G, please close the 5G firstly then connect it to the APP,
after success, you can open the 5G WiFi for normal use, thanks!!
4, The doorbell is suitable for: 40-120mm thickness of door, peephole is 16-50mm, and the cable installation length is 11cm.
Not suitable to: double doors, doors with small windows or steel mesh, soft-packed doors, doors without peepholes (need to drill a peephole by yourself)
WiFi connection & HD peephole, remote intercom, suitable for IOS and android smartphone.
4.3 inch high-definition LCD screen
Quick access via app (automatically wakes up within 3 seconds)
Respond to users access demands within 1 second
2pcs IR Leds, support 2-way audio with noise cancellation
APP support iOS & Android
Automatic take a picture & video recording when visitor press doorbell
PIR motion detect alarm
Cloud storage function
Support max. 128GB TF card to save video recording (not included)
Note: Device only support FAT32 format TF card; above 64G, please convert the format on your computer to be FAT32 format!
Built-in lithium 5000mAh battery and easy charge by USB
No need charge within 6 months
The newest design case-weatherproof
Easy installation (no need any cable), just wifi connection
LCD Display Size: 4.3 inch
- Image Sensor
Solution: OV9712 CMOS Sensor + Hi3518E SoC
Focal Length: 1.7mmAngle of View:120 degreewide angle
- Audio
Input/Output: Built-in microphone&speaker
Type: 2-way audio with noice cancellation
- Video
Video Compression: H.265
Resolution: 1920*1080P@25fps
Stream: Double stream
Night Vision: 2pcs IR-LEDs
- Alarm
PIR Motion Detect: Yes
- Network
Protocol: P2P
Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n
- App
Support: Android,IOS
- Storage
Mobile Phone Memory: Yes
SD TF Card: Support Max. 128GB
(not included! please use above C10 high speed in FAT32 format TF card for the doorbell )
Cloud Function: Yes
- Power
Power Supply:
Built-in Lithium Battery and EasyCharged by USB
Charging Port: Micro USB
- Consumption
Working Mode: 380mA (IR on)
Standby Mode: 200uA
Physical:LCD
Dimension: 140*82*20 mm
Camera Machine: 64.5*64.5*16 mm (copper)
Weatherproof: Yes
User Accounts: Total 4 Users
Working Temperature: -20℃ to 55℃
Relative Humidity: 85% non-condensing

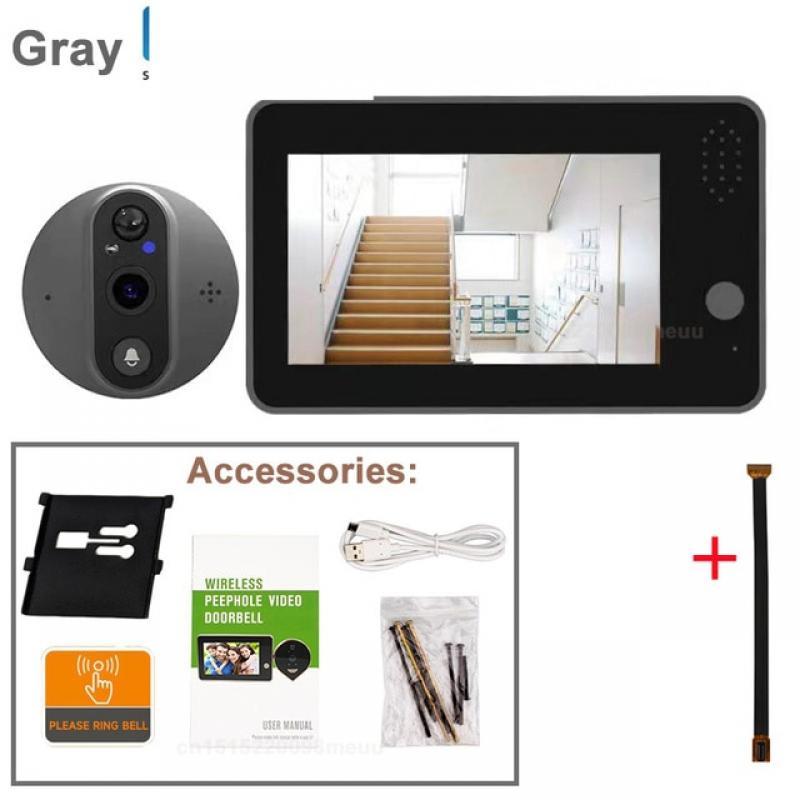

1x WiFi Peephole Viewer (indoor)
1x Doorbell (outdoor)
1x Micro USB Cable
1x Mounting Plate
1x Screw Kit
1x User Manual
1x Doorbell Cable (
gift
)
Notice:TF card is option !!!
RFQ
Q1.Can I use Tuya app to YCC365 plus app doorbells items? Can Tuya app items doorbell also can use YCC365 plus app?
A1:No, can not.
YCC365 plus items: only support "YCC365 plus" app, can not use other app.
Tuya items: can not use YCC365 plus app, but tuay iems also can use "Smart Life" app.
Q2.What is the different between YCC365 plus items and Tuya items? How to choose?
A2:Tuya supports more network companies' networks.
YCC365 plus does not support few small network companies with restricted ports, which will lead device connect to the APP failed, you can contact us to test your IP in advance;
Tuya support 30-days cycle storage of cloud image message,
YCC365 plus only support 3 days;
YCC365 plus can record offline, Tuya support on above 9.0.6 version;
YCC365 plus can customize the recording time, Tuya cannot adjust the recording time,only at 15 seconds;
YCC365 plus card videoes can be playback on app and on computer, Tuya only can playback on app.
*Please consider above differences to choose the item you want, thanks!
Q3.What battery is used in the doorbell? How long is the standy time?
A3: Built-in lithium 5000mAh battery and easy charge by USB 5V 1A;
standy time 3 months (PIR alarm is not turned on),
After the PIR alarm is turned on, the battery can only last about 600 times at most, the usetime is about 20~30 days normally.
Q4. I bought TF card with doorbell, but I did not find the TF card?
A4: TF card is sticked on the side of doorbell box, please kindly check and find it.
Q5. How many video recordings 32GB TF card can have ?
A4: For 15 seconds video recording, it's about 14300 records, which can be used for 715 days according to 20 records per day
Automatic overwrite when TF card is full, or format the card in the APP
