RAID Supported:YES
Processor compatibility:AMD Ryzen 5000 Series-R5,AMD Ryzen 5000 Series-R9,AMD Ryzen 5000 Series-R7
Usage Scenario:Gaming,Office
Special Function:NONE
Back I/O Ports:VGA(D-Sub),HDMI 2.0
Support USB Type:USB 2.0,USB 3.0
Max LAN Speed:1000Mbps
Onboard LAN:1x RJ45
Audio Channels:5.1
Number of SATA Ports:4
Storage Interface Type:SATA,M.2 (NVMe)
Number of PCI:2
PCI - E standards:PCI - E 4.0
Number Of Memory Slots:2
Support Memory Type:DDR4
Memory channel:Double
Package:Yes
Maximum Ram Capacity:64 GB
Form Factor:Micro-ATX
Chipset Manufacturer:AMD
With CPU:No
Chipset:AMD B550
Application:Desktop
Socket Type:Onboard CPU
Origin:Mainland China
Mainboard:B550-VH-W
CPU Pins:Support AMD AM4 processor, limited power consumption 125w
Memory Standards:DDR4 2133/2400/2666/3000/3200/3400/3600

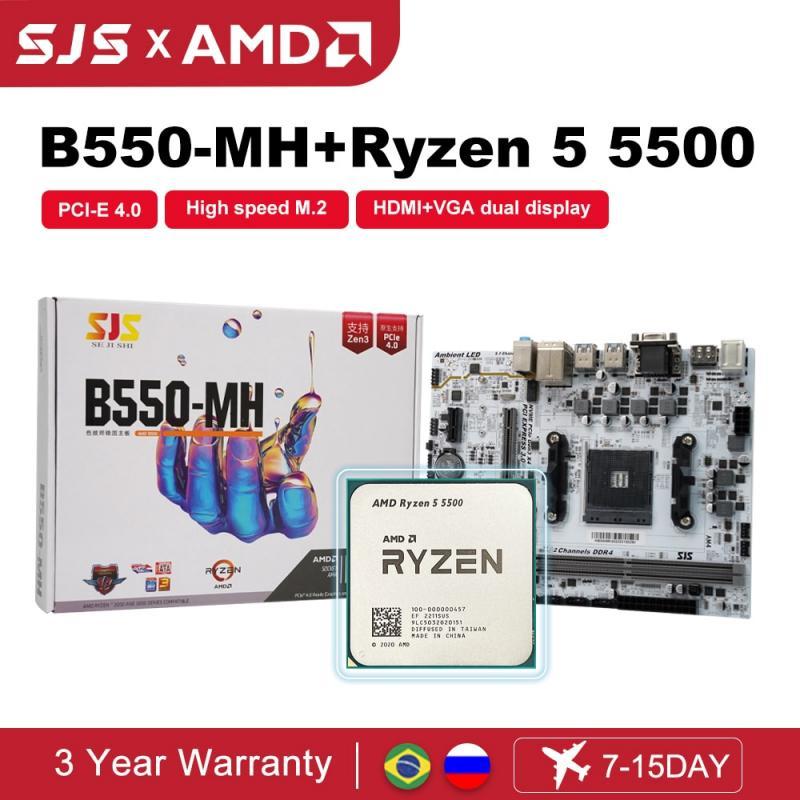

SJS New AMD B550M Motherboard + AMD New Ryzen 5 5500 R5 5500 3.6 GHz 6-Core 12-Thread CPUMicro-ATX B550DDR4 64G placa mae
we will take out the battery for safe ship it.
Model: B550-MH(Without Battery)
CPU Model: AMD RYZEN 5 5500 (Without Cooler)
Professional Service；if you need match CPU, Please contact us.
（3600 /4650G /5500 /5600 /5600G /5600X /5700X /5700G /5800X /5900X /5950X）
B550-MH
Main Chipset:AMD B550
Support AMD CPU type: AMD Ryzen 3000/4000/4000G/5000/5000G series processors，Limited power consumption 125w）
CPU socket: Socket AM4
Memory type: 4×DDR4 2133/2400/2666/3000/3200/3400/3600
Maximum memory capacity: 64GB
SATA: 1×M.2 SSD(PCIe NVMe)+4×SATA 3.0 6Gb/s
USB interface Back: 4×USB3.0+2×USB2.0
Video interface: 1×HDMI + 1×VGA
Power connector: 24+8
Other interfaces: 2 x PS/2 key/mouse tray interface, 1 x RJ45 interface
Mainboard form factor: Micro ATX
Dimensions: 225mm×180mm
Note:
1.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
2.We promise to test and deliver the order you submitted within 24 hours
