Model Number:ESP32 SHIELD
Origin:Mainland China
Type::Voltage Regulator
Operating Temperature::-25℃ to +65℃
Application::Computer
Supply Voltage::DC 6-9V
Dissipation Power::0.3W
Product Description
ESP32 V1 Shield

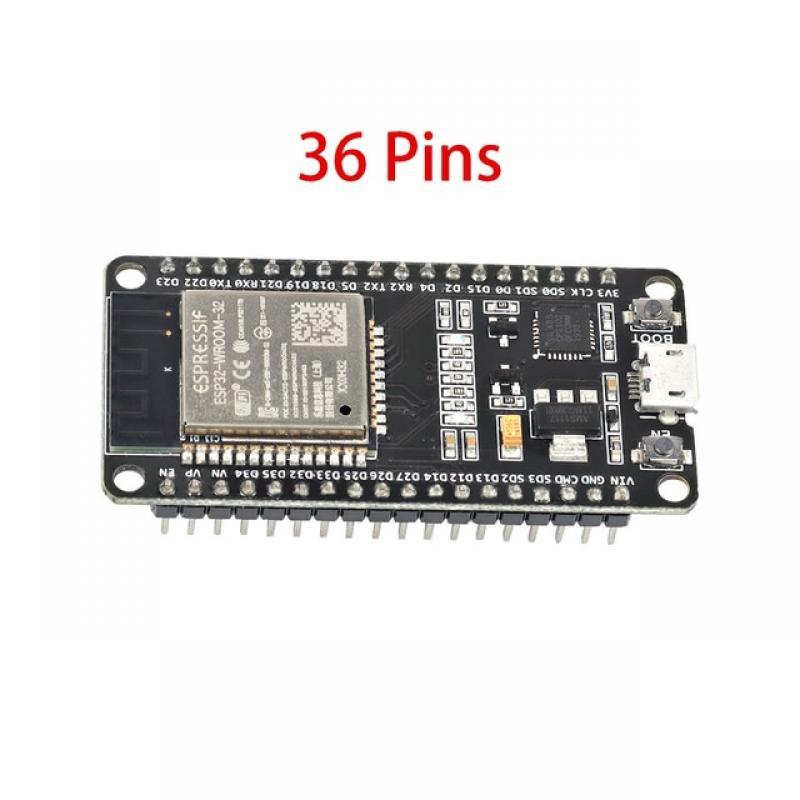

This extended version of ESP32 V1 is fully equipped with the ESP32 DEVKIT V1 main control board;
Features:
This expansion board has a built-in regulated 5V protection circuit, which can be connected to an external power supply voltage of 5-9V.
The extension header has 5V 3.3V signal pin S. Almost all functions are expanded using pins to facilitate access to external devices.
The 3.3v voltage of this expansion board is provided by the built-in regulated 3.3V protection circuit of the external ESP32 DEVKIT V1 main control board.
