Camera Equipped:Yes
State of Assembly:Almost Ready
Model Number:JR-ZDSE01
Compatibility:All Compatible
Origin:Mainland China
Certification:CE,RoHS
Type:ZigBee smart light switch
Standard:DIY smart switch
Shell Material:PC/Flammability Rating: V0
Rated Voltage:100~240V 50/60Hz
Rated Current:16A
Size:39.2*39.2*18mm
Physical Two-way Control:Supported
ZigBee Standard:IEEE 802.15.4
Operation Humidity:≤90%
Operation Temperature:-10~40℃
App:TuyaSmart/Smart Life
Voice Control:Alexa /Yandex Alice/Hey Google
Hub Requirement:Tuya ZigBee hub required
Rated Power:3520W
ITEM DESCRIPTION

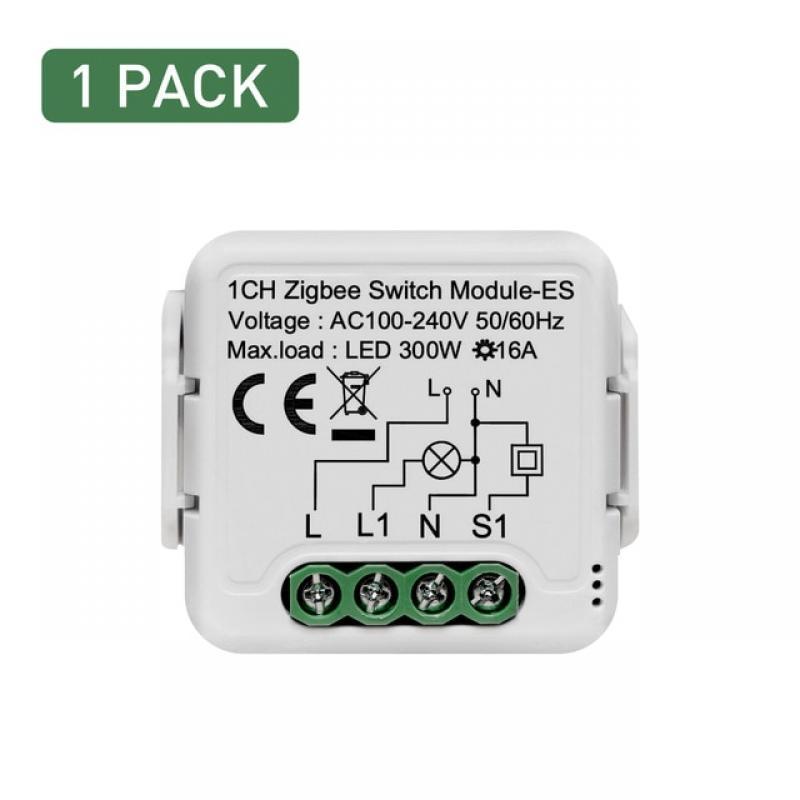

Mini Body
Designed 39.2*39.2*18mm mini body, which is working with most of mounting boxes.
It is not only small, but also powerful. it can be used for most of home appliances and lighting.
Energy Metering
The switch can record power usage in real time. You can view the monthly electricity consumption with the APP, which is convenient for you to make electricity consumption plans to reduce electricity bills.
Support Two-way Control
This smart DIY switch could be used for your old 2 way control switch. Especially, you still available to control the old switch manually after isntalled it.
App Remote Control
Remote control lighting or home appliances via Smart Life app from anywhere at anytime.
Voice Control
The ZigBee DIY switch works with Alexa, Hey Google and Yandex Alice to conveniently control your home appliances with simple voice command when you are on go.
Timer Schedule
Create schedules to automatically turn the home appliances or lighting on/off. Helping you saving energy and electric fee.
Relay Status Setting
Never worry about power failure, you can set this switch to restore the state after power on.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
Group Control
Set all of your smart switches in a group by Smart Life app. Then one-click to turn/off all of your appliances or lighting by smartphone.
Tuya ZigBee Hub Required
A Tuya ZigBee hub is a must to the ZigBee smart switch for app remote control and voice control. Also, you can link other Tuya ZigBee products with the hub to realize a complete smart home system for your house.
SPECIFICATION
Shell Material: PC/Flammability Rating: V0
Rated Voltage: 100~240V 50/60Hz
Rated Current: 16A
Rated Power: 3520W
Size: 39.2*39.2*18mm
Physical Two-way Control: Support
ZigBee Standard: IEEE 802.15.4
Operation Humidity: ≤90%
Operation Temperature: -10~40℃
App: TuyaSmart/Smart Life
Voice Control: Compatible with Alexa Yandex Alice and Hey Google
Warm Tip
If the power monitoring function is not working, the problem is that your Tuya ZigBee hub needs to update.
Please contact to our after-sales and send the PID of the Tuya ZigBee hub. We will push a update notification to your app soon, then the problem will be solved after updated.
FAQ
1. Can it work with Alice?
Yes , it works with Yandex Alice
2. Can it record the power consumption reports of home appliances?
Yes, it has power monitoring function.
3. Does this module need a gateway?
Yes, it is Tuya ZigBee hub required.
4. Can I control it when I am on vacation or on business?
Yea, you can control it by app anywhere and anytime, pls don’t worry.
5. Does this smart switch have power failure memory function?
Yes, it has.
