Itercom:Yes
Power:Dry battery
Display:None
Feature:Photograph,Video
Connection Type:Wireless
Item Type:Video Doorbell
Alarm:Yes
Origin:Mainland China
Certification:CE,FCC,RoHS
Smart home platform:Other,Tuya
Product Name:Wireless WiFi Doorbell Camera
Application:Tuya Smart/ Smart Life
Power Source:3*18650 Battery/ USB Charging
Color:Black/Silver
Material:ABS
Function:Chime Optional
Features 1:Waterproof
Features 2:2.4G Wireless Wifi
Features 3:APP Supported
Features 4:PIR Motion Detection
Features 5:Night Vision
Features 6:Wide View Angle
Features 7:2-Way Audio in APP
Features 8:Real-Time Monitoring
Resolution:720P/1080P

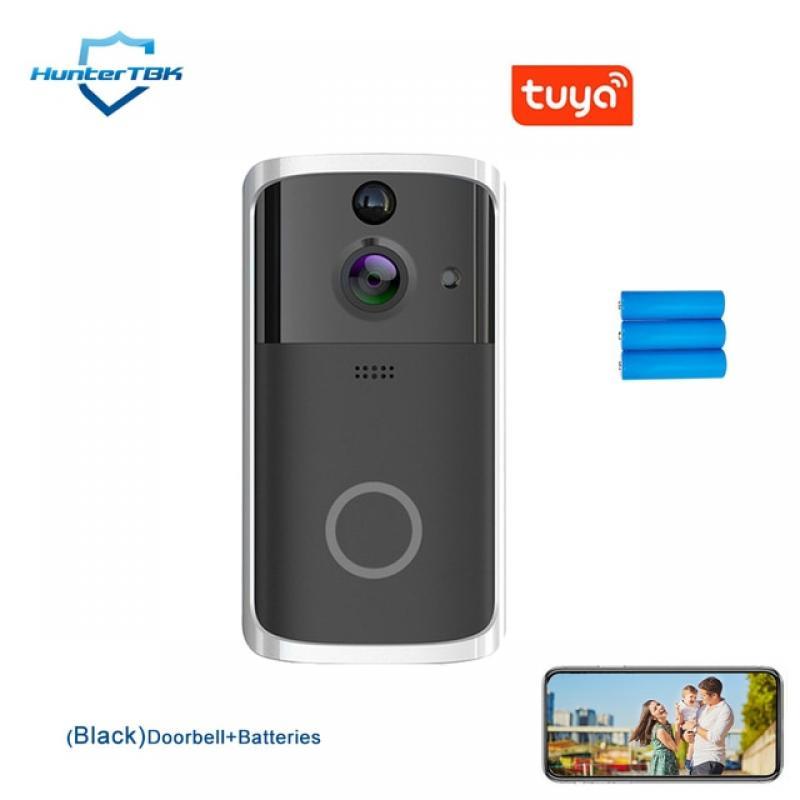

Tuya Video Door Bell Wifi Wireless Doorbell Smart Camera Door Phone Intercom with Motion Detection Waterproof for Home Security. Support Tuya Smart or Smart Life APP.
1. Package: 1×Doorbell, 1×Chime (optional), 3×18650 Batteries (optional), 1×Manual, 1×32G SD Card (Optional),1×double-sided tape and Screws and Tools.
2. Wide angle lens (Diagonal angle of 166 and Horizental angle of 120); The video resolution Up to 720P/1080P 30fps (Options as you select).
3. Wireless connection, quick start, low power consumption. Long standby time.
4. Support five modes (infrared night vision,back light compensation, strong light fitting, Fast motion, wide dynamic)
5. 3 kinds of wake-up mode (mobile phone active wake-up, doorbell button wake-up, PIR body detection wake-up)
6. Support two-way intercom, voice real-time dialogue. P2P transmission, safe and reliable, PIR mobile alarm.
7. Supports up to 64GB capacity, and USB power supply (Not indcluded in the package)
8. The chime should be plugged into the power source in the house.
Tips:
1. This wireless doorbell camera works with only 2.4GHz network, Not a 5GHz network.
2. Keep the doorbell in the range of the Wifi signal. Thick or insulated doors will reduce the wifi signal strength even if your router is nearby.
3. When entering the product password, please check whether the password is correct, otherwise the device cannot connect to the APP succesfully (Remember to reset the doorbell before the wifi configuration)
4. Please full charge the batteries for 5 hours before the wifi connection. Low power may influence the function of the video doorbell.
5. The micro SD card slot and USB slot are in the cover on the top of the doorbell, please push the cover and get if off to insert sd card or charge it. 6. The video doorbell can only be connected to one APP user directly but can share to other family members after 1st one connection.
7. If the message is not pushed, please check whether the notification permission of the mobile phone and the software are turned on.
Important Notes:
When use AC/DC 12-24V input, please make sure the batteries were put inside the doorbell. AC/DC 12-24V is only used to charge batteries, not power supply the doorbell directly.
How to Install ?
Step 1: Remove the back bracket. Use 4 mounting screws to fix the back bracket onto your door or wall. You can also use double-sided tape to fix the back bracket.
Step 2: Fit the doorbell into the back bracket. Use the provided security screw to secure the doorbell, so the doorbell cannot be removed easily.
Notice: Please check live preview to find the best height to install your doorbell. We recommend not below shoulder height.
