Zone Number:99
Alarm Type:The Alarm,SMS,PSTN,Apps Control
Output Number:5
Model Number:W204
Power:DC5V
Connection Type:Wireless
Video Interface:No
Display:Yes
Password Keyboard:Yes
Origin:Mainland China
Smart home platform:Tuya
Certification:CE
Wireless frequency::433MHz
Backup battery::3.7V large capacity lithium battery
Siren loudness::80DB (built-in siren)
System Introduction
Chapter 1 System Introduction This alarm system uses a 2.4-inch TFT color screen and touch buttons, with a powerful built-in CPU main control, and good operability. It is a high-end GSM/WIFI dual-network alarm, supports 4G network, and has stable and reliable performance. The host wirelessly connects infrared, door sensor, smoke detector, gas detector, emergency button and other accessories. When the alarm receives an alarm, it will display the alarm zone on the color screen, sound an alarm on the spot, and send text messages and call the user's preset phone number to notify the user.
High-end alarm with stable and reliable performance
2.4-inch TFT color screen and touch keyboard with built-in powerful CPU master and excellent operation experience ，Reduce false Alarms
Alarm puts whole-home security at your fingertips
Get alerts on your smart phone when doors or windows open or motion is detected
Accurate Alerts
If thieves invade, alarm system will issue 80dB alert ,warn neighbors and deters potential intruders Built-in Siren and With 80db wired siren
Remote Control, Anytime, from Anywhere
With a free IOS/Android smartphone app, it can be easily controlled by arming, disarming, and home modes with also a simple remote control & RFID Card
More Convenient
RFID Card to disalarm
24/7 Days Of Professional Monitoring
If it loses power, it has backup battery to support 8 hours working
Easy to communicate
Host can call other phones directly as a common phone
No emergency information missing
Auto-dialer function will call up to 6 designated phone numbers in case of a security breach
8 Language Selection
English,Russian,Spanish,French,Portuguese,German,Ltalian,Chinese
WIFI Connection
Connece to router through mobile APP settings ,The you can remote control by Tuya Smart APP anywhere anytime.
Customize Alarm for your needs.
Compatible with wireless PIR sensor, door sensor, smoke detector, gas detector, panic button etc. It has been widely used in home, factory, school, shop, villa and residential area to provide protection for valuable assets
Customize Ring Alarm for your needs
Compatible with wireless PIR sensor,door sensor,smoke detector,gas detector,panic button etc.

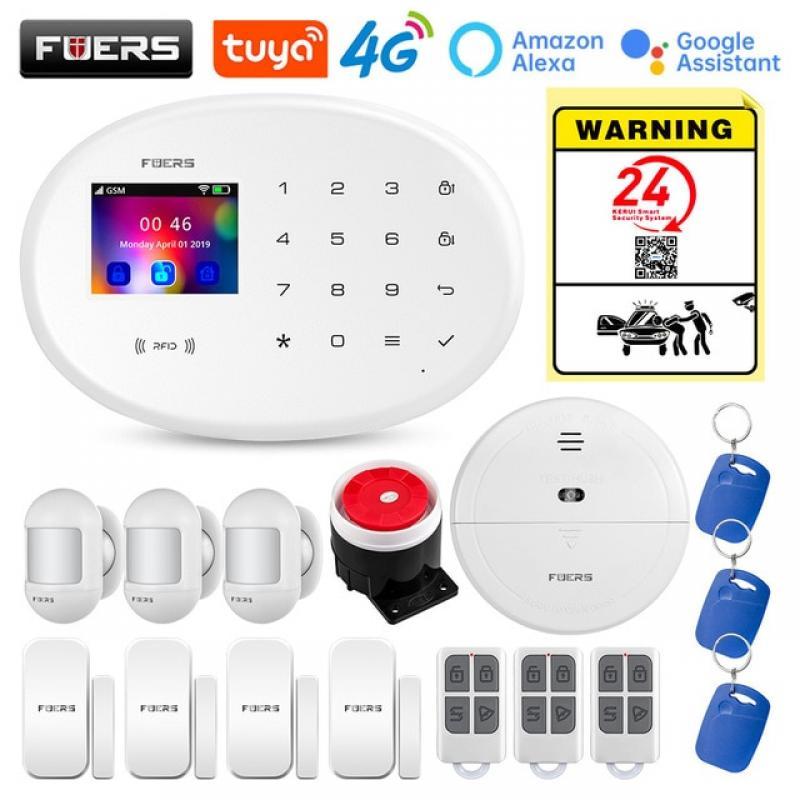

Product detail presentation
Technical Parameters
Input Voltage: DC5V
Standby Current: ＜50mA
Alarm Current: ＜450mA
Wireless Frequency: 433MHz
Back-up Battery: 3.7 High Capacity Lithium Battery
Alarm Volume: 80dB (built-in siren)
Code: EV1527
Resistance: 150K-470K.
Module system: GSM , TD-SCDMA,CDMA,WCDMA,TDD-LTE and FDD-LTE
The W204 control panel only supports EMEA regions and countries.
Telecom (calling card) signal support frequency band
The W204 control panel 4G needs the support of VOLTE or GSM, and there are some cases in the EMEA region where the SIM card cannot be used to make calls. It can only be used to connect to the APP using WIFI, and judge according to the signal frequency band.
Q&A
1、
Q： Can the calling card use 5G, 4G, 3G, 2G (GSM)?
A： The calling card only supports 4G and 2G (GSM), but does not support 5G and 3G.All the signals (5G, 4G, 3G, 2G-GSM) are available if you are in the area. then you can use it.If the operator does not provide the VOLTE function, you must have a GSM signal to make a call (either GSM or 4G VOLTE).
If the customer's region and the operator they use do not support 4G VOLTE and GSM, they cannot receive or make calls.
2、
Q：Why do I only receive an alarm text message after binding my phone number to my phone card, but no phone call?
A：You need to see your country and address, whether the calling card supports VOLTE or GSM support. In the EMEA region, there are also some cases where the phone cannot be answered. If the phone card does not support phone alarm, then the alarm information can be pushed through the APP.
3、
Q：How EMEA is divided into countries and regions
A：EMEA is the abbreviation of Europe, the Middle East and Africa, which is the collective name of the three regions of Europe, the Middle East and Africa.
