Model Number:Garage door opener
Origin:Mainland China
Certification:CE
Name:Gate Keychain
Model:Garage Remote Control
Frequency:433MHz 433.92MHz
Encoding Type 1:Learning Code(1527)
Encoding Type 2:Fixed Code(2262)
Use:Garage door, gate
Key words:Remote Barrier

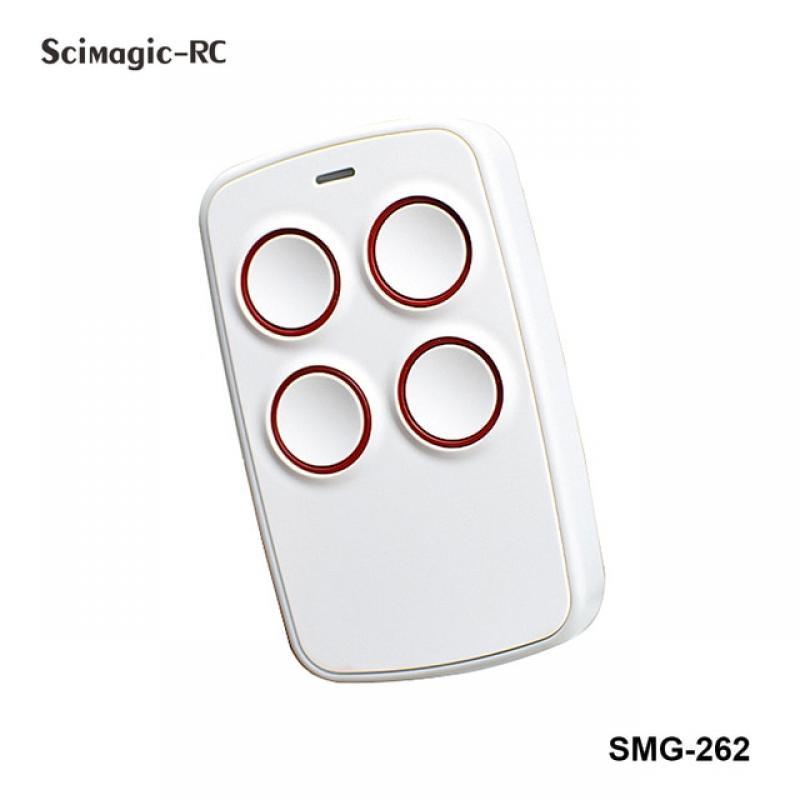

Universal 433.92Mhz 433MHz Duplicator Copy Remote Control Fixed Code
This is a fixed frequency remote cloner (433.92mhz) for copying 99.99% common fixed and learning code remote controls.
Duplicate Your Existing Remote Controllers so you always have a backup:
1. Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
5. Car sunroofs
6. Car/Motorbike alarms
Clone up to 4 remote signals from 4 different remotes!
Specifications:
1. Type of programming: Sely copy
2. Material : ABS & Metal
3. Frequency : 433.92MHz. 433MHz
4. Code:Fixed code
5. Buttons : 4
With this remote cloner you can clone all 433.92MHz fixed code key fobs.
Cloning chip types:
2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.
Note:
It is not compatible with 433mhz rolling code.
How to Program - it's easy!
Face to face copy your original remote control
Step:1:Clear the history code from duplicator
1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.
Step 2,Copy code from original transmitter
1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.
Button A = Lock button
Button B = Unlock button
Include:
* Remote Control
* Battery
* Keychain
* English Manual
