Viewing Angle :85°
Lens (mm):3.6mm
Connectivity:Closed System/CCTV Wired

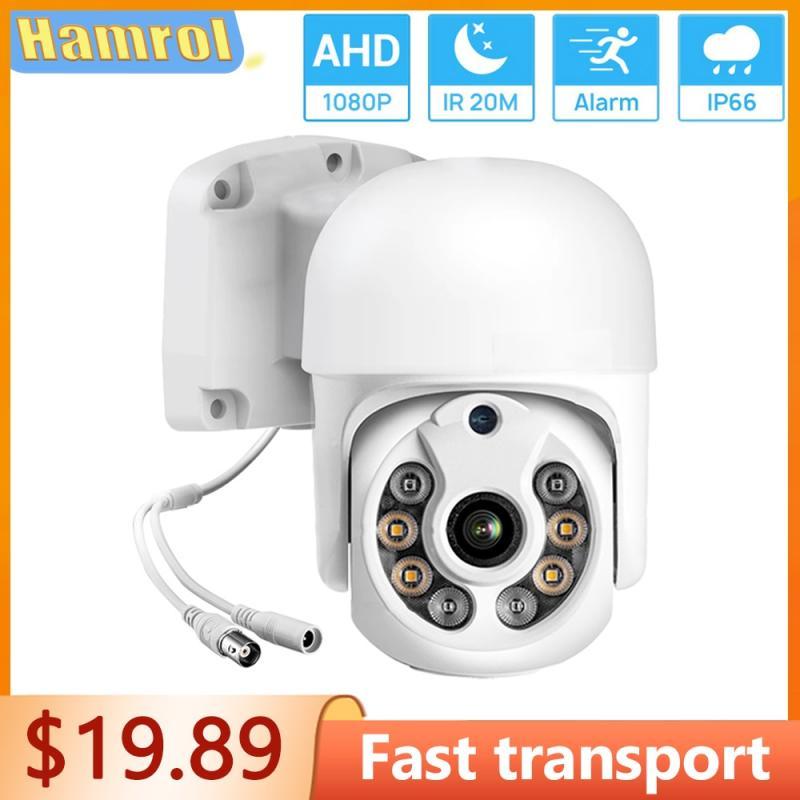

Style:Dome Camera
Sensor:CMOS
Focal Length:3.6mm
Installation:Side
Technology:Infrared
Model Number:XMA20
Origin:Mainland China
Certification:CE
Resolution:HD 1080P
Pan/Tilt:350 °/ 90°
IR Distance:Max 30M
Recommend
Main Features:
*Image sensor: 2235 CMOS Senor
*Resolution:HD 1080P
*Lens: 3.6mm fixed lens
*PAL/NTSC optional
*Pan / Tilt: rotates 350 degrees left and right and rotates 90 degrees vertically
*IR distance: 4 PCS array IR LED,max 30M Nigthvision
*IR cut minimal illumination: 0.1Lux(Day) ,0.01LUX(Night)
*High quality ABS plastic housing:standard IP66 waterproof
*Power supply:DC12V 2A
*Operating Conditions: -30℃ ~ 60℃ ,Humidity 90% or less (non-condensing)
Packing Included:
1x Camera
1xScrews
HD 1080P Resolution
2.0 megapixel cmos senor,provides Sharp and good image captured than 720P.
IP66 Waterproof
ABS plastic housing,professional waterproof design,Outdoor waterproof, Good sealing.
Pan/Tilt Contol
The camera can be rotated 350 degrees horizontally and rotated 90 degrees vertically .The dvr can control the rotation angle of the gimbal and see the direction you want to see.
IR Nightvision
The smart IR-Cut filter switches automatically between day and night,4pcs powerful arry LED 30m IR distance
XVI Coaxial Control
Support the XM DVR XVI function,Rotate the camera without RS485 Connector.
Connect with at least AHD-NH DVR
This camera is 1080P AHD camera, should connect with AHD DVR at least AHD-NH,can't connect with TV monitor directly or AHD-L DVR.
