Output Power(w):3w-5w
Battery Capacity(mAh):1400
Waterproof / Water-Resistant:No
Storage Channel:200
Frequency Range:Dual band VHF 136-174MHz & UHF 400-470MHz
Dimensions:116x53x36mm(without antenna)
Model Number:RT85
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:1.5km-3km
Origin:Mainland China
Certification:CE,FCC
Weight:234g
Type:Analog walkie talkie
Display:DOT-MATRIX LCD display
VOX level:1-7
FM Radio:24 stations memory
CTCSS/DCS:62.5-754I
Power:1W/5W
Working Voltage:DC 7.4V
Working Temperature:-10℃~+50℃
Antenna Connector:SMA-M
Usable programming cable:C9018A / C9055A
Audio Connector:Compatible with Kenwood K Pin
Mic Gain:1.5dB
Scanning:Channel/Carrier
Squelch:1-9
T0T:270S
Step spacing:2.5/5/6.25/10/12.5/25/ 50/100KHz
Compatible Handheld Speaker Microphone:C9001A / C9021A
CHIP:BK4815

Note
After you receive RT85 walkie talkie, if its frequency range can't reach 136.000-174.000MHz & 400.000-470.000MHz , frequency range doesn't fit with description,
or failed to enter VFO mode(realize VFO function)
,please press F button and 1 button and turn on RT85 at the same time, then it will be ok.
Description:
1.Dual band, dual display, dual standby
2.DOT-MATRIX LCD display
3.200 channels storage and scanning
4.FM Radio and 24 stations memory
Feature:
1.A/B band independent operation
2.Wide/Middle/Narrow band selectable
3.VOX (1-7 grade setting)
4.CTCSS/DCS
5.Scanning
6.1750Hz tone
7.Shortcut menu operation mode
8.Emergency alert
9.DTMF and remote stun/kill/activate
10.ANI function
11.8 group of scrambler
12.2 Tone /5 Tone
13.Multi types for keys lock setting
14.Multi display mode
Introduction to Retevis RT85
The Presentation to RT85 Structure
DOT-MATRIX LCD Display
Dual Band/Dual Display/Dual Standby/Large LCD Screen/Multiple Display Modes allowing you to easily grasp the working status of the walkie-talkie.Corresponding icons will be shown on the screen when the functions start.Such as battery status,channel number,frequency,TX/RX power,scanning,dual watch/standby active,DTMF,Repeater shift direction,2 tone/5 tone,etc.
Note to Icons on Screen
Program Manually in VFO Mode
Without being bound by the computer, you can input frequency by keyboard, select CTCSS, and store channel.Short press [#] to switch into VFO mode.
Super Quality Chip -- BK4815
Adopting well-made intelligent processing chip-BK4815,reducing circuit heat, increasing programme speed and stability,more settings can be finished only through RT85 without programming software,Retevis RT85 overall works better than Baofeng UV5R.
Emergency Alarm
"F" + "#" key to activate the emergency alarm function.
Local / Remote Alarm, help quickly call your partners for help in an emergency when you are outdoors.
VOX Hands-free Control
Free your hands and no need to press PTT button,easy to reply.
Rich Flexible Signaling System
Support CTCSS/DCS/DTMF/2 Tone/5 Tone,etc,shield irrelative calls,realize remote stun,remote kill, remote wakeup.Safe vocal transmission,guards your privacy.
Frequency/CTCSS/DCS Scan
Unique frequency/CTCSS/DCS scanning function can help accurately find active calls.
Support CHIRP Software Programming
From here to enter downloading page: https://bit.ly/3koVbzE
High Brightness Flashlight
Best option for outdoor activities in dark environments or nights,such as camping in forest,hunting,or basements,night patrol,etc.
FM Radio 64-108MHz
Support up to 24 FM stations storage.In leisure time,you can listen to favorite music,news,etc. At the same time you won’t miss any call when Dual Watch function is turned on.
1400 mAh Li-ion Battery
Intelligent Power Saving, Longer Standby Time
Long Range Two Way Radio
5W high-power and high-gain antenna,ensure clear and smooth communication at a long distance.
Multiple Scenario Application
Multiple functions and superior performance make RT85 suitable for more using environments,such as airsoft games,hunting,fishing,hiking,forest,mushroom picking,self-driving tour,security guard,ect.More popular among ham radio amateurs.
Basic Parameters

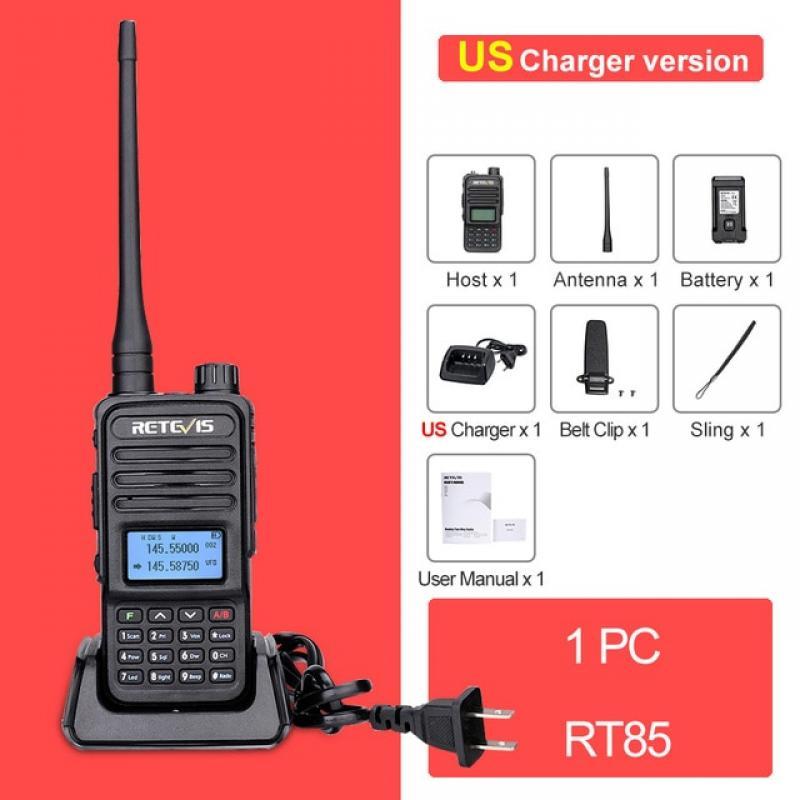

Package includes：
If you choose 1pc,the package includes:
·1 x RT85 Two Way Radio
·1 x Battery
·1 x Antenna
·1 x Charger
·1 x User manual
·1 x Sling
·1 x Programming cable (Optional)
If you need programming cable，please choose the options with a programming cable.
If you choose 2 pcs ,the package includes:
·2 x RT85 Two Way Radio
·2 x Battery
·2 x Antenna
·2 x Charger
·2 x User manual
·2 x Sling
·1 x Programming cable
Please choose right adapter according to your country.
FAQ:
1.Q：Why couldn't my RT85 frequency range reach 136 - 174MHz and 400 - 470MHz? How can I set it ?
A: 1.Restricted by the laws and regulations of walkie talkies in some countries or regions, 136 - 174 MHz and 400 - 470 MHz are not allowed.
2.RT85 frequency range supports 136 - 174 MHz and 400 - 470 MHz,but its factory default range is not this range.
3.If you need 136 - 174 MHz and 400 - 470 MHz, please press F button and 1 button and switch on power knob at the same time, then it will be ok.
2.Q:How to start emergency alert ？A: Press“F”button to enter menu and show “Menu”，and press "#"，you will hear alert sound,and press PTT to stop.
3.Q: How to start remote alarm？A:Programme two RT85 and they can talk with each other,press "F" and then press"#" on one RT85,you will hear alarm sound from the other RT85.
4: Q: How to turn on voice broadcast?
A: To tick √ on the “SW Audio”on the software,you will hear vocal broadcast, and when you cancel to tick √，you only hear dududu.
5:Q:Why PTT button fails to work when lock is on ?
A:To check whether you choose "PTT"or “ALL” KEY MODE by the programming software,if you tick √ on either of them,then PTT button will be lock at the same time when keypad lock starts.
Also,you can adjust by radio itself: Press “F” to enter “MENU” ,switch until “Lock MD KEY” (option 32) is displayed and enter, press up or down to select “ALL / PTT / KEY / KEY + S”
