Output Power(w):3w-5w
Battery Capacity(mAh):1800mAH (Li-Ion)
Waterproof / Water-Resistant:No
Storage Channel:RA685 128CH / RA85 60CH
Frequency Range:RA685: 144-146MHZ(RX/TX) 430-440MHZ(RX/TX) / RA85: GMRS
Dimensions:121*61*33mm
Model Number:RA685 Dual Band / RA85 GMRS
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:1.5km-3km
Origin:Mainland China
Certification:CE
RA685 TX power:5W/3W/1W
RA685 Channel Spacing:25/12.5kHz
RA85 TX power:5W/0.5W
RA85 Channel Spacing:12.5kHz
Operating temperature:-20℃ to +60℃
Charging Way:USB Type C charger
Walkie-talkie weight (Including antenna and battery):223g
Digital FM radio:Receiving 65 -108MHz
CTCSS:60.0 -259.9 HZ
Step frequency selection:2.5K, 5.0K,6.25K, 10.0K, 12.5K, 20.0K, 25.0K, 50.0K
Compatible programming cable:C9018A
Compatible handheld speaker microphone:C9001A / C9060A
Compatible earpiece:J9118A
RA685 Compatible antenna connector:SMA-F (only in RA685)
How to set RA685 EU VHF UHF Dual Band to full frequency full function mode?
If you don't know how to make RA685 ( EU UHF VHF dual band) realize full frequency full function mode,please watch this video.Any questions,please contact us.
Attention please,
1. The antenna of
RA85 GMRS is not removable
, which is glued with glue, maybe damaged by forcibly breaking it off.
2. While RA685 EU Dual Band antenna is removable.
Description:
•Frequency measurement function, View the frequency of other devices at any time.
•1.6-inch screen,Fashlight lighting function,FM, NOAA(only available for GMRS RA85)
•USB charging function, you can use the USB charging cable to directly charge the two way radio.
Features
1.
Frequency range:
RA685 :144-146MHZ(RX/TX) 430-440MHZ(RX/TX) RA85: GMRS
2
. Dual band, Dual Display, Dual Standby
3
. High, middle, and low power switching to meet the power requirements of users at different distances, more energy-saving and power-saving
4
. Up to
128 memory channels(RA685) / 60 memory channels (RA85)
for programming frequency and other various data.
5
. Multiple display modes such as channel number, frequency, channel frequency, channel name, etc.
6
. CTCSS/DCS, DTMF signaling, reject redundant calls from other stations.
7
. The tail tone is eliminated to avoid the impact noise from the speaker after the call is over.
8
. VOX voice-activated transmission, no need to press the PTT button to talk normally.
9
. Emergency alarm, ANI identification and other functions through DTMF.
1
0
. DTMF, CTCSS (60.0 -259.9 HZ), DCS signaling codec function.
1
1
. 8 step frequency selection (2.5K, 5.0K, 6.25K, 10.0K, 12.5K, 20.0K, 25.0K, 50.0K).
1
2
. Automatic power saving function to extend battery life.
1
3
. SOS emergency alert function.
1
4
. Computer programming function.
1
5
.
RA685 : Wide/narrow band (25KHz/12.5KHz) selection function.
RA85 : Wide/narrow band (12.5KHz) selection function.
1
6
. Digital FM radio (receiving 65-108MHz).
1
7
. Direct selection of keyboard numbers for menu items, the transmit and receive frequency can be manually input.
18
. Special CTCSS/DCS (frequency hopping function).
RA685 Frequency Range: VHF 144-146MHz(RX/TX) & UHF 430-440MHz(RX/TX)
RA685:128Channels,Dual band, Dual Display, Dual Standby
Up to 128 memory channels for programming frequency and other various data
RA685: 5W / 3W / 1W ,Adjustable Power
High, middle, and low power switching to meet the power requirements of users at different distances, more energy-saving and power-saving.
RA85: Frequency Range:GMRS,10 NOAA Weather Channels
RA85: 60 Channels,Dual Display, Dual Standby
RA85: 5W / 0.5W ,Adjustable Power
High and low power switching to meet the power requirements of users at different distances, more energy-saving and power-saving.
RA85: 10 NOAA Weather Channels
Keep receiving latest weather forecast; Please attention,NOAA function is only available for RA85,not for RA685.
RA685/RA85: Compact and Portable
Size(with battery, but without antenna):121×61×33mm , Weight (including antenna and battery):223g
RA685/RA85: Long Range Communication
Talking Coverage depends on environments,TX power,and battery power.With the help of a repeater,the talking distance will be longer.
RA685/RA85: 1.6 Inch Screen,Flashlight Lighting Function
Multiple display modes such as channel number, frequency, channel frequency, channel name, etc
RA685/RA85: 1800mAh Rechargable Li-ion Battery
Automatic power saving function to extend battery life
RA685/RA85: Convenient USB Charging Way
USB charging function, you can use the USB charging cable to directly charge this two way radio.
RA685/RA85: VFO Manually Input Frequency
Direct selection of keyboard numbers for menu items, the transmit and receive frequency can be manually input
RA685/RA85: Frequency Measurement Function
Frequency measurement function, copy the frequency of other devices at any time
RA85/RA685: Special Digital Mute Function
CTCSS/DCS,DTMF signaling code function reject unnecessary calls from other stations,CTCSS (60.0 -259.9 HZ)
RA685/RA85: SOS Emergency Alert Function
Emergency alarm, ANI identification and other functions through DTMF
RA685/RA85: VOX Function
VOX sound activated,no need to press the PTT button to talk,response in time
RA685/RA85: Digital FM Radio (Receiving 65 -108MHz)
Suitable for More Applicable Enivronments
RA685/RA85: Structure Presentation
Technical Parameters:
Please attention:
The antenna of RA85 with GMRS is fixed.
The antenna of RA685 with UHF and VHF is detachable,and should choose the antenna of SMA-F connector.

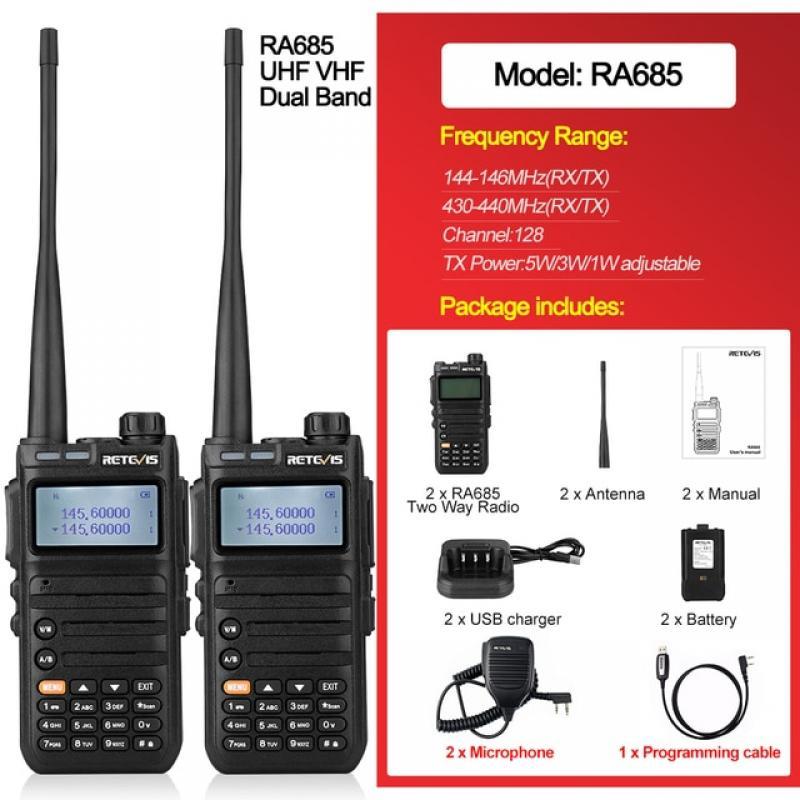

Package includes：
Standard package for 1pc:
1 x RA685/ RA85 Two Way Radio
1 x Antenna(RA85 GMRS NOT removable; RA685 EU removable)
1 x Battery
1 x Manual
1 x USB charger
Standard package for 2pcs:
2 x RA685/ RA85 Two Way Radio
2 x Antenna(RA85 GMRS NOT removable; RA685 EU removable)
2 x Battery
2 x Manual
2 x USB charger
Optional Accessories:
Programming Cable
Speaker Microphone
Questions & Answers
Q1:
How to set RA685 EU VHF UHF Dual Band to full frequency full function mode?
A1:
▶Press PTT + Key 5 to power on, the screen shows 【Amatuer】 is switched to (144-146, 430-440MHZ frequencies can be transmitted/received, and other frequencies can only receive and not transmit).
▶Press PTT+V/M key to turn on, the screen displays 【FACTORY 】to switch to (full frequency in the UV band can be transmitted/received).
