Origin:Mainland China
Certification:CE
Type:Wind Turbine Generator
Application:Weather Stations,Highways
Resistance Properties::Corrosion Resistant,Rustproof,Waterproof,Weatherproof
Charging Mode::PWM (Pulse Width Modulation)
Number of leaves::5 pieces
Material:Nylon Fibre
Features:Easy Installation
Colour:White/Red
Power Source::Wind
Voltage:12V DC
System Configuration::Gire-Tie or Off-Grid(need to buy grid-connected inverter)
Solar Technology::Mono/polycrystalline(need to buy wind & solar hybrid controller)
Axis Orientation::Vertical
Braking method::Electromagnetic
Product Description

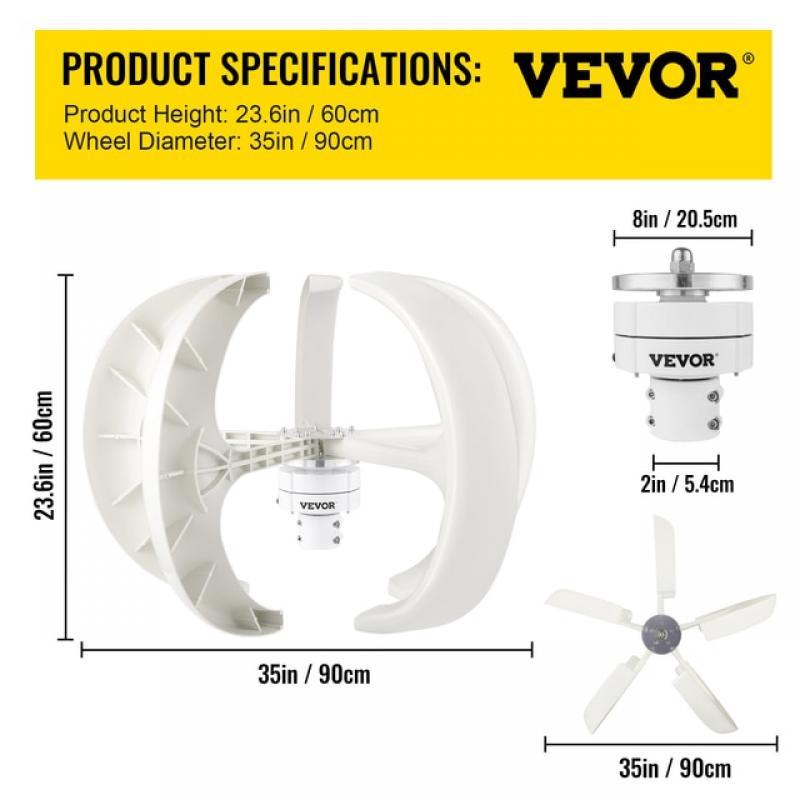

Vertical Lantern Wind Turbine
The listing is about a fashionable white lantern turbine generator 400W DC 12V with a built-in controller. Featuring high-quality nylon fibre blades and a three-phase permanent magnet motor, it boasts low start wind speed, low vibration, and low noise. It can increase wind energy utilization and annual power generation. It is a good choice for home use, monitoring use, boat/marine use, and more.
High-Quality Blades
Powerful Performance
Compact & Fixed
Easy Installation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
400W Built in
Voltage: 12 V
Max wattage: 400 W
Start wind speed: 2 m/s
Rated wind speed: 12 m/s
Safe wind speed: 45 m/s
Main engine net weight: 12.8 kg (28.22 lbs)
Wind wheel diameter: 2.95 ft / 0.9 m
Blade number: 5
Blade material: Nylon Fibre
Generator: 3phase AC PMG
Braking way: Electromagnetism
Controller Rated Current: 30A
Package Content
1 x Red Lantern Generator
1 x Charge Controller
1 x Product Manual
100W Built in
Model: VV-DLX-RD-100W12V
Rated Power: 100W
Max Power: 130W
Rated Voltage: 12V
Rated Current: 5.88A
Hoop Diameter: 2in/54mm
Rotor Diameter: 35in/90cm
Net Weight: 13.5kg/29.5lb
Blades Number: 5
Blade Material: Nylon Fiber
Start-up Wind Speed: 6.56ft/s(2m/s)
Rated Wind Speed: 36ft/s(11m/s)
Survival Wind Speed: 147.64ft/s(45m/s)
Rated Speed: 1100r/min
Working Temperature: -104℉~176℉/-40℃~80℃
Package Dimension: 24x17x12in/61x44x30cm
Generator: 3-Phase AC Permanent Magnet
Magnetic Material: Neodymium Iron Boron
Controller System: Electromagnetic/Yaw
Regulating Way: Automatic Adjustment
Controller Type: Built-in
Package Content
1 x Lantern Wind Turbine
1 x Set Screws and Nuts
5 x Nylon Blades
Steel Pipe Does Not Include
600W Built in
Blade Material: Nylon fiber
Max. Power: 600W
Voltage: 12V DC
Start wind speed: 2 m/s(6.56 ft/s)
Rated wind speed: 12 m/s(39 ft/s)
Survival wind speed: 45 m/s(147 ft/s)
Wheel Diameter: 90 cm/2.95 ft
Number of Leaves: 5 pcs
Braking Method: Electromagnetic
Direction: Automatic Windward
Generator: 1 phase AC PMG
Package Content
1 x Lantern Wind Turbine
1 x Product Manual
Features & Details
A wind turbine is a device that converts the wind's kinetic energy into electrical energy. Vertical-axis wind turbines (or VAWTs) have the main rotor shaft arranged vertically. One advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage on a site where the wind direction is highly variable. It is also an advantage when the turbine is integrated into a building because it is inherently less steerable. Also, the generator and gearbox can be placed near the ground, using a direct drive from the rotor assembly to the ground-based gearbox, improving accessibility for maintenance.
Superiority
1. The red lantern style is more three-dimensional and unique with it's compact shape, features the lowest start up wind speed, windward area is much larger, enabling it to generate power at lower wind speeds.
2. High-quality nylon fiber blades, durable, anti corrosion and reliable, have stronger wind resistance.
3. Humanized and convenient flange design, easy to install and maintain.
4. The use of dual-bearing fixed, fan movement is more stable. Low vibration and low noise.
5. Generator using the three-phase permanent magnet AC synchronous generator. High power and low loss.
6. With a special rotor design, reducing the resistance of the generator and increasing the revolving speed of the blades.
7. Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage. Making a better matching between wind wheel and generator.
Application
1. For home use
2. For monitoring use
3. For boat/ marine use
4. For wind solar hybrid streetlight use
Notice
The white mounting pole in the picture is not included in the package.
