is_customized:Yes
Maximum Current:10A/20A/30A/40A/50A/60A
Model Number:RBL Series
Application:Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
Origin:Mainland China
Certification:CE

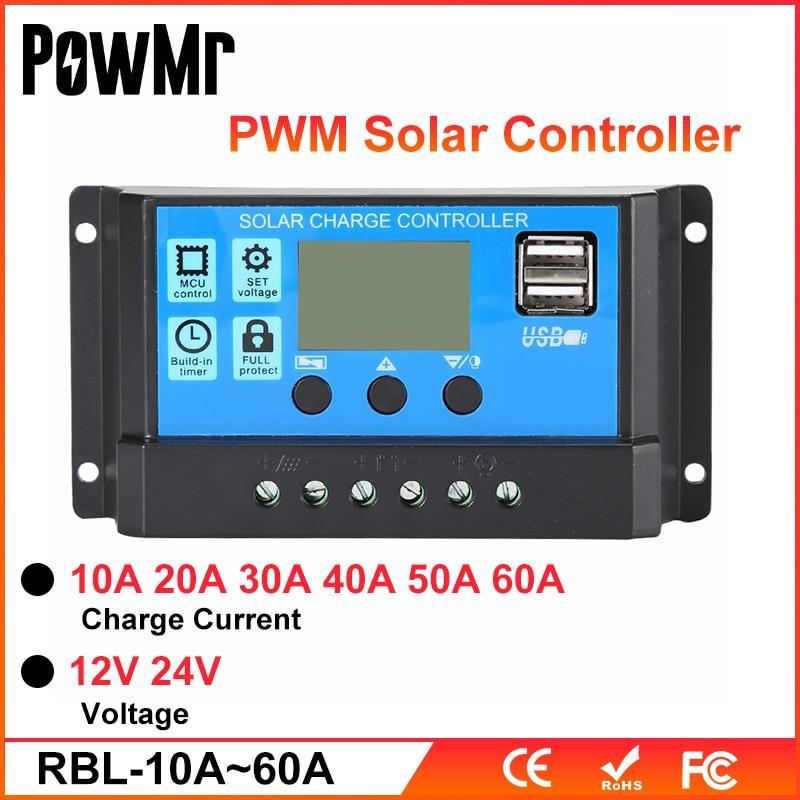

PowMr PWM 60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V NEW
Introduction：
This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries.It can fully meet your home Photovoltaic system(including home lighting system )requirements
There are optional 10A 20A 30A 40A 50A 60A model
Product Model：
RBL-10A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 120W (12V), 240W (24V);
RBL-20A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 240W (12V), 480W (24V);
RBL-30A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 360W (12V), 720W (24V);
RBL-40A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 520W (12V), 1040W (24V);
RBL-50A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 650W (12V), 1300W (24V);
RBL-60A : Max PV Voc: 24V (12V), 48V (24V); Max PV Power: 780W (12V), 1560W (24V);
Recently there are many similar products on the market, they have different prices and many sales, but please note that only here are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!
Feature：
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Product Parameter：
Connection：
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Product Picture：
Difference between 10A 20A 30A and 40A 50A 60A
RBL 10A 20A 30A
RBL 40A 50A 60A
