Type:Crimp Terminal
Certification:CE
Origin:Mainland China
Crimping Pliers Click on the follow picture
Size Selection
Cross-section
24 AWG Wire ： 0.34mm²
22 AWG Wire ： 0.5mm²
20 AWG Wire ： 0.75mm²
18 AWG Wire ： 1.0mm²
16 AWG Wire ： 1.5mm²
14 AWG Wire ： 2.5mm²

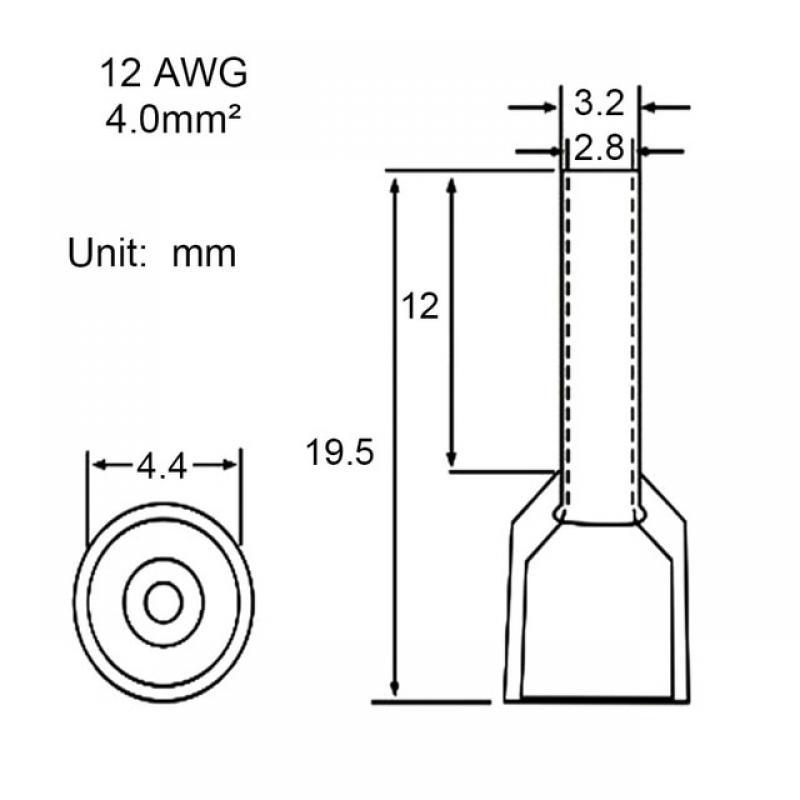

12 AWG Wire ： 4.0mm²
10 AWG Wire ： 6.0mm²
7 AWG Wire ： 10.0mm²
Specification
Material: Brass, Nylon
Surface Finishing: Tin-plating
Operating temperature : -40℃ ~ 105℃ (40℉ ~ 221℉)
Maximum Voltage:300v
Package Includes:
100 x Terminals
Application Method
1.Strip the wire
2.Insert wire into terminal
3.Crimp the terminal with wire pliers
4.Install on equipment
Product Advantage
Terminal surface is plated with tin which ensures good conductivity and corrosion resistance.
Insulated sleeves would provide support for the wire in order to avoid bend when crimping.
Suitable for the connection in power cable with electrical equipment.
Used widely in machinery, electric power equipment, home appliance, computers or automobiles.
