is_customized:Yes
Theory:Resistance Sensor
Usage:Pressure Sensor
Model Number:BME280
Material:Metal
Type:Temperature Sensor
Output:Digital Sensor
Origin:Mainland China
What is the difference between BME280 and BMP280:
BME280: Pressure, temperature and humidity sensor
BMP280: Pressure sensor
Why is it so expensive now?
Since 2021, there is a global shortage of chips, and it is difficult for us to buy chips from agents. Once it drops in price, we will update the price immediately.

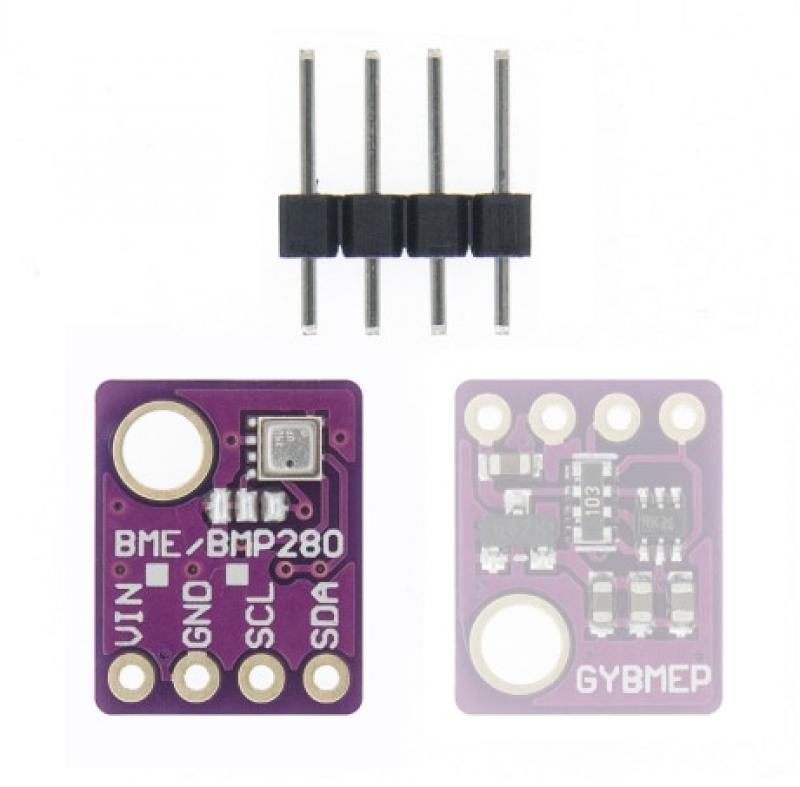

BME280, the precision sensor from , is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Specifications:
Supply Voltage: 1.8 - 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Resolution:
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Accuracy:
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa
I2C address
SDO LOW : 0x76
SDO HIGH: 0x77
