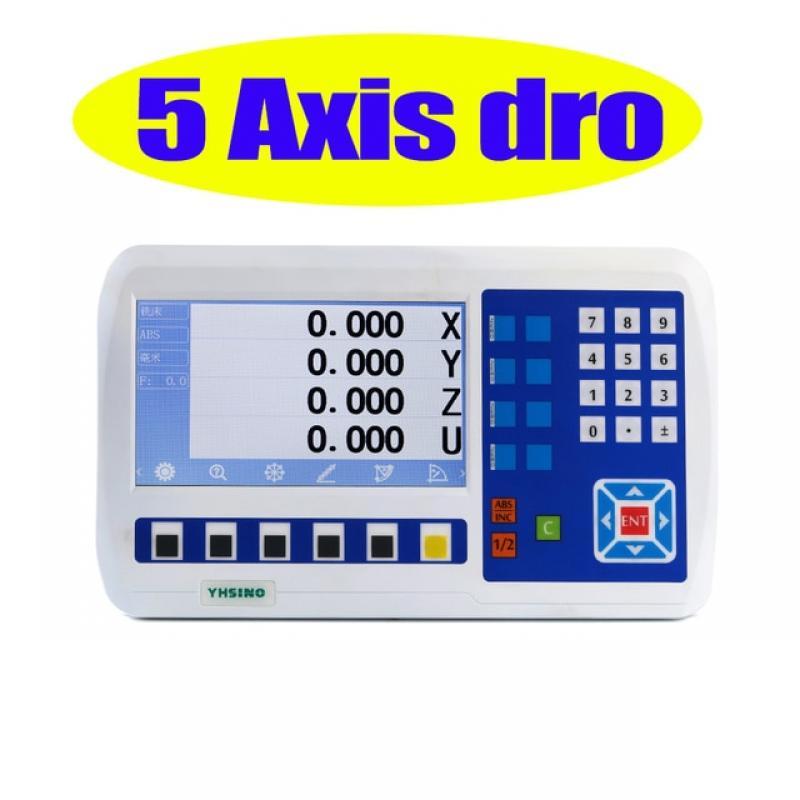

Model Number:2 3 4 5 axis BIG LCD DRO
Certification:CE,FCC,WEEE
Origin:Mainland China
7'' Big Display 13 Languages BIG LCD DRO YH800 Parameter
1. Voltage: AC 80V--240V ; 50-60HZ
2. Power: 15W
3. Displaying: 7'' true color LCD screen
4. Working Temperature: -10℃--60℃
5. Storage Temperature: -30℃--70℃
6. Relative Humidity:
7. Axis Number: 2 axis,3 axis
8. Input Signal: 5V TTL
9. Input signal Frequency:
10. Resolution (Linear Encoder): 0.1 um， 0.2 um，0.5 um，1 um，2 um， 2.5 um，5 um，10 um，20 um，25 um，50 um，100 um
11. Highest Resolution(Rotary Encoder):
12. DB9 Pin diagram
13. BIG LCD DRO YH800
7'' Big Display 13 Languages BIG LCD DRO YH800 Support 13 Languages
1.English
2.русский
3.Magyar
4.Deutsch
5.Polski
6.português
7.italiano
8.український
9.Thai
10.Traditional Chinese
11.Türkçe
12.Romanian
13.Ελληνικά
7'' Big Display 13 Languages BIG LCD DRO YH800 Function
Grid Hole Function
Bolt Hole Function
Simple R Function
Smooth R Function
Radius and Diameter Conversion
Vectoring Function
Taper Measuring Function
7'' Big Display 13 Languages BIG LCD DRO YH800 Features:
1．Adopting 7 inch true color LCD screen. All basic and function settings will be fully displayed. Meanwhile there are dynamic graphics for machining.
2．Equipped with the latest ARM architecture 32-bite chips,128M running memory. Strong ability of anti-interference and superb fast calculation speed. With ABS+PC synthetic hard material, both economy and ability are guaranteed.
3．Intuitive menu for basic and function parameter setting, no composite keys. Meanwhile there are built-in manual. Operator could refer when there are any doubts during the machining.
4．System language support Simplified Chinese, Traditional Chinese, English, German, Italian, Portuguese, Polish, Romanian, Hungarian, Greek, Russian, Ukrainian, Thai…etc.
5．All the electronical components are from the top brand, ensuring the stability and long service life.
6．Patent oscilloscope function, this brings the convenience for the maintaining.
7．Real-time federate displaying, ensure the convenience of machining and the target finish of the work-piece.
8．Supplied with the native-speaker edited colorful English manual. Real readable.
