OSD Language:English
Talk Range:0.2~2.6 m
Material Type:ABS
Model Name:LD011
Type:Visible
Origin:Mainland China
Certification:CE
Feature 1:8 sensor system
Feature 2:prevent dangerous and costly collisions
Feature 3:With digital colored LED display
Feature 4:Detect small children and low walls as well.
Feature 5:parking sensors for cars
Feature 6:Parktronic
Specification:
1. Rate Voltage: DC 12V
2. Operating Voltage Range: 9~16V
3. Rate Current: 20~200mA
4. Detecting distance: 0.3 - 2.5m
5. Ultrasonic Frequency: 40KHz
6. Working Temperature: -30~80°C
7. Display Working Temperature: -20~60°C
Features:
8 sensor system, double CPU and advanced chipset for enhanced coverage and detection (0.3-2.5m).
With digital colored LED display (number & light).
Help to prevent dangerous and costly collisions.
Help to provide increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle.
Detect small children and low walls as well.
Anti-freeze and rain proof.
Easy to install.
A saw drill head included.
Way of working:
1. When the vehicle is reversing, the rear radar automatically starts to work.
2. the end of the reversing, the radar in front of the car automatically opens, to detect, to prevent scratching, especially in
the right front corner of the vehicle,
3. When the vehicle is not reversing, the brake is pressed, the front radar is turned on, and the work is stopped for about
10 seconds.
Package:

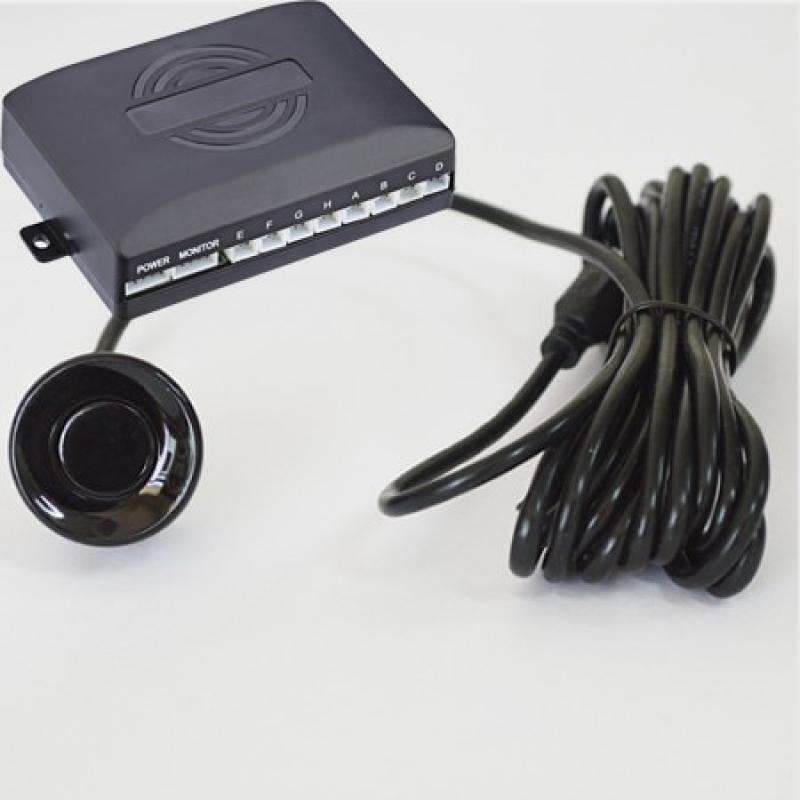

1 x Main Control Box
1 x LED Display
8 x Parking Sensors
1 x Power Cable
1 x Hole Saw
2 x Double Sided Adhesive Pad
1 x User manual
8 Sensor Wire Connection:
Yellow Wire :
Car Reversing Light "+"
White Wire :
Car Feel Brake Light "+"
Black Wire :
GND (0 V)
Red Wire :
ACC power "+"
