Electronic:No
Material Type:Plastic
Item Weight:0.05kg
Item Height:2cm
Item Width:5cm
Item Length:10cm
External Testing Certification:ce
Voltage:V
Special Features:Bluetooth
Power:W
Model Name:OBD2 Scan
Software Version:V2.1
Hardware Version:V2.1
Item Type:Car Diagnostic Cables and Connectors
Origin:Mainland China
Item Name:ELM327 Super MINI
Color:Blue
OBD2 Type:Code Reader Scan Tool
Language:Multi-Language
Connection:Bluetooth
Supports Platform:Android Torque/Symbian/Windows
OBD2 CAN-BUS:Supports Multi-Protocols
Performance:Stable
Note:No Supports Truck/Diesel Cars
Function:Read and delete Fault code
About Shipping Method:
Order you choose and ship by
"China Post Oridinary Small Packet Plus"
,
No track information after despatch from China (Can't track),but which save your shipping fee.
(Buyer protection time is 60days,Brazil 90days)
Please read this and note before your order. Do not open dispute before 60days.
OR You can
pay extra Registered shipping
fee to choose
China Post Registered Air Mail
with details track information.
This ELM327
works ONLY for Gasoline cars
,
it does not supports Diesel car and Truck.
It supports multi-brand gasoline cars,but we can't test it on all cars ,also each car brand has many series,so we can not make sure if this device works your car or not .
We suggest you can buy one to try and test . As this is cheap elm327,but it has powerful function for your car !
But if you dont sure and do not want to buy one to try ,please consider twice.

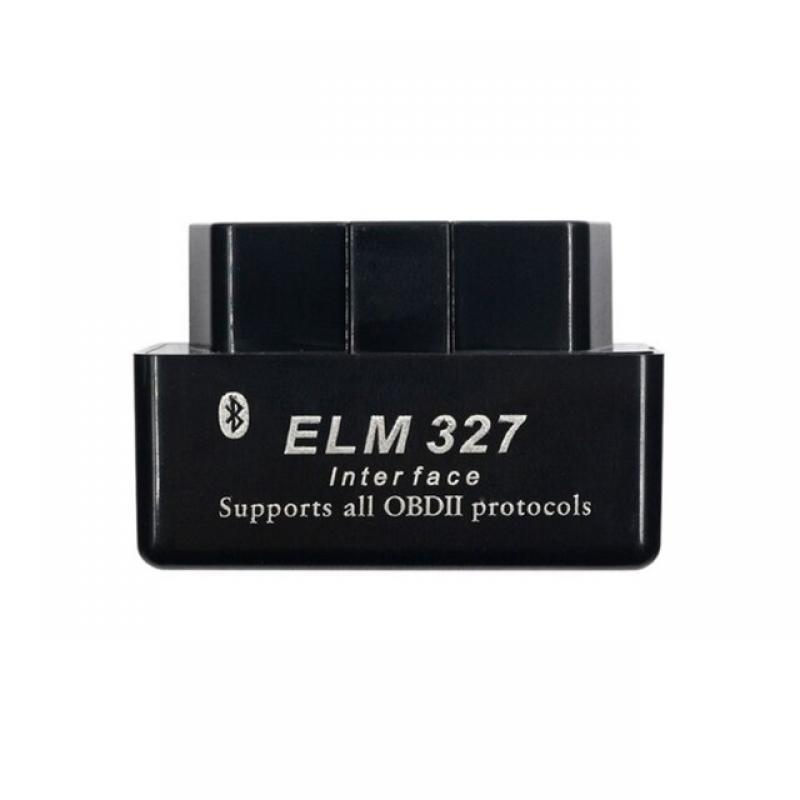

ELM327 OBD2 Code Reader Scanner Auto Diagnostic Interface V2.1
Description:
ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols.
Works For Multi-Cars diagnostic,read and delete Fault code.
Highlights:
Hardware V2.1,Software V2.1
Bluetooth Password :0000 / 1234
Woks on Android Torque (Android 4.0~4.4) /PC,
BUT IT NO WORKS iOS!
It CAN'T support Diesel or Trucks.
This ELM327 V2.1 supports most of OBD-II protocols cars,but it can not do all models,please check your car with following protocols.
Supprots 7 Protocols:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others.
Default Settings(user adjustable)
1.Works with OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Pa, PDA,Mobile
4.Software included for Windows PC ,Can also be used with a PC with a Bluetooth Card.
5.Software included for Windows Smartphone Android torque
Package List:
1 x ELM327 Bluetooth
1 x CD
Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or negative feedback. Thanks .
CD Soft ware Multi-Language:
Works on Android Bluetooth Torque for Reference:
Software Install on Windows Computer For Display:
