Camera Equipped:No
State of Assembly:Ready-to-Go
Model Number:Wifi module
Compatibility:All Compatible
Origin:Mainland China
Certification:CE
Input voltage:USB 5V,AC/DC 7V-32V,AC85-250V
Operating Humidity:40% ~ 80% RH
working temperature:-20 degrees to +70 degrees
APP:Smart Life / Tuya Smart
Feature 1:Work with Alexa
Feature 2:Work with Google home
Function feature:App Remote Control / RF Control / Voice Control
Max input current:10A
Time Type:Timer
Working mode:inching /self-locking /Interlocking
Name 1:smart home remote
Name 2:smart wifi relay
Name 3:google home module
Name 4:smart relay
Name 5:switch wifi relay
Name 6:smart relay wifi
Name 7:wifi switch control
Name 8:remote control relays
Name 9:tuya wifi switch
Name 10:wireless relay module
Name 11:wifi smart switch

Tuya smart Jog Inching Self-locking WIFI Wireless Smart Home Switch Remote Control with Amazon Alexa
This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .
WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
RF mode , you can control the board with RF433 remote controller.
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse
Overview:

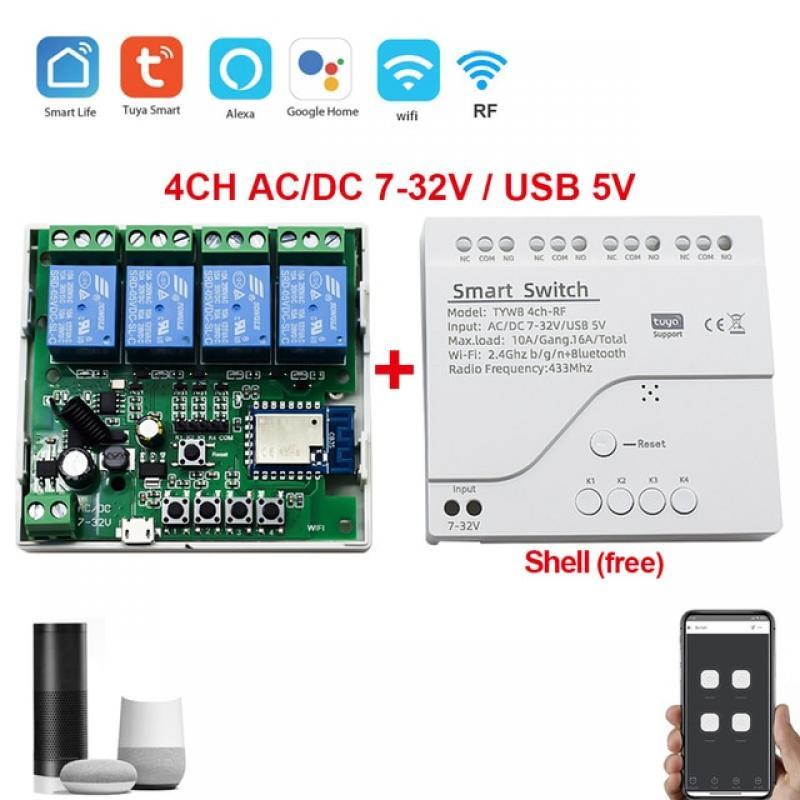

This product is a 4 channels universal WiFi wireless smart switch with RF 433MHz module, for your smart home system to remotely and automatically turn on/off home appliances and electronic devices by phone APP. It also can be controlled by RF remote controller indoors. It can connect and control four appliances on APP at the same time, and you can independently turn on/off each of the four gangs. It also supports timing turning on/off the appliances at a specified time, and share to others so that you can control your smart home together with your family. You can also voice control your home appliances by Amazon Alexa, and for Google Home/Nest,IFTTT, and enjoy intelligent life and make your home smarter.
Features:
*App Support: Free iOS and for Android mobile Tuya APP/Smart Life APP.
*Sync Status: Real-time device status provided to App.
*Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
*RF Remote control: Turn on/off by 433MHz RF Remote indoors.
*3 Working Modes: Switch among interlock/self-locking/inching modes.
*Independent control: Control each gang separately in Tuya APP/Smart Life APP.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, Garage door opener，Motor,etc.
*Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
*DIN Rail Mounted: Great for industrial control.
*Voice Control: Compatible perfectly with Amazon Alexa, for Google Home, for Google Nest,IFTTT.
*Share Control: Control your smart home together with your family.
Note:
Please make sure to select the right model before buying ,or leave us a message before shipping
Features:
Input voltage : DC/AC 7-32V , AC 85-250V,Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 1CH 69*41*20mm,2CH 10*35*20mm,4CH 78*74*20mm.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Noted :
Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 1s , you can set inching time from 2s to 3600s in APP ( smart life / tuya smart).
Include:
1* wifi module
1* manual
APP Control From Anywhere
You can rermote control smart device via mobile phone APP antytime and anywhere.
Family Sharing
Share the control with family member.Enjoy the convenience and happiness together
View at any time on your mobile phone.Switching power supply
Check and control the power switch at any time, saving electricity and convenient to use
Three control methods for easy control
Voice control, app control, remote control
Smart switch, bid farewell to traditional switching methods
Control multiple devices at the same time
Picture display
