Signal To Noise Ratio:80
Dimensions (WxHxD):88*41*42mm
Body Material:Plastic
WIFI:No
Bluetooth:No
DSD (Direct Stream Digital):No
Channels:1
Package:YES
Model Number:smartrig
Type:Mini Amplifier
Recommended Headphone Maximum Impedance:<32 Ohm
Built-in Battery:No
Output Type:LINE OUT (AUDIO OUT)
Input Type:LINE IN (AUDIO IN)
Origin:Mainland China
Certification:CE
SmartRig II
The Saramonic SmartRig II is an easy solution to connect any a XLR microphone or 6.3mm guitar to your iPhone, iPod touch, or iPad and Android devices. As a high-quality microphone preamp, the Saramonic SmartRig II allows you to use professional stage microphones or high-end studio microphones to create music with your mobile iOS or Android devices.
Important note:
To use the headphone monitoring jack, the recording app you use must feature a “playback monitoring” option. What that does is sends a playback signal in addition to receiving the audio input.
If you can't hear audio when monitoring, please make sure the applications you choose can support real-time input/output pass-through
Tips:
If your microphone needs phantom power, please slide the power switch to the +48V position. The red and green LEDs will light at the same time.
Combo 1/4″ (6.35mm) and XLR input
Power/Phantom power provided by 9V battery
+48V phantom power
3.5mm headphone output for monitoring(need APP)
+48V/OFF/ON switch
Gain control
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
Dimensions:
-98 dB full band
phantom power ON
Maximum output level:2 Vrms
Distortion:0.025% THD
Phantom max current:13mA
Dimensions:L 88 *W 41* H 42 mm
Weight:75g (2.57 oz.)
SmartRig Di
The Saramonic SmartRig Di with lightning interface is an easy solution to connect any professional microphones or guitars to record quality audio or create music with your iPhone, iPad and iPod touch.
Simply plug the microphone into the XLR connector or plug the guitar into the 6.35mm connector of SmartRig Di, and connect it to your iOS devices with the lightning output cable.
The provided gain control thumbwheel makes it easy to set precise levels. Processed sound can be monitored through a 3.5mm headphone out.
Combo 1/4″ (6.35mm) and XLR input
Lightning output connector
Powered by one 9V battery
+48V phantom power
3.5mm headphone output for monitoring (need APP)
+48V/OFF/ON switch
Gain control
Frequency Response:20 Hz to 20 Khz, +/-0.5 dB
Dimensions:L 88 x W 41 x H 42 mm
Weight:75g ( 2.57oz. )
Gain:23dBU to – ∞
SNR:80 DB @1KHZ,-30dBu input
THD:less than 0.01%@1KHZ,-30dBU input
Output:Lightning output connector
SmartRig UC
The Saramonic SmartRig UC with USB Type-C interface is an easy solution to connect any professional microphones or guitars to record quality audio or create music with your USB Type-C devices.
Simply plug the microphone into the XLR connector or plug the guitar into the 6.35mm connector of the SmartRig UC, and connect it to your devices with the USB Type-C output cable.
The provided gain control thumbwheel makes it easy to set precise levels. Processed sound can be monitored through a 3.5mm headphone out.
Combo 1/4″ (6.35mm) and XLR input
USB Type-C output connector
Powered by one 9V battery
+48V phantom power
3.5mm headphone output for monitoring (need APP)
+48V/OFF/ON switch
Gain control
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
Dimensions: L 88 x W 41 x H 42 mm
Weight: 75g ( 2.57oz. )
Gain: 23dBu to – ∞
SNR: 80dBu @1kHz,-30dBu input
THD: less than 0.01%@1kHz,-30dBu input
Sample Rate: 44.1Khz or 48khz
Output: USB Type-C connector
SmartRig+
The Saramonic SmartRig+ is a portable microphone/guitar interface for recording professional quality audio.
The SmartRig+ makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your smartphone, tablet, DSLR camera or video camera. 2 independent channels allow you to connect and control gain on multiple microphones or guitars at the same time. The interface also features 3 types of input to accommodate any set up: two XLR mic inputs, two 1/4″ (6.35mm) guitar inputs, and two 1/8″ (3.5mm) jack inputs for connecting any instrument or microphone. Outputs to a standard 1.8″ 3.5mm cable for use with, smartphones, cameras and other devices.
Provides 48V phantom power for microphones, and includes a 3.5mm headphone output for real-time sound monitoring. The two gain control thumbwheels make it easy to set precise levels. Toggle between Mono and Stereo output modes as necessary. Powered by one 9V battery.
Two Independent Channels
Two XLR Microphone Inputs
Two 3.5mm (TRS) Microphone Inputs
Two 1/4″ Guitar Inputs
Output switch for smartphone (TRRS) or Camera/Camcorder/Recorder (TRS)
3.5mm Headphone Output Jack for Monitoring
+48v Phantom Power Switch
Mono/Stereo Toggle Output Switch
Frequency Response:20 Hz to 20 Khz (+/-0.5 dB)
THD:Less than 0.01% @ 1 kHz, -30 dBu input
SNR:80 dB @ 1 kHz, -30 dBu input
Input1:
1x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Input2:
1 x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Output:1 x 1/8″ (3.5mm) CAB LINE
Gain:+20 dB to Infinity
Phantom Power:48V power supplie
Power Requirements:9V alkaline or lithium battery
Dimensions:L 4.7″ x W 1.6″ x H 1.6″ (12 x 4 x 4 cm)
Weight:4.6 oz. (130g) (excluding battery)
SmartRig+ UC
The Saramonic SmartRig+ UC is a two channel audio interface. It allows you to connect professional microphones/guitars to record quality sound or create music with your USB Type-C devices.
The USB Type-C connector allows you to record great stereo sound to your devices.
The SmartRig+ UC makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring.
The two gain control thumbwheels make it easy to set levels of each channel separately.
Two XLR mic inputs
Two 1/4″ (6.35mm) guitar inputs
Two 1/8″ (3.5mm) inputs
Mono/Stereo switch (M/S)
REC/PLAY switch
+48V phantom power
3.5mm headphone output for monitoring
Gain control
USB Type-C connector for output
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
THD: less than 0.01%@1KHZ, -30dBu input
SNR: 80 dB @ 1 kHz, -30 dBu input
Input1:
1x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Input2:
1 x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Output: USB Type-C connector output cable
Phone Out: 1 x 1/8″ (3.5mm) headphone jack
Gain: +20 dB to -∞
Phantom Power: 48V power supplies
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 120 x W 40 x H 40 mm
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 120 x W 40 x H 40 mm
Weight: 130g (excluding battery)

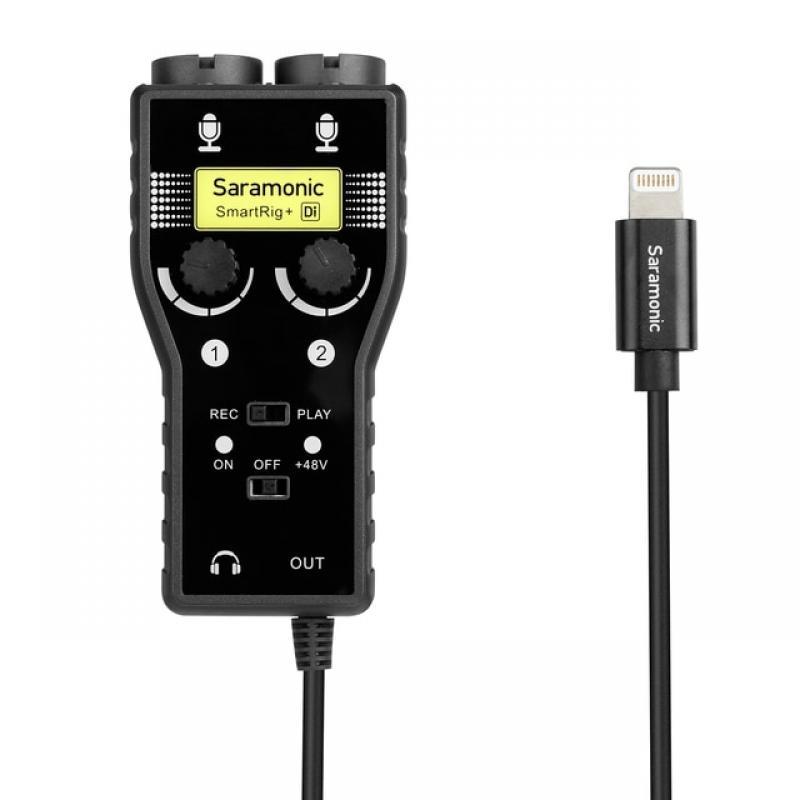

SmartRig+ Di
The Saramonic SmartRig+ Di is a two channel audio interface. It allows you to connect professional microphones/guitars to record quality sound or create music with your iPhone, iPad and iPod touch.
The Lightning connector allows you to record great stereo sound to your iOS devices.
The SmartRig+ Di makes your recording work much easier. It provides 48V phantom power for microphones and 3.5mm headphone output for real-time monitoring.
The two gain control thumbwheels make it easy to set levels of each channel separately.
Two 1/8” (3.5mm) mic inputs
Two XLR mic inputs
Two 1/4” (6.35mm) guitar inputs
Lightning output connector
Mono/Stereo switch (M/S)
REC/PLAY switch
+48V phantom power
3.5mm headphone output for monitoring
Gain control
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
THD: less than 0.01%@1KHZ, -30dBu input
SNR: 78 DB @1KHZ,-30dBu input
Sample Rate: 44.1Khz or 48khz
Input1:
1x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Input2:
1 x XLR mic input
1 x 1/4″ (6.35mm) guitar input
1 x 1/8″ (3.5mm) input
Output: Lightning connector output cable
Phone Out: 1 x 1/8″ (3.5mm) jack
Gain: + 25dBu to – ∞
Phantom Power: 48V power supplies
Power Requirements: One 9V alkaline or lithium battery
Dimensions: L 120 x W 40 x H 40 mm
Weight: 130g (excluding battery)
