Support APP:No
Frequency:433 MHz
Channel:4
Package:No
Model Number:XLYXD-137
Wireless Communication:RF
Use:Universal
Certification:CE
Origin:Mainland China

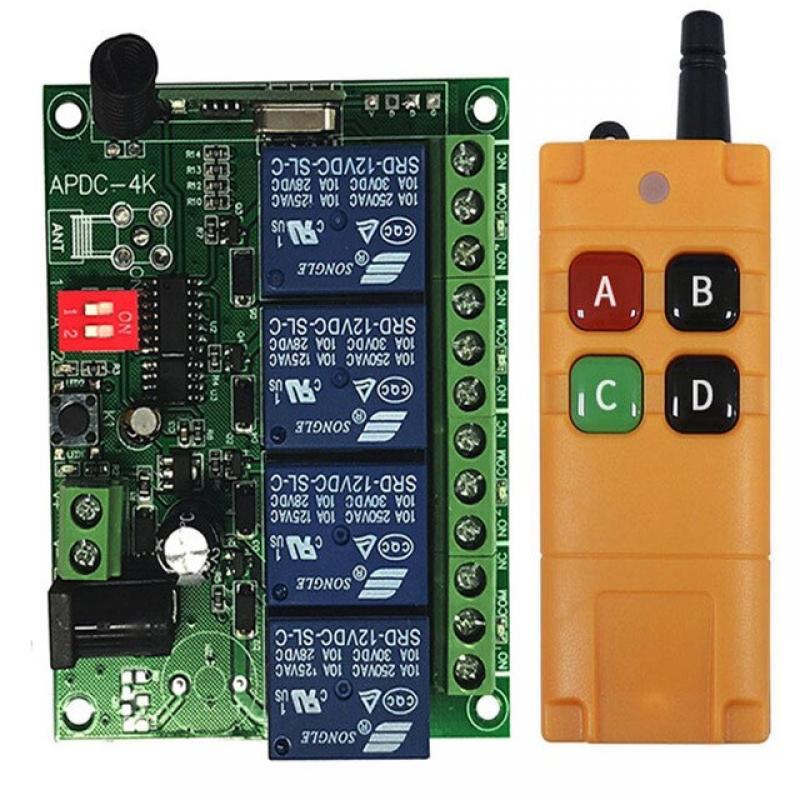

Specifications:
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
1 working voltage:
DC12V/24V ±10%
2 working current: ≤180mA
3.Static current: ≤10mA
Operating temperature: -10~+70 ℃
Reception sensitivity: -109 DBM
6 operating frequency:
433MHZ
7.Controller size: 75.0mm x 57.8mm x 20.0m
Working mode:
jog
, self-locking and interlocking
Encoding Type: Learning Code
Add transmitter by the Learning Button on the receiver
Function parsing
1) jog mode: don't dial the code switch
2) self-locking mode: dial code switch 1,2 to ON for self-locking
3) interlock mode: dial code switch 1 to ON for interlock
4) jog+self-locking mode: dial code switch 2 to ON for1,2 self-locking;3,4
jog
Learning methods:
Click on after the power supply code key, can open learning after the indicator light hand into the learning state, namely Ren Yijian within 20 seconds according to the remote control transmitting, lights flashing a to said the lights went out learning success, the remote control can be used.
Clearance method:
After power, press the learning button for about 10 seconds until the light goes out.
Transmitting Distance: 200-2000m(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference ).
pacote inclued:
A:
1 x Transmitter(with battery)
B:
1 x Receiver(with cover)
C:
1x Receiver(with cover)
1x Transmitter(with battery)
D:
1x Receiver(with cover)
2x Transmitter(with battery)
