Data Transmission:No
Output Current:2A
Output Interface:USB Output
Package:Yes
Use:Standard Battery
Model Number:Lii-S8/M4S/600/PD2/202
Display screen:Yes
Intelligent Charge:Yes
Quick charge:Yes
Type:Electric,USB
Origin:Mainland China
Certification:CE,FCC,RoHS

Note: This is a charger and does not include batteries.

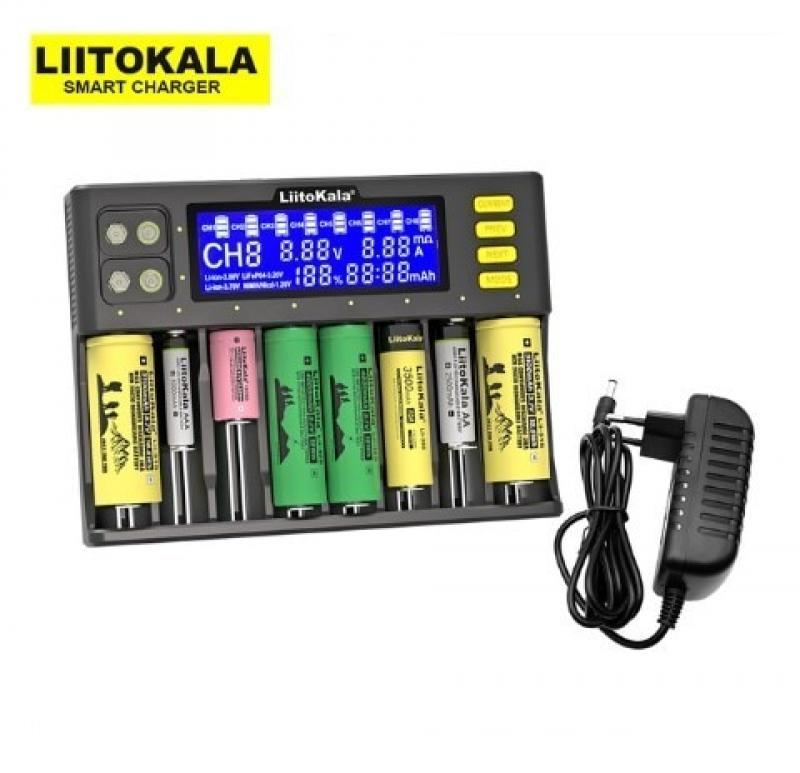

Lii-S8 Charger Specific parameters
1. Input power: DC 12.0V 4.0A
2. Output voltage: DC 4.20V for Li-ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-cd
DC 9.0V for NiMH
3. Output current:
Li-ion/IMR/LiFePO4: 2.00A*4 (1/3/6/8 channel only),0.30A/0.50A/0.70A/1.00A*8,
                                 NiMH/Nicd: 0.50A*8,
                                 NiMH- 9V: 85mA*2
4. Constant current/constant voltage charging, cut-off current: 100mA;
5. No-load standby current:
Compatible battery types and models
Li-ion / IMR/LiFePO4: 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd: AA, AAA, SC/C
6. Charger size:195.0mm×142.5mm×35.0mm(L/W/H)
Lii-M4S data
Input: DC Type-C 5V/2A(min)
Output: Li-ion 4.20V 300mA*4 / 500mA*4 / 700mA*4 / 1000mA*2
Ni-Mh/Cd 1.48V 500mA*4
Discharge Output: 250mA*4 / 500mA*4
USB power bank output: 5V/1000mA
Lcd Display: LCD Display of all datas in one screen:
voltage / current / percentage / time / capacity"
Standby current: ≤15mAh
Size: 146*100*33mm
Weight: 206g
Lii-M4S new function
Lii-M4S adds touch buttons and HD LCD screen. also add Two function modes (DisChargeStorage)
Touch keys:
The physical buttons are canceled, and the touch buttons are used. There will be a beep sound when the button is touched.
HD LCD screen:
Lii-M4S also uses an HD LCD screen with high definition and 175-degree visibility.
Storage mode:
This is a functional mode designed to store batteries more safely.
When the battery is not used for a long time (such as more than 1 week), you can use this Storage mode, it will adjust the battery voltage to 3.8V (charge to 3.8V or discharge to 3.8V). Return the battery voltage to the factory voltage (3.65-3.8V).
This results in longer battery life and safer storage.
DisChage mode:
Just put to empty, then stop.
LiitoKala Lii-600 Battery Charger Specific parameters
Input voltage: DC 12V/5A
Output voltage:DC 4.2V / DC 1.48V
Output current
Lithium battery charging current: (250mA / 500mA /1000mA/ 1500mA / 2000mA / 3000mA)*4
NiMH battery charging current: (250mA / 500mA /1000mA)*4
Discharge current: 250mA / 500mA /750mA
Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc.
Termination method: intelligent voltage monitoring
Dimensions: 165mm (length) * 115mm (width) * 40mm (height).
Lii-PD2 Charger Features:
1. Adopt DC12V1A (nominal) input, two-slot independent charging and microcomputer management system;
2. The biggest highlight of this charger is that it can charge the battery regardless of polarity!
3. There are three levels of charging current: 0.5A/1.0A/2.0A, the default charging is 0.5A, you can long press the corresponding button to select the charging current;
4. When charging, the LCD can display channel CH and the charging current, voltage, time, capacity and battery type of this channel Li-Fe 3.20V /
Li-ion 3.70V /Li-ion 3.85V (IMR); the total charging current of the two slots does not exceed 2A, that is, when one of the slots is charged with 2A current, and then the battery is charged in the other slot, the front 2A current will drop back Charge up to 1A current; when the battery is fully charged, the LCD will display FULL;
5. It can automatically identify lithium battery (Li-Ion 3.70V) battery and nickel-metal hydride (Ni-MH) battery, and manually select lithium iron phosphate battery (3.20V) and Li-Ion 3.85V battery;
6. With 0V voltage activation function, 1.65-2.20V cannot be charged (but there will be activation current trickle charging).
7. There are multiple safety protection functions such as overcharge, overdischarge, short circuit, etc. At the same time, it can intelligently and automatically identify bad batteries;
8. Charging mode: constant current and constant voltage.
Electrical technical parameters:
1. Input power: DC 12V 1A
2. Output voltage: DC 4.20V for Li-Ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/NI-Cd
3. Output current (optional): Li-Ion/IMR/LiFePO4: 2000mA*1 (only one)/1000mA*2/500mA*2
NiMH/NiCd: 500mA
4. Constant current/constant voltage charging, cut-off current:
5. No-load standby current:
1. Lii-202 Charger Specification:
Input: Micro USB DC 5V / 2A

Output: 1.4, 4.2 ± 05, ± 05 3.65 ± 4.35 05

Output Current: 500/1000 mAh

constant voltage charging cut-off current:
Standby current:
2. USB output function
USB output load voltage: 4.90 V-5.30

Output Current: 1000 mAh (1A)

No-load current:
the output voltage of 4.75 V-5.25 V, when the current 1000 mAh

output over-voltage protection: 3.0 ± 1

3. Compatibility

li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

4. Size

112 mm × 60 mm × 30 mm / 86 g + 15 g USB cable
