Package:Yes
Model Number:LW-CA8S22-100/YL & LW-CA8S24-100/YL
Type:Dada Transfer Cable
Origin:Mainland China
Certification:RoHS

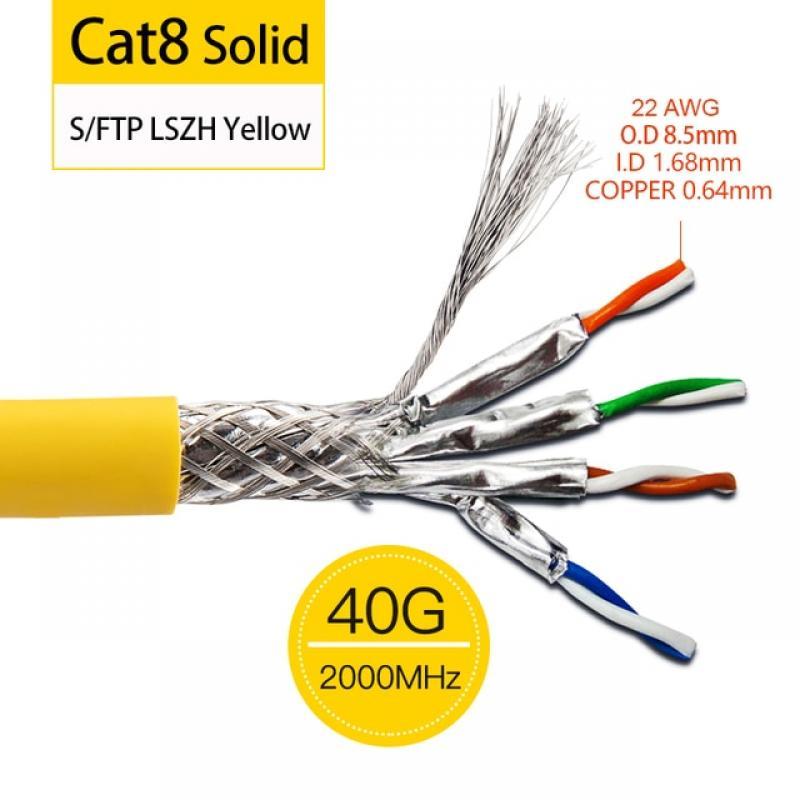

Category:Cat 8 40G 2000MHz
Copper (22AWG Cable):22AWG/1 x 0.64mm
Insulation (22AWG Cable):Foam-Skin PE 1.68mm
O.D (22AWG Cable):8.5mm
Copper (24AWG Cable):24AWG/7 x 0.20mm
Insulation (24AWG Cable):Foam-Skin PE 1.40mm
O.D (24AWG Cable):7.5mm
Screen:Aluminum Foil
Shield:Tinned Copper Wires Braid
Sheath:LSZH CPR Dca
Future-Oriented & High-Speed
Linkwylan Cat 8 S/FTP installation cable structure 4x2xAWG22/1 and achieves transmission frequency up to 2000MHz. The halogen-free material complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building cabling in secondary and tertiary areas. Complies with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-12-1.
Cat8 24AWG/7 Stranded Cable
Linkwylan Cat 8 S/FTP cable structure 4x2xAWG24/7 and achieves transmission up to 40G. The halogen-free material complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca.
Application & Test
The whole Category 8 copper cabling solution, which includes the Cat8 field termination plug, Cat8 keystone jack from Linkwylan® transmit up to 40 Gigabit per second (24m) in the ermanent Link over the backbone cabling of the data center. Additionally, the copper cabling components transmit 25 Gigabit per second (50m) in the Permanent Link in accordance with TR 11801 (9909), and this means the future trend for LAN cabling in buildings.
