5G Wi-Fi Transmission Rate:2167Mbps
Wired Transfer Rate:10/100/1000Mbps
Wi-Fi Transmission Standard:802.11ac
2.4G Wi-Fi Transmission Rate:300 Mbps
Wi-Fi Supported Frequency:2.4G & 5G
Supports WPS:Yes
Supports WDS:No
Number of USB Interfaces:None
WAN Ports:1 x10/100/1000Mbps
LAN Ports:3
Function:Firewall
Application:Home
Package:Yes
Standards And Protocols:Wi-Fi 802.11g
Max. LAN Data Rate:1900Mbps
With Modem Function:Yes
Type:Wireless
Origin:Mainland China
Certification:NONE
2.4GHz:1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz:36,40,44,48,149,153,157,161,165
Processor:MT7622B Dual-Core 1.35GHz CPU
Memory:256MB

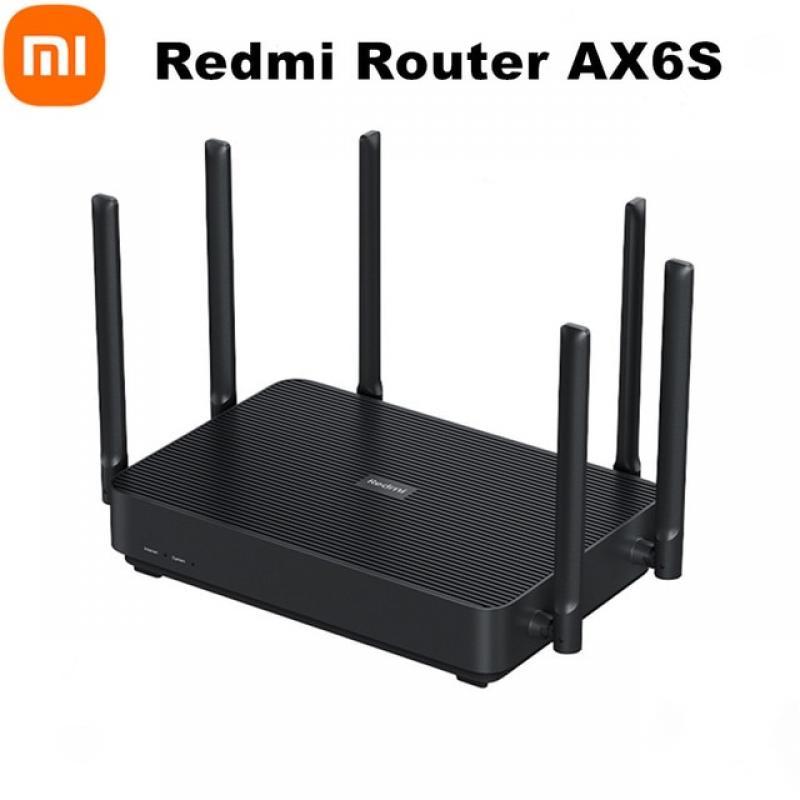

Redmi Router AX6S
Processor：MT7622B Dual-Core 1.35GHz CPU
Memory: 256MB
2.4G Wi-Fi: 4 x 4 (supports up to IEEE 802.11n protocol, theoretical maximum speed of 800Mbps)
5G Wi-Fi: 4 x 4 (supports up to IEEE 802.11ax protocol, theoretical maximum speed of 2402Mbps)
Product antenna: 6 external high-gain antennas
Product heat dissipation: Natural heat dissipation
Total ports
1× 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)
3× 10/100/1000M self-adaptive LAN ports (Auto MDI/MDIX)
LED indicator light
2× (SYSTEM light ×1, INTERNET light ×1)
System reset button: 1
Power input port: 1
Mesh button: 1
Protocol standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
Wireless specifications
Dual band: 2.4 GHz and 5 GHz
Wireless channels:
2.4GHz: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz: 36,40,44,48,149,153,157,161,165
Modulation:
11b: DSSS: DBPSK(1Mbps), DQPSK (2Mbps), CCK(5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM,256QAM. Rate set: MCS0 to MCS15
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 4 streams)
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0 to MCS11 (supports 4 streams)"
Software specifications
Operating system:
Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of Open-WRT
Wi-Fi Encryption:
WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
Management applications:Supports web, Android, iOS
Working Environment
Temperature: 0°C to 40°C
Operating humidity: 10%–90% RH (no condensation)
Storage temperature: -40°C to +70°C
Storage humidity: 5%–90% RH (no condensation)
