Card Type Device:4G Card
Transmission Rate:150Mbps
Package:Yes
Kind:External
Interface Type:USB
Type:Wireless
Certification:CE
Model Number:LDW931-2
Origin:Mainland China
Sim Card Slot:NANO

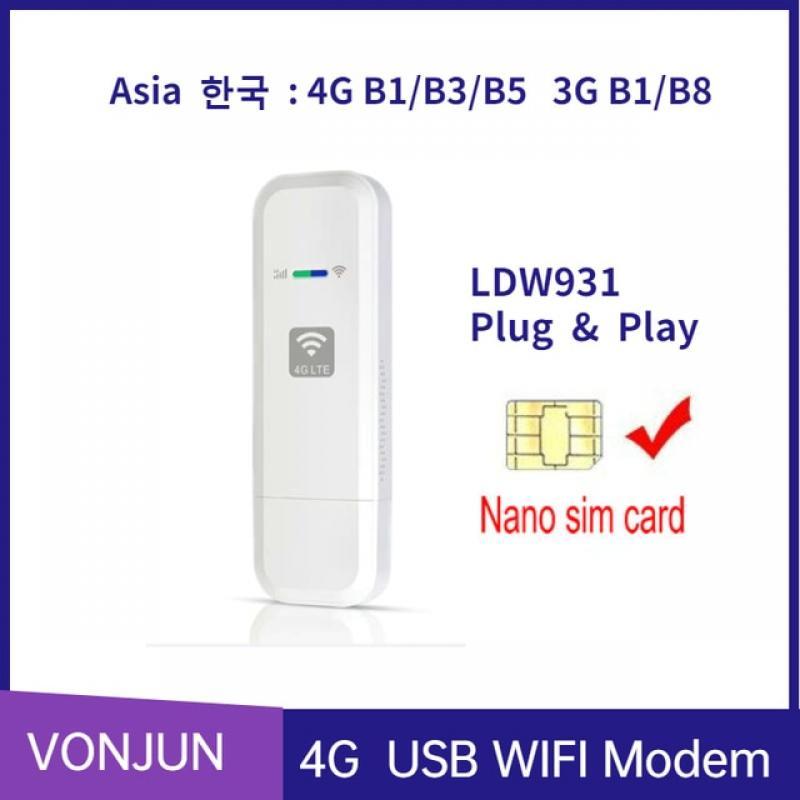

LDW931-2 4G Nano Sim Card Router WIFI Dongle Mobile Hotspot LTE Modem
There are different network bands for different operator ,please check from your operator ,choose the suit version for yourself
1 : Europe Version Support 4G bands B1 B3 B7 B8 B20
2：America version support 4G bands B2 B4 B5 B7
3：Aisa Version support 4G bands B1 B3 B5 (B40 optional ) Hot sell in Korea
For LDW931-2
If you want to change IMEI number for the Modem
first you need login the IP address :192.168.0.1 ,then change the IP address to :
http://192.168.0.1/index.html#imeiSetting
* Support worldwide network,FDD-LTE/UMTS
* Multi language(Indonesian,Russian,Portuguese etc)
* SMS--Send/receive/delete SMS
* Plug&Play,No need CD-ROM,No Driver Installation.
* Up to 10 users access to WiFi
* Slimmest 4G USB dongle in the world ; Innovative Nano SIM-in-USB
Technical
FDD-LTE
3GPP,3GPP2 Release9，Category4,up to 150M DL and 50M bps UL
TDD-LTE
3GPP,3GPP2 Release9，Category4,up to 112M DL and 10Mbps UL
DC-HPSA+
3GPP,3GPP2 Release8, up to 42Mbps ,category 24，5.76M bps UL
HPSA+
3GPP,3GPP2 Release7, up to 14.4Mbps ,category 10，5.76M bps UL
HSPA
3GPP,3GPP2 Release6, up to 7.2M bps DL,category 7,8，5.76M bps UL
UMTS
3GPP Release4, up to 384 Kbps DL and UL
ID : LDW931
Size: 81.5*25.5*7.5mm
Weight: 16g
Interface
Antenna
Built-in 4G/3G antenna Gain: -1.5 dbi
WIFI Antenna Gain: -1.0 dbi
WIFI Antenna Sensitivity: 72M：-68dBm PER
54M：-68dBm PER
11M：-84dBm PER
Support System
32/64Bit: Win2000/Win2003/XP/Vista/Win7/Win8/Win10
LINUX
Driver
Plug&Play , no driver installation
Language
Multi language(Indonesian,Russian,Portuguese etc)
USB
Standard USB 2.0 high speed, easy USB charger
SIM
Nano SIM,4FF SIM
Power
Input Voltage: 5V/1A, Max Power consumption: ＜2W
Environment
Storage Temperature
'-20˚C～75˚C
Working Temperature
'-10˚C～45˚C
