Wi-Fi Supported Frequency:2.4G & 5G
Length:about12cm
Lan Transmission Rate:Ethernet
Transmission Speed:1200 Mbps
Applicable Network Type:Ethernet
Wireless Protocol:802.11n,802.11ax(802.11ax),802.11a/g,802.11ac
Certification:CE,FCC,RoHS
Package:Yes
Model Number:EP-9651GS
Application:Desktop
Interface Type:PCI Express
Adapter Socket:PCI-E
Kind:Internal
Transmission Rate:5374Mbps
Type:Wireless
Origin:Mainland China
Blue-tooth:5.3/5.2/5.1/4.1/4.0
Interface:PCI-E 1X/4X/8X/16X
Feature1:PCI E Wireless Adapter
Feature2:MU-MIMO
Feature3:5GHz 2400Mbps wifi PCIE Adapter
Feature4:Intel AX210 BT5.3 Wifi Receiver Transmitter
Installation Guidance Video:

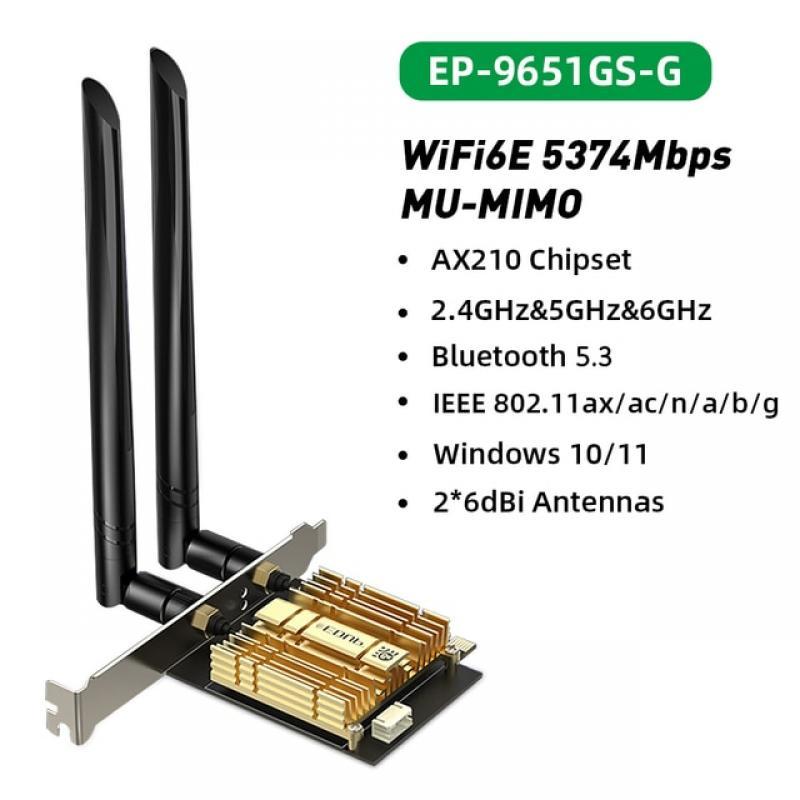

EDUP WiFi6E Intel AX210 PCIE WiFi Adapter 5374Mbps Bluetooth5.3 WiFi Network Card 2.4G/5G/6GHz PCI Express 802.11AX with MU-MIMO for Desktop
Note:
1.If your PC does not have a CD-ROM disk drive, please kindly download the driver from EDUP official website. It is for free.Download link:
https://www.szedup.com/support/driver-download/pcie/
2.The antennas of all the pcie wireless network cards are detachable, and it can be replaced by our magnetic base antennas, click the link:
https://www.aliexpress.com/item/1005003292240651.html
Features:
*5374Mbps pcie Tri band PCIe network card
:Support 2.4GHz/5GHz/6GHz(The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
)
*Wireless WiFi 6E technology
:wide transmission channel makes data transmission more smooth.
*Powerful MU-MIMO
:Greatly improves the overall performance of wireless transmission.
*Support Bluetooth 5.3
: faster connection , more stable, and better anti-interference.
*Complete accessories and simple installation
: the operation is simple and easy to understand, even the technical novice can get started immediately.
*More stable performance and longer service life
: The EDUP brand uses high-quality raw materials and new chips, and has been creating durable products for users, bringing users a better experience.
Specifications:
1.Model:
EP-9651GS
2.2.4G/5G/6G Tri frequency optional, 6GHz band rate up to 2400Mbps,5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps.
3.Supports Cisco CCX.
4.Supports multiple BSSID.
5.The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
6.Package items（Different versions will be different）:
1 * EDUP PCIE WiFi 6E Blue-tooth Network Card
2 * External High Gain Antenna
1 * CD Driver
1 * Small Chassis Baffle
1 * Screwdriver & 2 * Screws
1 * User Manual
EP-9651
1.2.4G/5G/6G Tri frequency optional, 6GHz band rate up to 2400Mbps,5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps.
2.Supports Cisco CCX.
3.Supports multiple BSSID.
4.The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
EP-9651GS Pro
1.2.4G/5G/6G Tri frequency optional, 6GHz band rate up to 2400Mbps,5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps.
2.Supports Cisco CCX.
3.Supports multiple BSSID.
4.The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
5.Antenna:2*6dBi Antennas with magnetic base
EP-9651GS-G Pro
1.2.4G/5G/6G Tri frequency optional, 6GHz band rate up to 2400Mbps,5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps.
2.Supports Cisco CCX.
3.Supports multiple BSSID.
4.The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
5.Antenna:2*6dBi Antennas with magnetic base
AX210 Pro
Model: New Wi-Fi 6E AX210 Pro (AX210NGW);
Interface: M.2 NGFF, Not compatible with M.2:CNVI;
Triband: 2.4GHz / 5GHz (160Mhz)/6GHz;
Speed up to 2400Mbps (The router must on 160Mhz)(802.11ax);
Support Blue-tooth 5.3;
Support MU-MIMO;
Support Windows 10 64bit/Win11, Linux;
EP-9651GS-G
4G/5G/6G Tri frequency optional, 6GHz band rate up to 2400Mbps,5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps.
Supports Cisco CCX.
Supports multiple BSSID.
The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps.
Q&A
Q: Works in motherboard AMD?
A: Yes, it will work in AMD, if not, please update the driver.
Q: Does it have both wifi and bluetooth function?
A: Yes, all the models have wifi and bluetooth function.
Q: I only want to use the wifi, not bluetooth, how can I do it?
A: You can only install the part of wifi card, then install the wifi driver.
Q: The bluetooth doesn't work, what should I do?
A: First of all, please confirm whether the USB Bluetooth cable has been installed, if so, please check if you have successfully connected the Bluetooth 9-pin USB interface. It must be a 9-pin USB interface.
Q: I receive the item without a driver CD, how can I download the driver?
A: You can download the driver from our EDUP official website. It is for free. Download link:
https://www.szedup.com/support/driver-download/pcie/
Shipping and Returns:
Shipping is available from China, Russia and Spain.
Warranty:
Products ordered from China come with a 75-day money-back guarantee.
