5G Wi-Fi Transmission Rate:1300Mbps
Wired Transfer Rate:10/100/1000Mbps
2.4G Wi-Fi Transmission Rate:600Mbps
Wi-Fi Supported Frequency:2.4G & 5G
Supports WPS:Yes
Supports WDS:No
Number of USB Interfaces:1 x USB 3.0
WAN Ports:1 x10/100/1000Mbps
LAN Ports:4
Function:Firewall,VPN
Application:Home
Package:Yes
Standards And Protocols:Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Max. LAN Data Rate:1750Mbps
With Modem Function:No
Type:Wireless
Origin:Mainland China
Certification:CE,FCC
CPU:Dual core 880Mhz
Flash:16MB
DDR3:256MB
Interface:1*GE WAN +4*GE LAN +1*USB3.0
Button:1*Reset +1*Pair+1*Power on-off
Antenna:4*External 5 dBi Spiral copper omnidirectional antenna
Power:12V 1A
Accessories:1*8P8C CAT5 Cable 1*User Guide 1*warranty card
WiFi Speed:2.4G: 574Mbps; 5G:1201Mbps
Default IP:192.168.10.1 or wifi.wavlink.com
Operating mode:Router/Mesh Router
IPV6:Support
USB:USB Samba/USB Storage
Guest WiFi:TouchLink or Enabled on software
DMZ:Support
VPN:PPTP/L2TP
Port Forwarding:Support
Feature 1:WIFI 6 Mesh Router
Feature 2:Gigabit Wireless Internet Router
Feature 3:AX1800 WIFI6 Mesh Router
Feature 4:1.8 Gbps WIFI 6 Mesh Dual Band Wireless Router
Feature 5:Wireless WiFi Router
Feature 6:1.8 Gbps WIFI 6 Every Mesh Dual Band Wireless Router
Wavlink AX1800 WIFI 6 Mesh Router- Dual Band 2.4GHz 574Mbps + 5GHz 1201Mbps Gigabit Wireless Internet Router, Supports 802.11ax/ac/a/n/g/b standards, 880MHZ Dual Core CPU Connection Everything Mesh Router
Product Feature:
1, Complies with
IEEE 802.11ax
/ac/a/n/g/b standards.
2, MU-MIMO TX/RX; MU-OFDMA TX/RX; STBC, LDPC, TX Beamformmer and RX BeamFormee
3, WPA2, WPA2/WPA3 Mix.
4, Simultaneous dual AX bands of 573Mbps@2.4GHz and 1201Mbps@5GHz; backward compatible with AC band of 867Mbps@5GHz, N band of 300Mbps@2.4G.
5, Supports PPPoE, Dynamic IP, static IP access to the Internet.
6,Built-in DHCP server & client with automatic dynamic IP address distribution.
7, Provides
10/100/1000Mbps
Auto-Negotiation Ethernet WAN port and LAN ports.
8, External antennas provide omni-directional stable signal and superior wireless coverage.
9, Cloud APP supports device management functions for easy control.
Specification:
-Antenna:
4x 5dBi High-performance antennas
-2.4G:11AX 573Mbps, 5G:11AX 1201Mbps
-Security: OPEN, WPA2PSK ,WPA2PSK/WPA3PSK MIX
-Support OFDMA, MU-MIMO, BSS Color, IPV 6
-POWER adapter: 100V-240V/50-60Hz; DC12V/1A
Easy to set up and control
Through a few simple steps, you can effortlessly connect to the WiFi of the AC1800 WiFi 6 mesh router and enjoy an ultra-high-speed network environment; and through the cloud APP control, you can easily manage various WiFi settings and Parental Control & QoS, etc.
1. Connect the router to the modem and power supply;
2. Reset the router and turn on the power button;
3. Log in to the router's web management page( the initial password is "admin");
4. Follow the page guide for various settings.

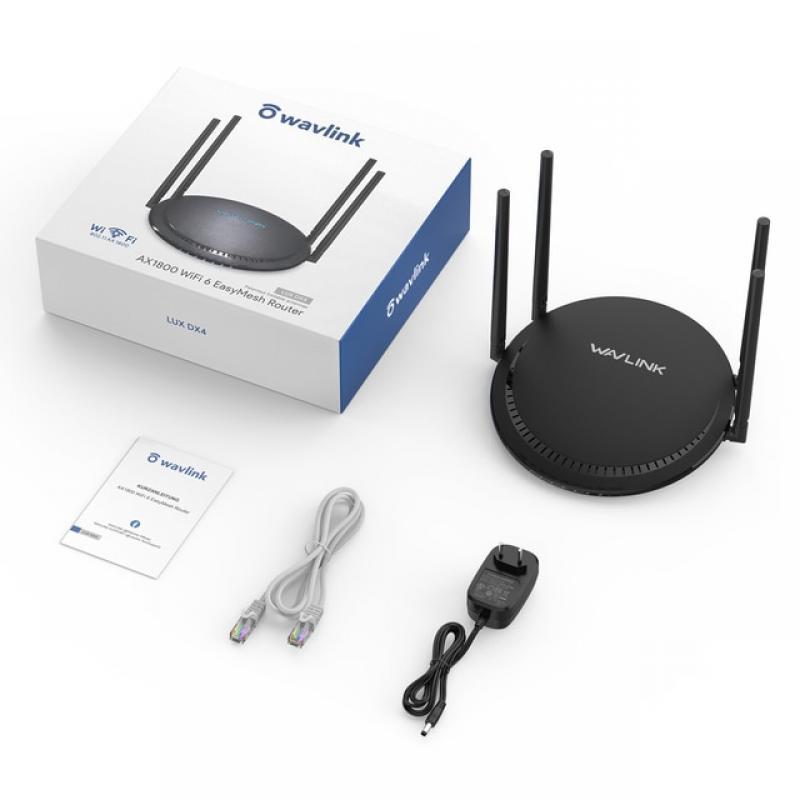

Package
1x
AX1800 WiFi 6 Mesh Router
1x DC 12V/1A Power adapter
1x RJ-45 Ethernet cable
1x Quick Start Guide
