Slice Thickness:0.1-0.4mm
Printing Speed:50-80mm/s
Power Supply:350W Creality Power Supply
Auto Leveling:YES
Language:English
Maximum Printing Speed:120mm/s
Maximum Working Speed:120mm/s
Operating System:Windows/ Mac/Linux
Diameter Temp:260℃
Bed Temp:110℃
Consumables Diameter:1.75mm
Slice Software:Cura, Simplify3D, Prusa slicer
File Format:G-code
Fliament:TPU, PLA, ABS, PETG, WOOD
Precision:0.1mm
Nozzle Diameter:0.4mm
Maximum Print Size:220mm*220mm*250mm
Molding Technology:FDM
Voltage:110-220V
Interface Type:USB
CE Certification:Yes
Color Print Speed:120mm/s
Origin:Mainland China
Certification:CE

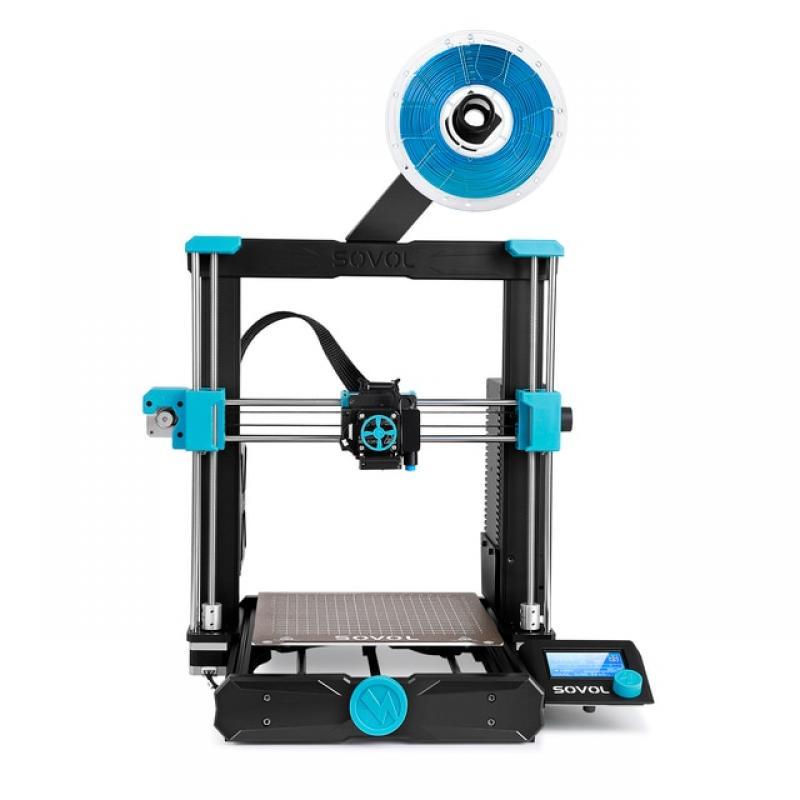

Sovol SV06 3D Printer with All Metal Hotend Planetary Dual Gear Direct Drive Extruder 25-Point Auto Leveling PEI Build Plate 32 Bit Silent Board Printing Size 8.66x8.66x9.84 inch
【Classic I3 Structure Combines with Sovol New Design】
Different from most 3D printers run by wheels in the market, SV06 has a classic I3 structure which avoids wear and tear of wheels and multiple replacements and it is widely applied into industry. We did something new to make it more applicable for household use. Modular design allows you to assemble SV06 within 5 steps easily.
【Planetary Dual Gear Direct Drive】
Sovol self-developed All Metal Direct Drive Extruder with planetary dual gear set, provide SV06 with higher drive ratio and a lighter motor, helps to achieve more accurate extrusion. Add large external knob for easy feeding.
【300℃ High Temp Printing】
All metal Hotend Setup makes it possible to print up to 300℃. No need to deal with PTFE replacement anymore, and even no need to flash the firmware, you can print with different materials better and more easily. ( Enclosure is still needed if you want to print over 260℃.)
【25-points Auto Leveling】
With inductive sensor, detect the metal print bed through 25 points automatically and compensate the unevenness of the heated bed. The fast, smart, precise detection and compensation help you to get the bed leveled perfectly and get an fantastic first layer.
【PEI Build Plate】
The flexible PEI-coated build plate with mesh surface design makes the prints can be removed easily without any tools. 220*220*250mm print size, enough for daily use and household use.
【Self-developed 32-Bit Silent Board】
With TMC2209 drivers, makes the printer works stably and quietly. UART mode is available, so that more modifications can be done easily for advanced users.
【Customer Service】
Sovol 3d printers come with one-year warranty and lifetime technical support. Any question on Sovol SV06 3d printer, just click "Ask a question" through our storefront's page, report an issue through the "Your Orders" page. We will fast respond within 24 hours and try our best to resolve your every issue.
TECHNICAL SPECIFICATIONS
Model: SV06
Interface Language: English
Print Size: 220mm*220mm*250mm
Build Plate Size: 235mm*235mm
Print Method: TF card, USB connection
Layer Thickness: 0.1-0.4mm (Adjustable)
Nozzle DIameter: Standard 0.4mm ( Adjustable)
Recommend Print Speed:
≤80mm/s
Recommend Nozzle Temperature： ≤260c (for beginners) ≤300c (for experienced people who wanna trying high temp material)
Bed Temperature:
≤100c
Material Diameter: 1.75mm
Support File Format: G-code
Machine Weight: 9 kg
Machine Dimension: 496.94mm *387.90mm*610.91mm
Package Size:
525mm*540mm *220mm
Package Weight: 10.4 kg
Voltage: input 115v/230v50/6Hz Output 24v
Operation System: Windows/ Mac/Linux
