Output Power(w):3w-5w
Battery Capacity(mAh):1800
Waterproof / Water-Resistant:No
Material:Plastic
Storage Channel:128
Frequency Range:136-174 &400-520MHz dual band
Dimensions:58*110*32mm
Model Number:UV-5RA
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:1.5km-3km
Color:Black

baofeng walkie taklie UV-5RA Black dual band VHF/UHF handheld two way radio with earpiece
Features:
Dual-band handheld transceiver with display fucntion menu on the display"LCD".
DTMF encoded.
Lithium-ion battery with high capacity.
Commercial FM radio receiver(65MHz ~ 108MHz).
Incorporates 105 codes"DCS" and 50 privacy codes"CTCSS" programmable.
Function"VOX"(voice operated transmission).
Alarm function.
Up to 128 memory channels.
Broadeband(Wide)/Narrowband(Narrow),selectable.
High power/ low (4W/1W) selectable.
Display illumination and programmable keyboard.
Function"beep" on the keyboard.
Dual Watch/dual reception.
Selectable Frequency Step 2.5/5/6.25/10/12.5/25kHz.
Function"OFFSET"(frequency offset for repeater access).
Battery saving function"SAVE".
Timer transmission"TOT" programmable.
Selecting the Scan Mode.
Function Busy Channel Lock"BCLO".
Built-in RX CTCSS/DCS scan.
Built-in LED flashlight.
Programmable by PC.
Specifications:
GENERAL:
Frequency  range: 65MHz-108MHz(Only commercial FM radio reception)
VHF:136-174MHz(RX/TX);UHF:400-480MHz(RX/TX)
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Frequency step: 2.5/5/6.25/10/12.5/25kHz
Antenna impedance: 50Ω
Operating temperature: -20°c to +60°c
Supply voltage: Rechargeable Lithium-Ion DC7.4V 1800mAh
Consumption in standby: ≤75mA
Comsumption in reception: 380mA
Consumption in transmissio: ≤1.4A
Mode of operation: Simplex or semi-duplex
Duty cycle: 03/03/54 min.(RX/TX/Standby)
Weight: 130g(approximate)
TRANSMITTER:
RF power: 4W/1W
Type of modulation: FM
Emission class: 16KΦF3E/11KΦF3E(W/N)
Maximum deviation: ≤±5kHz/≤±2.5kHz(W/N)
Spurious emissions:
RECEIVER:
Receiver sensitivity: 0.2µ V(at 12dB SINAD)
Intermodulation: 60dB
Audio ouput: 1000mW
Adjacent channel selectivity: 65/60dB
Package Contents:
1
×
Baofeng UV-5RA(VHF:136-174MHz/UHF:400-520MHz Dual Band)
1× 7.4V 1800mAh Li-ion Battery Pack
1×  SMA-Female Dual Band Antenna
1× Belt Clip
1× ENG Manual
1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country
1× Earpiece
1× Wrist Strap

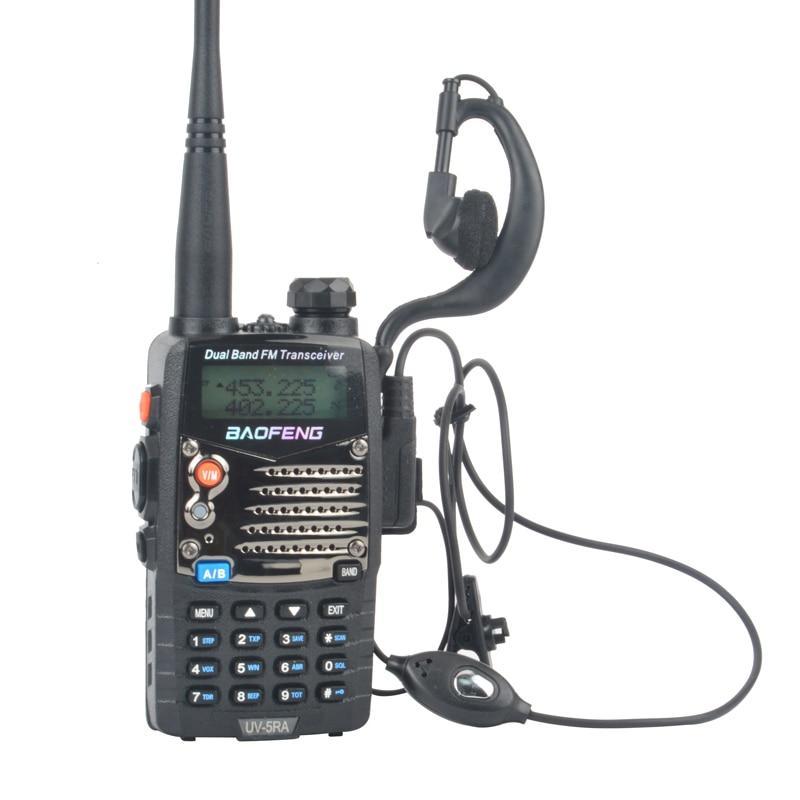

Photos:
