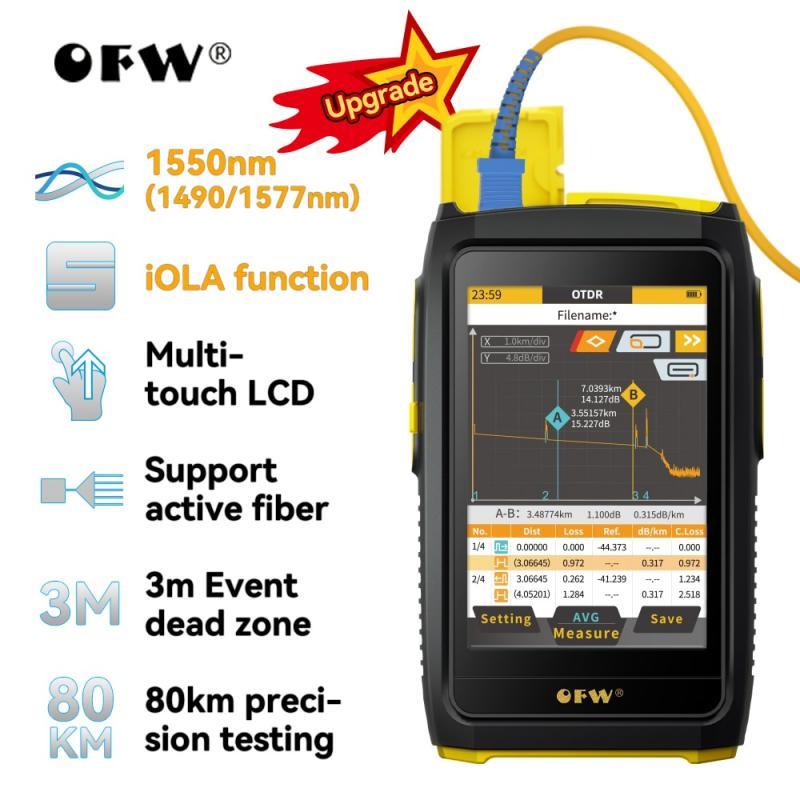

Mini OTDR Active Fiber Live Test 1550nm 20dB Optical Fiber Reflectometer Touch Screen OPM VFL OLS IOLA Event Map Fiber Tester
-4.6 0 Reviews
Size(inch): Please select an item
Color: Please select an item
Available: In Stock
Add To CartBuy Now
Model Number:FWT-100-S5F(iOLA)
Origin:Mainland China
Certification:CE
Dynamic Range:20dB
Test Range:0.1~80km
Wavelength:1550nm
OTDR/OLS Connector:SC/UPC
Pulse Width:5ns~20μs
Measurement Time:5s~180s
Measurement Mode:Real time, average, automatic
Attenuation Dead Zone:12m
Event Dead Zone:Less than 3m
Sampling Point:8000
Input Light Detection:Support
OPM:+26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm universal connector
VFL:10mW, 2.5mm universal connector
LCD:3.5-inch high-definition touch screen
Type-C Cable:Type-C x1
Self-calibration Function:Support
LED Light:Support
Size:117mm*70mm*33mm
Weight:217g
Please note that, product price does not include tax (like customs tax, VAT...).
Observe que, o preço do produto não inclui impostos (como imposto alfandegário, IVA...)
Model: FWT-100
Dynamic Range: 20dB
Test Range:100m~80km
Wavelength: 1550(±20nm)
OTDR/OLS Connector: SC/UPC
Pulse Width: 5ns~20μs
Measurement Time: 5s~180s
Measurement Mode: Real time, average, automatic
Attenuation Dead Zone: 12m
Event Dead Zone: <3m
Sampling Point: 8000
Input Light Detection: Support
Maximum allowable power for light test:
1270nm
1310nm
1490nm
OPM: +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm universal connector
VFL: 10mW, 2.5mm universal connector
LCD: 3.5-inch high-definition touch screen
Type-C Cable: Type-C x1
Self-calibration Function: Support
LED Light: Support
Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Relative Humidity: <90%
Size(H*W*D): 117mm*70mm*33mm
Weight: 217g
